Jumpers and Connectors | 205
5 SATA2 hard drive connectors 1 to 6
for system board 2 (from right to left) 6 SATA2 hard drive connectors 1 to 6
for system board 1 (from right to
left)
7 backplane jumper 8 SGPIO connector A for system
board 1
9 SGPIO connector B for system
board 1
10 CPLD JTAG connector
11 SGPIO connector A for system
board 2
12 SGPIO connector B for system
board 2
13 SGPIO connector A for system
board 3
14 SGPIO connector B for system
board 3
15 CPLD JTAG connector 16 SGPIO connector A for system
board 4
17 SGPIO Connector B for system
board 4 18 backplane power connector for
power supply 2

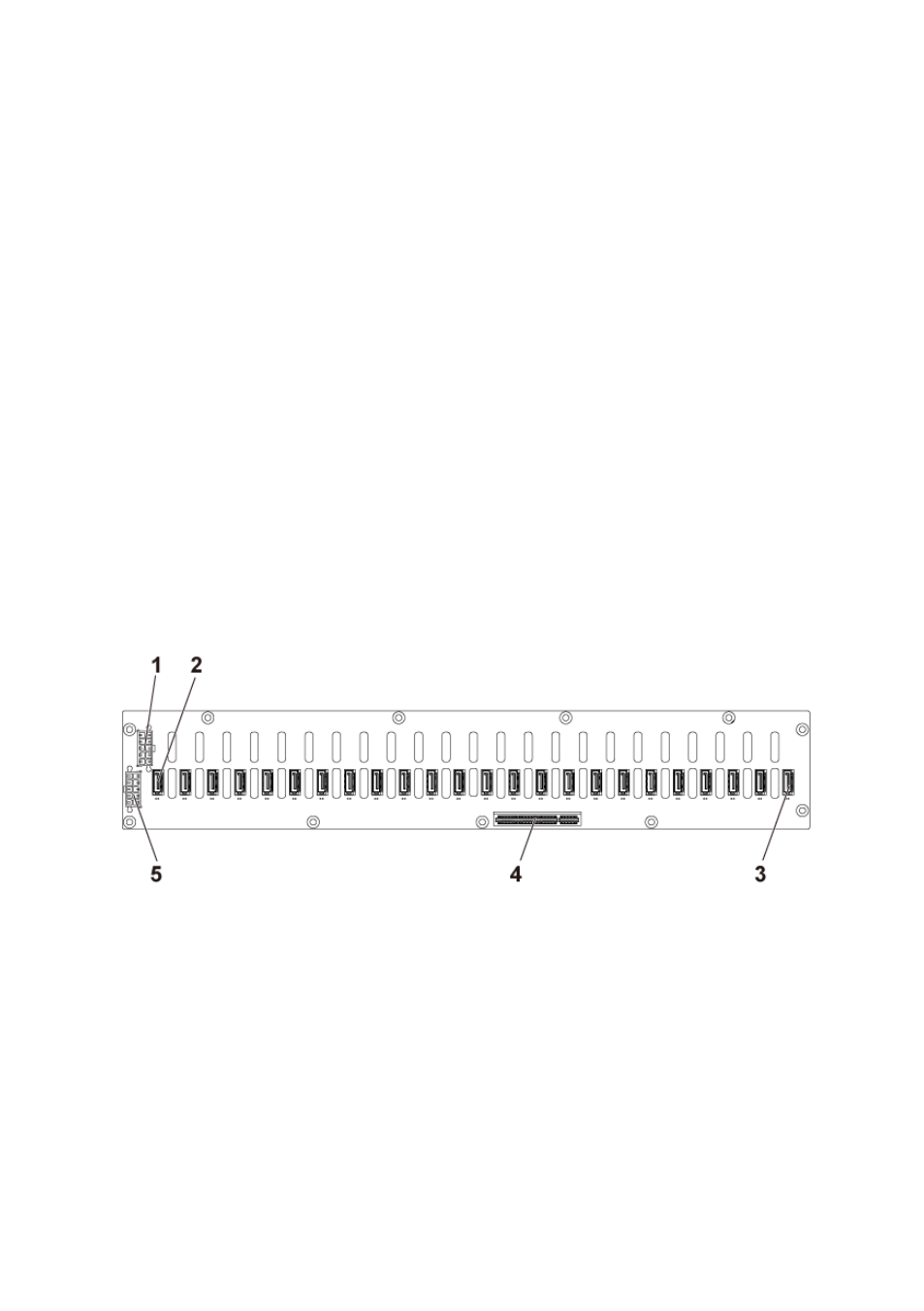

Figure 5-6. Back View of the Backplane-Type 2
1 power supply connector 2 2 HDD connector number 24-port 24
3 HDD connector number 1-port 1 4 PCIex8 connector
5 power supply connector 1
