200 | Jumpers and Connectors
Jumpers and Connectors
System Board Connectors
This section provides specific information about the system jumpers. It also
provides some basic information on jumpers and switches and describes the
connectors on the various boards in the system.

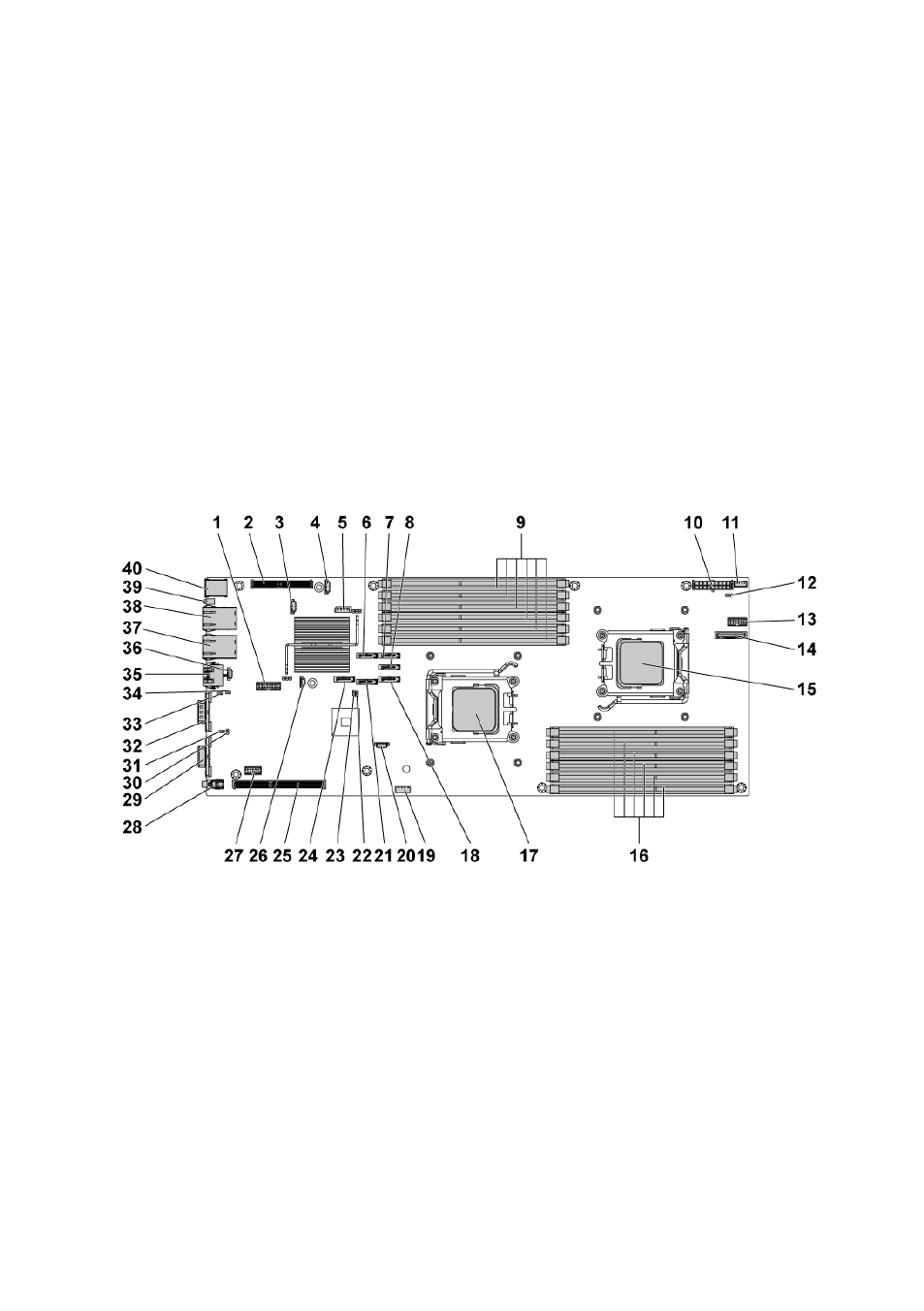

Figure 5-1. System Board Connectors
1 LAN LED connector 2 PCI-E daughter card connector
3 SGPIO connector 2 4 SGPIO connector 1
5 IPMB connector 6 onboard SATA2 connector 5
7 onboard SATA2 connector 3 8 onboard SATA2 connector 2
9 DIMM sockets for processor 1 10 main power connector
11 *BMC ID / ACK connector (reserve) 12 *VR code update connector
13 front panel connector 14 system battery
