Expansion Cards: Dell™ OptiPlex™ GX110 System User's Guide
Overview
Each OptiPlex GX110 chassis can accommodate 32-bit Peripheral Component Interconnect (PCI) expansion cards and 16-bit and 8-bit Industry-
Standard Architecture (ISA) expansion cards, depending on the installed riser board. See Figure 1 for examples of the expansion cards.

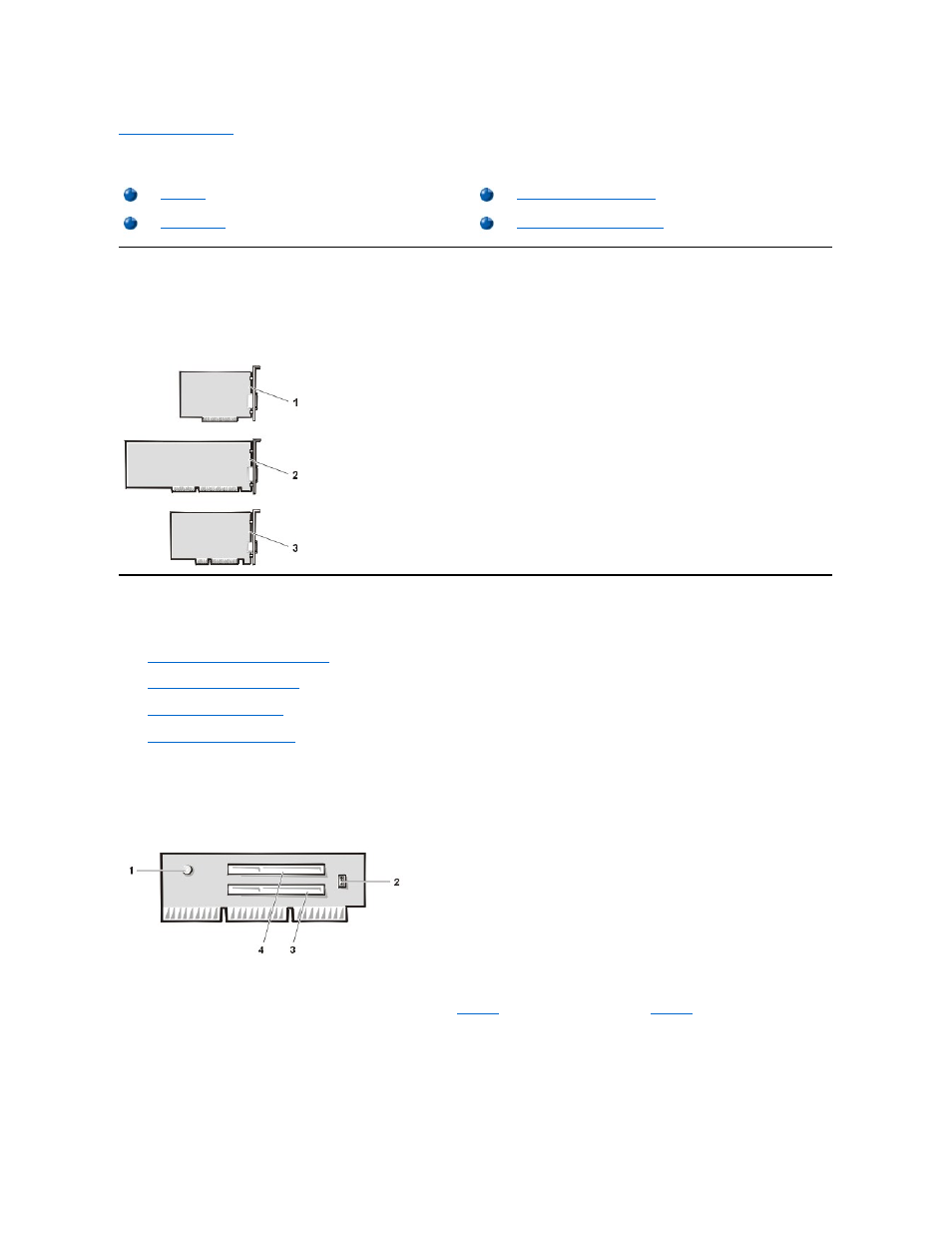

Figure 1. Expansion Cards
Riser Boards
The PCI expansion-card connectors are located on a riser board that differs for each chassis:
l
Small-form-factor chassis riser board
l Low-profile chassis riser board
l Midsize chassis riser board
l Mini tower chassis riser board
Small-Form-Factor Chassis Riser Board
The small-form-factor chassis riser board has two PCI expansion-card connectors (see Figure 2).
Figure 2. Small-Form-Factor Chassis Riser Board
Low-Profile Chassis Riser Boards
The low-profile chassis is available with either a PCI riser board (see Figure 3 ) or a PCI/ISA riser board (see Figure 4 ). The PCI riser board
provides three PCI expansion card slots. The PCI/ISA riser board provides one PCI expansion slot, one ISA expansion slot, and one shared
PCI/ISA expansion slot.
Figure 3. Low-Profile Chassis PCI Riser Board
Overview Installing an Expansion Card
Riser Boards Removing an Expansion Card
1 8-bit ISA expansion card
2 16-bit ISA expansion card
3 32-bit PCI expansion card
1 Auxiliary power indicator (AUX_LED)
2 Remote Wakeup header (WOL)
3 PCI expansion-card connector 1 (PCI1)
4 PCI expansion-card connector 2 (PCI2)
