Your system uses a PS/2-style keyboard. The keyboard cable attaches to a 6-pin miniature DIN connector on the back panel of your computer.
Network Cable Requirements
Your computer's NIC connector (an RJ45 connector located on the back panel) is designed for attaching an unshielded twisted pair (UTP) Ethernet
cable. Press one end of the UTP cable into the NIC connector until the cable snaps securely into place.
Connect the other end of the cable to an RJ45 jack wall plate or to an RJ45 port on a UTP concentrator or hub, depending on your network
configuration.
Controls and Indicators

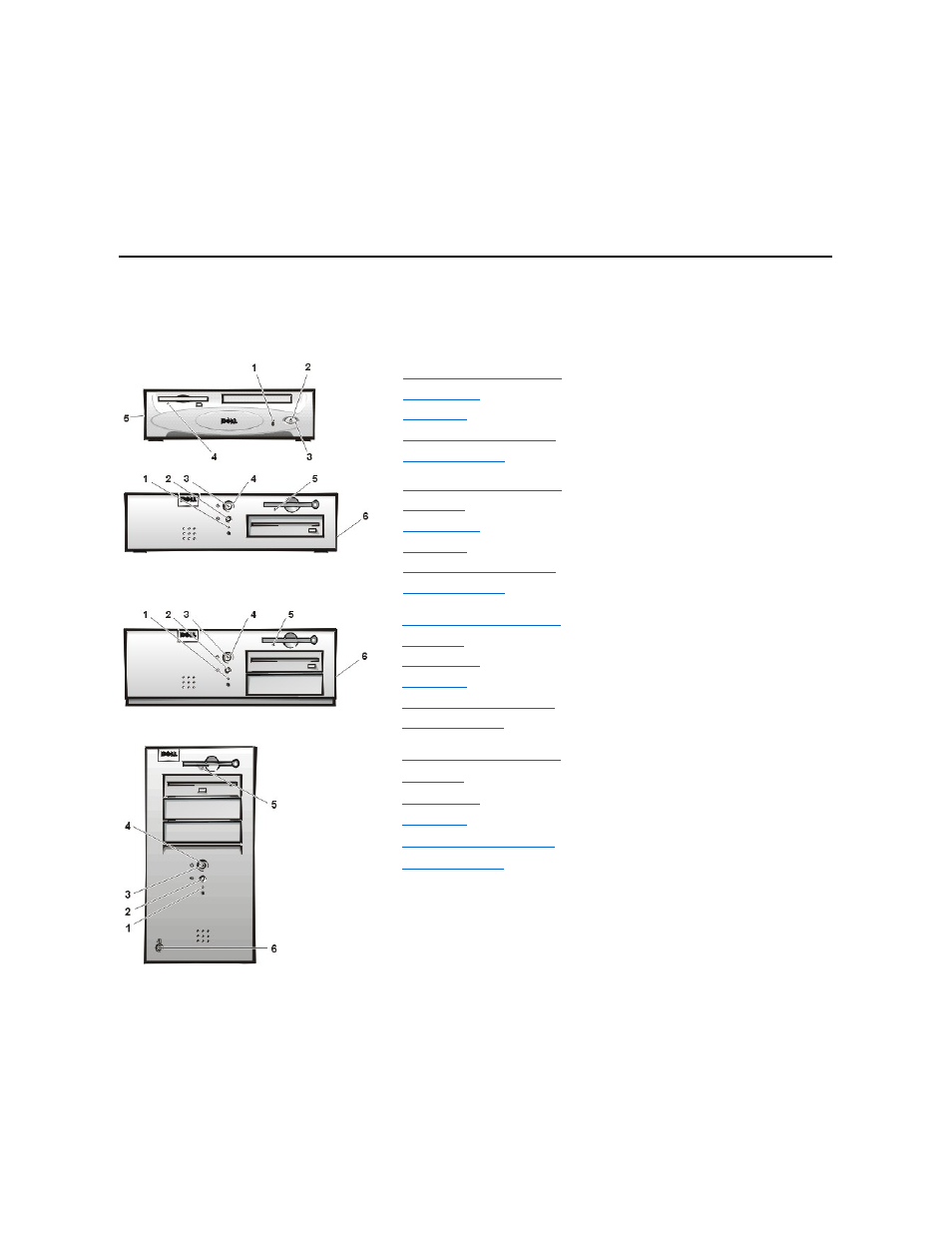

Figure 2 shows the controls and indicators on the front panel of your computer.
Figure 2. Controls and Indicators
Hard-Disk Drive Access Indicator
The hard-disk drive access indicator lights up when a hard-disk drive is reading data from or writing data to the drive.
Reset Button
The reset button allows you to reboot (restart) your system without having to turn the power off and then on again. Rebooting the system in this
manner reduces stress on system components. However, be sure that you have saved and closed all open files and application programs (if
possible) to avoid losing any data. Then perform an orderly shutdown of the operating system (see your operating system documentation for
instructions).
1 Hard-disk drive access indicator
2 Power indicator
3 Power button
4 Diskette-drive access indicator
5 Cover release button
1 Hard-disk drive access indicator
2 Reset button
3 Power indicator
4 Power button
5 Diskette-drive access indicator
6 Cover release button
1 Hard-disk drive access indicator
2 Reset button
3 Power indicator
4 Power button
5 Diskette-drive access indicator
6 Cover release button
1 Hard-disk drive access indicator
2 Reset button
3 Power indicator
4 Power button
5 Diskette-drive access indicator
6 Cover release button
