25P Series Press Wheel Adjustment
25 Series press wheels have three adjustments:
Refer to Figure 115
a. Down pressure (shown at maximum)
b. Wheel stagger (shown staggered)
c. Centering (see Figure 117 on page 84)
Press Wheel Down Pressure
Handle
sets down pressure, which may need adjust-
ment for different soil types and field conditions.
• Relax the handle forward (in the direction of travel) for
decreased down pressure.
• Pull the handle back for increased down pressure.
Press Wheel Stagger
The factory stagger setting has been found optimal for
residue flow. If your conditions, such as wet soil or shal-
low planting, appear to require even press wheels, you
might try one row before re-configuring the entire planter.
To change the stagger:
Refer to Figure 116
1.
Raise the planter and install the lift assist cylinder
locks. See “Lift Cylinder Lock-Up” on page 29.
2. Remove the bolt , nut and lock-washer for the
left press wheel .
3. Move the spacer and wheel to the forward of
the two mounting holes at .
4. Re-install the bolt, lock washer and nut. Tighten.
Press Wheel Centering
If one press wheel is running in the seed trench, or the
wheels are not centered over the trench, the angle
of
the press wheel assembly can be adjusted as follows:
Refer to Figure 117
1.
Determine how far, and in which direction, the press
wheel assembly needs to move to center the wheels.
2. Raise planter and install lift assist cylinder locks. See
“Lift Cylinder Lock-Up” on page 29.
3. Loosen the
1 ⁄
2
in hex-head bolts and .
4. Turn the hex head cam under the forward hex
head jam bolt , and move the required amount.
5. Tighten both hex-head bolts and .
If press wheel adjustments do not provide satisfactory
furrow closing, your conditions may require alternate
press wheels. A variety of wheel assemblies are avail-
able. Consult your Great Plains dealer.

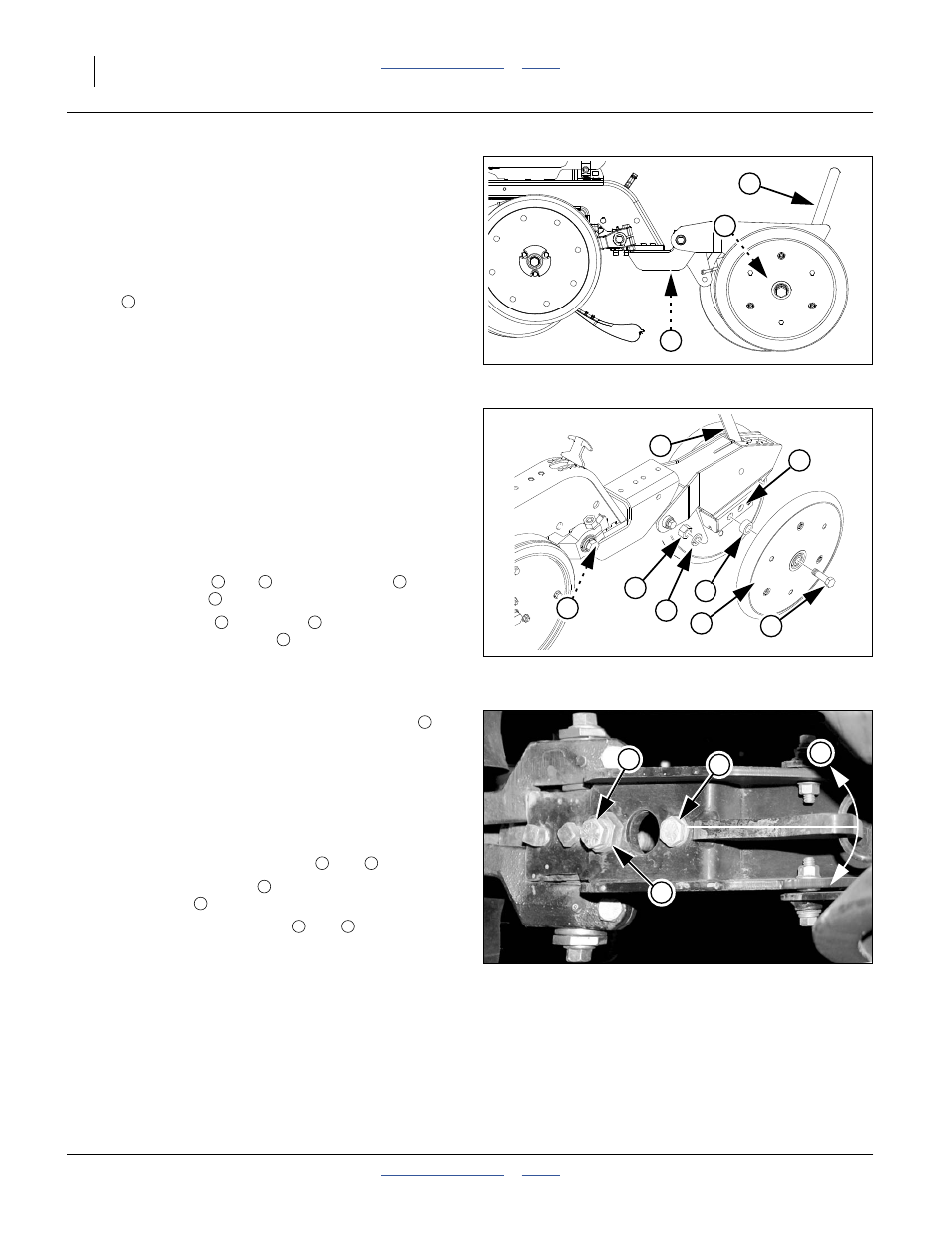

Figure 115
Press Wheel Adjustments
25118
a
c
b
a
Figure 116
Press Wheel Force & Stagger
22907
a
4
5
3
2
c
1
6
1 2 3
4
5 4
6
Note: Do not loosen the square-head bolts forward of the
hex-head bolts.
Figure 117
Press Wheel Centering
(View from beneath opener)
25277
9
8
7
c
7
8 9
c
9
8 9
