4. Release the upper latch and swing the drive mount
away from the meter.
Refer to Figure 98
5.
Lift up, then back, and remove the meter.
Refer to Figure 99
6.
While the meter is removed, take time to inspect the
meter drive chain
, idlers and drive sprocket ,
and perhaps perform the periodic chain lubrication.
Meter drive chain idlers are spring-loaded, and
require no adjustment for chain slack.

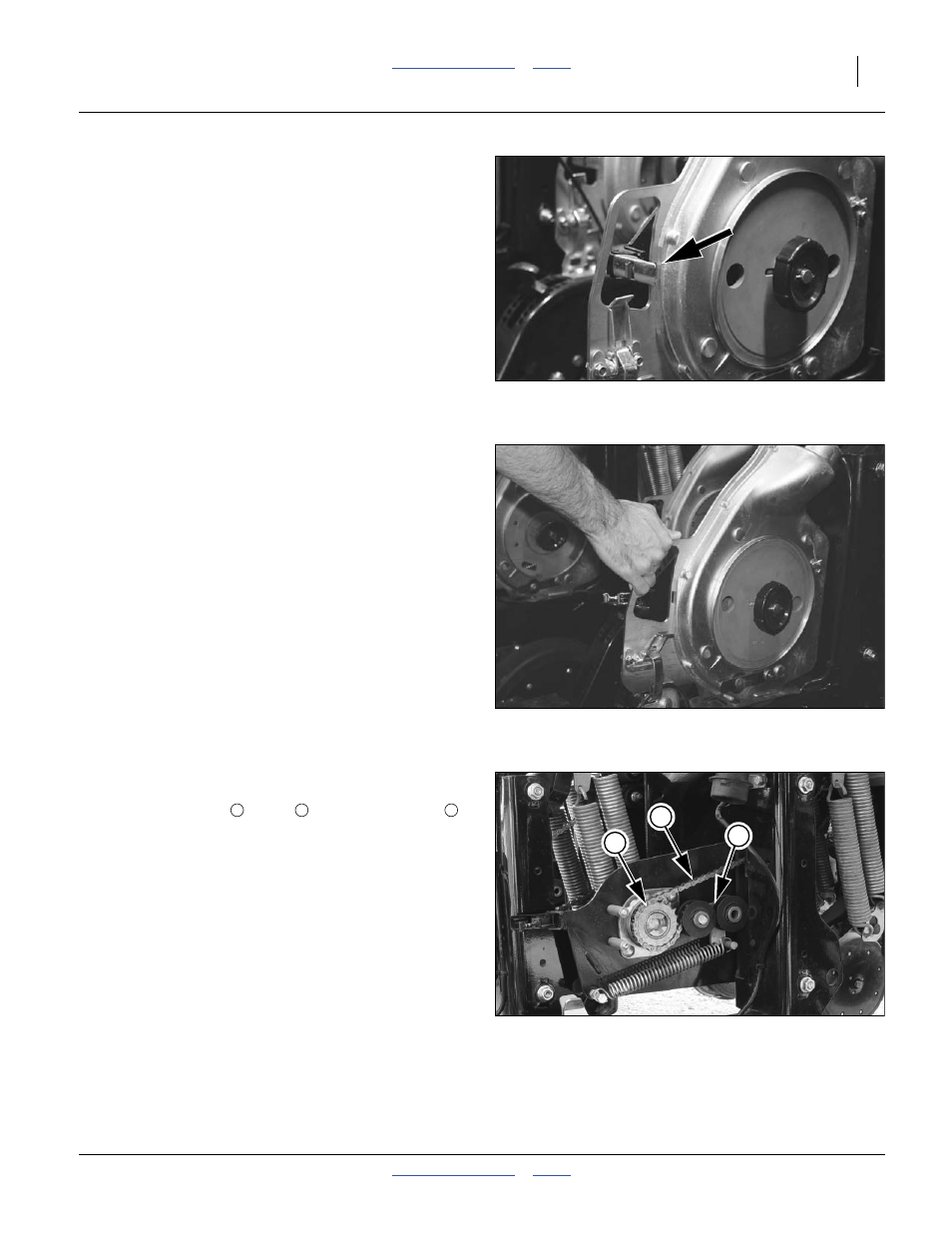

Figure 97: 10HD, 25P:
Upper Meter Latch
22911
Figure 98: 10HD, 25P:
Singulator Meter Removal
22912
Figure 99: 10HD, 25P:
Inspect Meter Drive
21917
1
3
2
1 2 3
