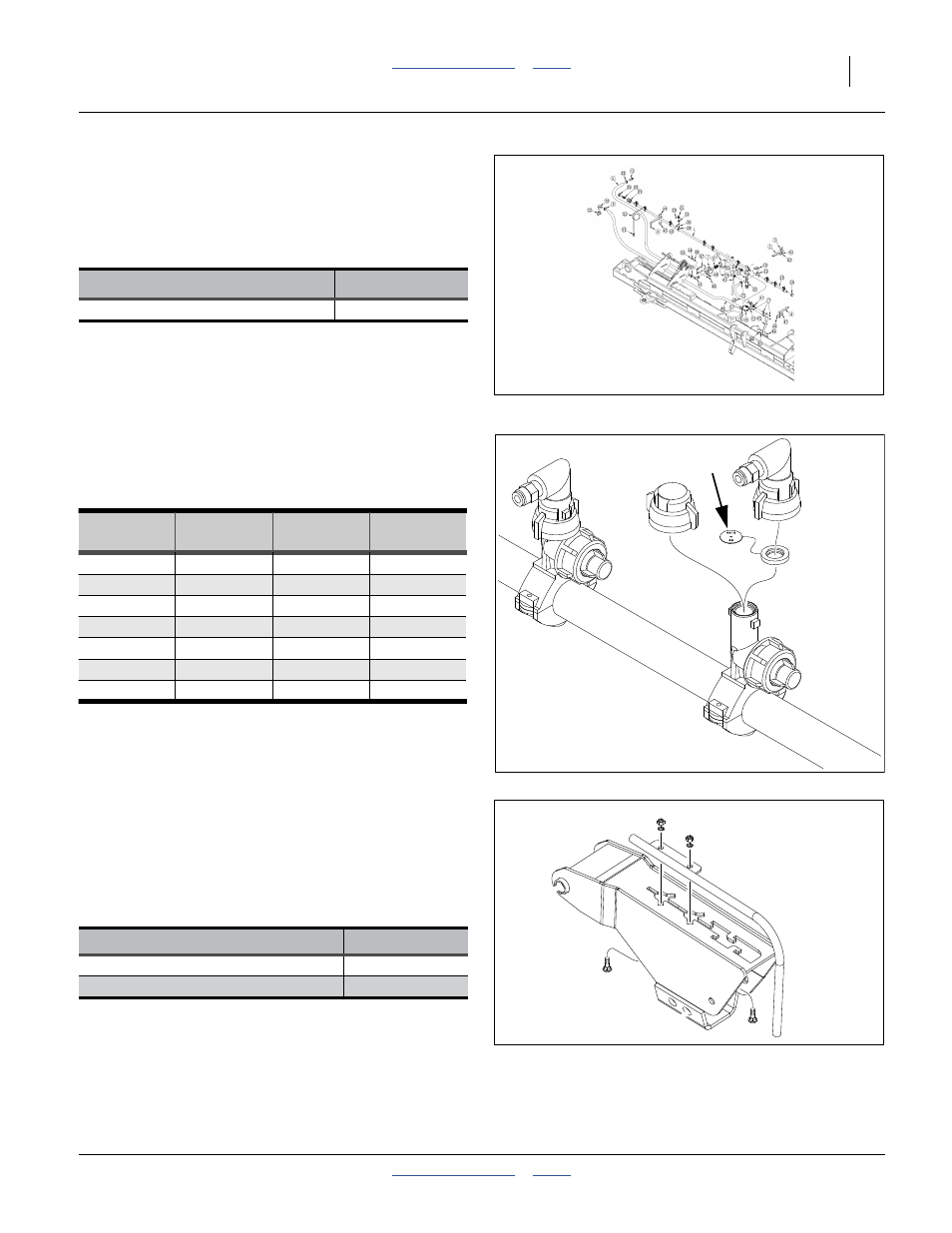

Type 3 Fertilizer Manifold
The Type 3 system includes all plumbing from the rows
to the triple bulkhead at the hitch weldment. The boom
system has separate connections and sections for each
planter section (left, center, right), and is compatible with
point-row operation.
The system does not include, and requires:
• off-planter pump, usually provided by the tank cart
• 401-467A trailer hitch weldment (page 120)
• off-planter tank.
Fertilizer Orifice Plates
The manifold systems include size 28, 34 and 48 plates.
To order alternate plates, use the following part numbers.
Order one per row unit.
High-Rate Dribblers
Note: For use only with 25 Series openers.
Dribblers apply liquid fertilizer slightly to the side of the
closed furrow behind the press wheel. Dribblers are
available in left and right hand offsets, for use on twin
rows. Order one dribbler per row.
Description Initial Order
Type 3 Fertilizer Manifold Kit 407-345A
29308
29984
Orifice Part Port Port
Size Number Diameter Area
20 832-052C 0.020 in 0.20 mm²
28* 832-056C 0.028 in 0.40 mm²
34* 832-053C 0.034 in 0.59 mm²
48* 832-054C 0.048 in 1.17 mm²
59 832-057C 0.059 in 1.76 mm²
80 832-055C 0.080 in 3.24 mm²
98 832-059C 0.098 in 4.87 mm²
29993 * Sizes standard in many fertilizer bundles.
Check your accessories before ordering.
Option Packages Part Number
Fertilizer Dribbler Assembly, RH 204-131A
Fertilizer Dribbler Assembly, LH 204-132A
27174
