Installing Flow Gate
Rice seed wheels require a Flow Gate instead of a meter
slide. See page 131 for ordering information.
1. Remove meter wheel (see page 80).
Refer to Figure 139 (which depicts a demonstration meter
with a transparent housing)
2.
Remove cotter pin securing retaining pin at top of
meter slide.
3. Remove retaining pin and slowly remove the
817-405C meter slide, being sure to capture the
three (3) springs tensioning the slide (2 at top
,
1 at bottom ). Save the old pins, slide and springs
for future use with the removed wheels.
Refer to Figure 140 (which depicts a demonstration meter
with a transparent housing)
4.
Install the 817-529C Flow Gate in the same posi-
tion as the meter slide, but without springs.
5. Secure the Flow Gate with the retaining pin and cot-
ter pin supplied with the Flow gate.
6. Install the rice wheel.

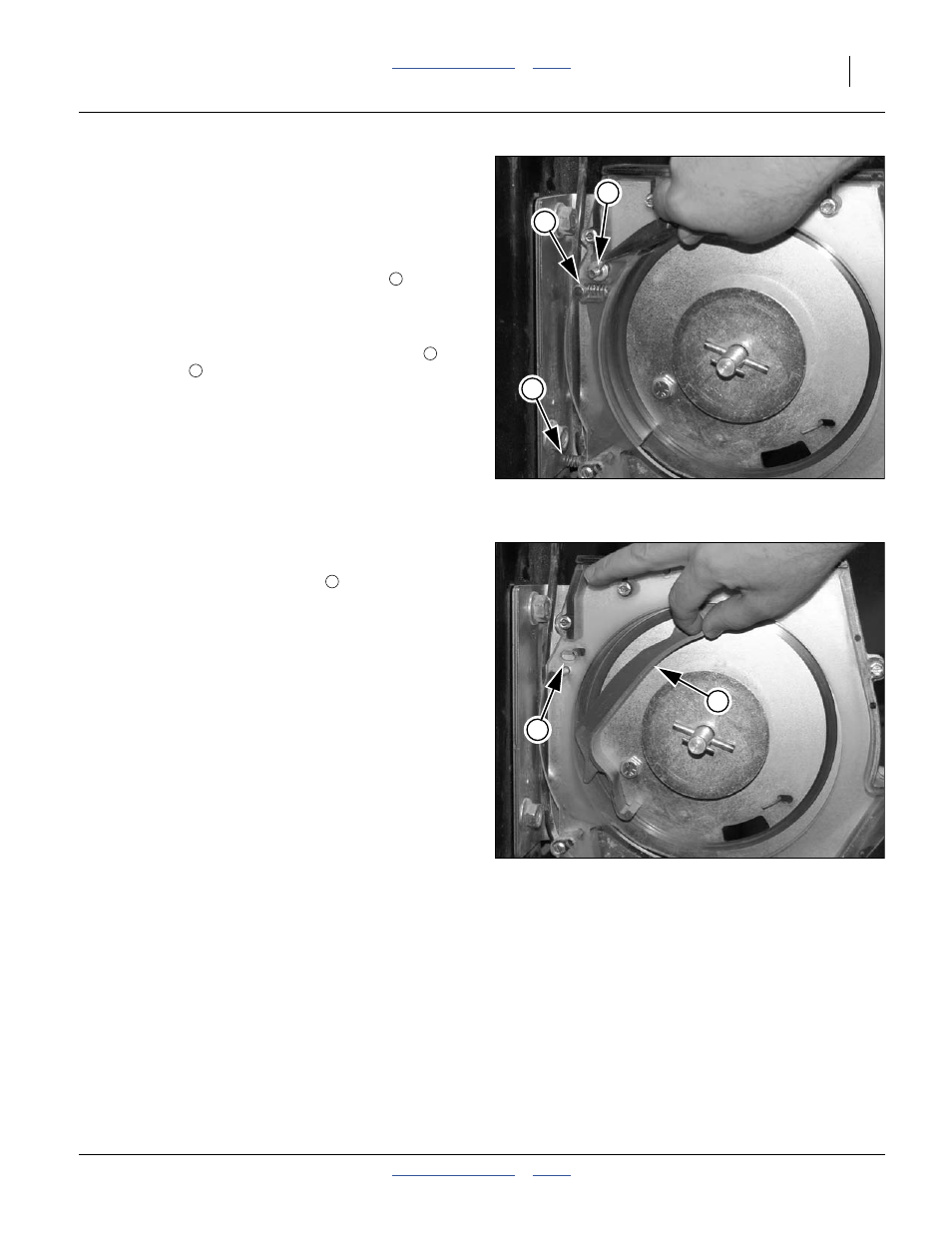

Figure 139
Remove Meter Slide
20498
1
2
3
1
2
3
Figure 140
Install Flow Gate
20499
4
5
1
