26 YP3010HDP/3020P/3025 Table of Contents Index Great Plains Manufacturing, Inc.
401-703M Table of Contents Index 2013-09-09

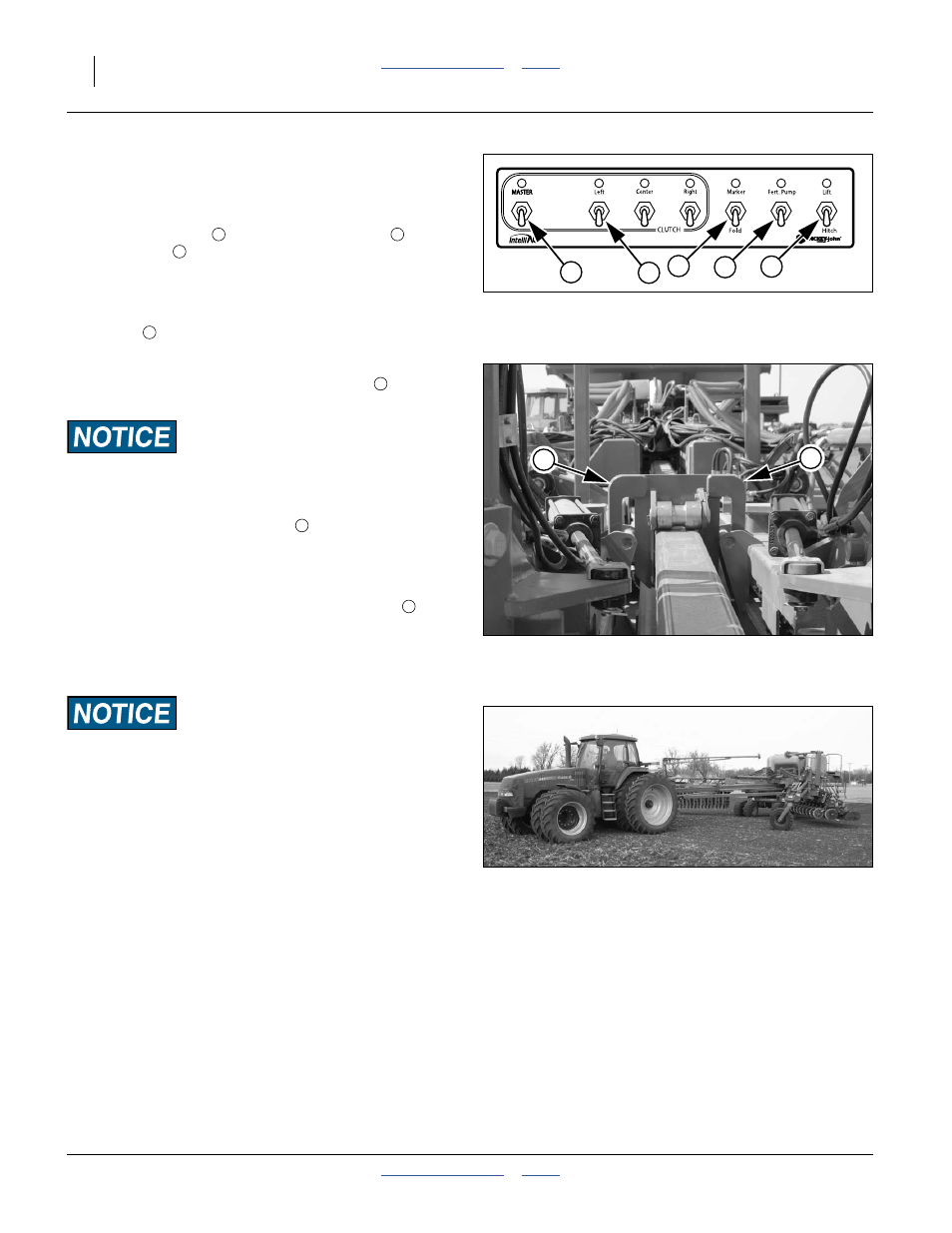

1. Move to level ground.
Refer to Figure 16
2.
On the Clutch Folding Module (CFM), set the follow-
ing switches to OFF (down):
MASTER switch
in the CLUTCH cluster , and
Fert.Pump .
3. If the folded planter is lowered, raise mainframe (see
“Raising/Lowering Planter” on page 27).
4. If equipped with hydraulic hitch, the CFM Lift/Hitch
switch
must be set to Hitch.
5. Raise tractor 3-point hitch or extend (raise) planter
hydraulic tongue until tongue wing locks
rise and
disengage.
Machine Damage Risk:
If hitch is not raised, wing locks will remain in transport
hooks. Wings will not unfold, and machine damage is possible.
6. Set CFM Marker/Fold switch to Fold. LED above
switch blinks continuously.
7. Activate (normally Retract) tractor hydraulic circuit to
unfold wings.
8. Operation is complete when the tongue lock
engages.
Refer to Figure 19
Machine Damage Risk:
Do not operate planter when unfolded unless tongue lock is
engaged.
9. When fully unfolded, set Marker/Fold hydraulic circuit
to Neutral.
10. For imminent lowered operations, remove lift cylinder
locks (see “Lift Cylinder Lock-Up” on page 29).
2
3 4 5
Figure 16
Clutch Folding Module
26111
1
1 2
3
5
Figure 17
Unfold: Wings Locked
29243
5 5
5
4
6
Figure 18
Planter Unfolding
29279
