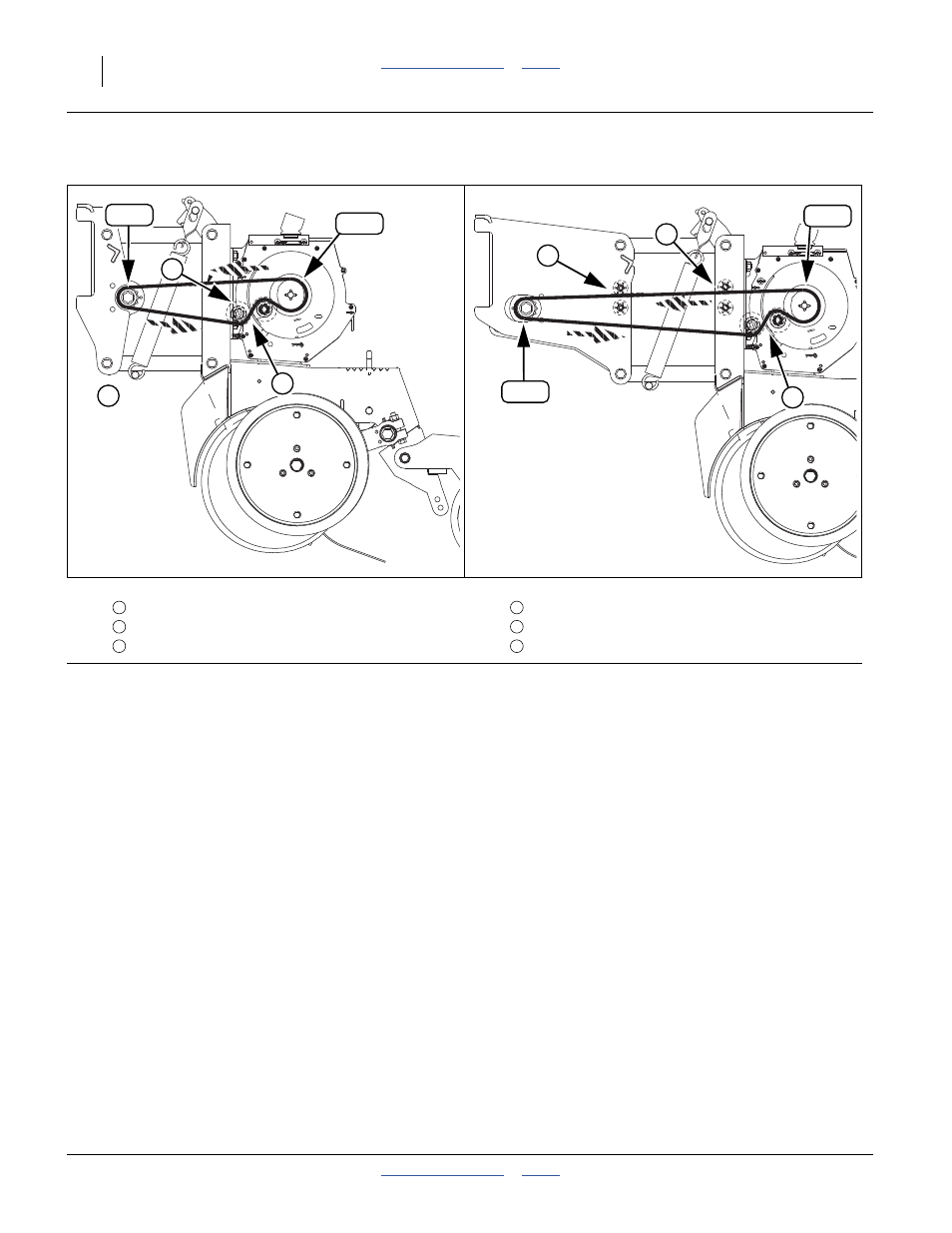

20 Series Meter Drive Chain
20P: Meter Drive (Front type)
Note: No idlers on mount.
top chain passes under single idler on shank
be sure to reconnect idler spring
20P: Meter Drive (Rear type)
Note: be sure to reconnect idler spring
top chain passes between 2 idlers at mount
top chain passes between 2 idlers at shank
1
2
0
26238
19T
12T
4
3
2
26239
12T
19T
0
1
2
2
3
4
