Marker Extension
Prior to first use, and if row spacing is changed (including
locking up row units for single-row operation on a
twin-capable planter), set and check where the mark is
made on each side relative to the outside row units
(whether the outside rows are in use or not).
1. Move the planter to a location where both markers
may be safely unfolded. Unfold the planter. Lower
the planter. Unfold one marker.
2. Find the suggested initial marker Extension in the
tables.
Refer to Figure 160 and Figure 161
3.
Measure out the Extension distance from the cen-
ter-line of each outside end row unit. Do not measure
to center of row pair.
4. Mark the ground at this point.
5. To adjust marker width, loosen nuts on U-bolts .
Move marker disk tube in or out to get the proper
adjustment. Tighten nuts .
6. Repeat step 3 through step 5 for the other side.
7. With the planter still lowered, drive forward a few feet
for each side.
8. Check mark locations. Adjust to obtain table value.

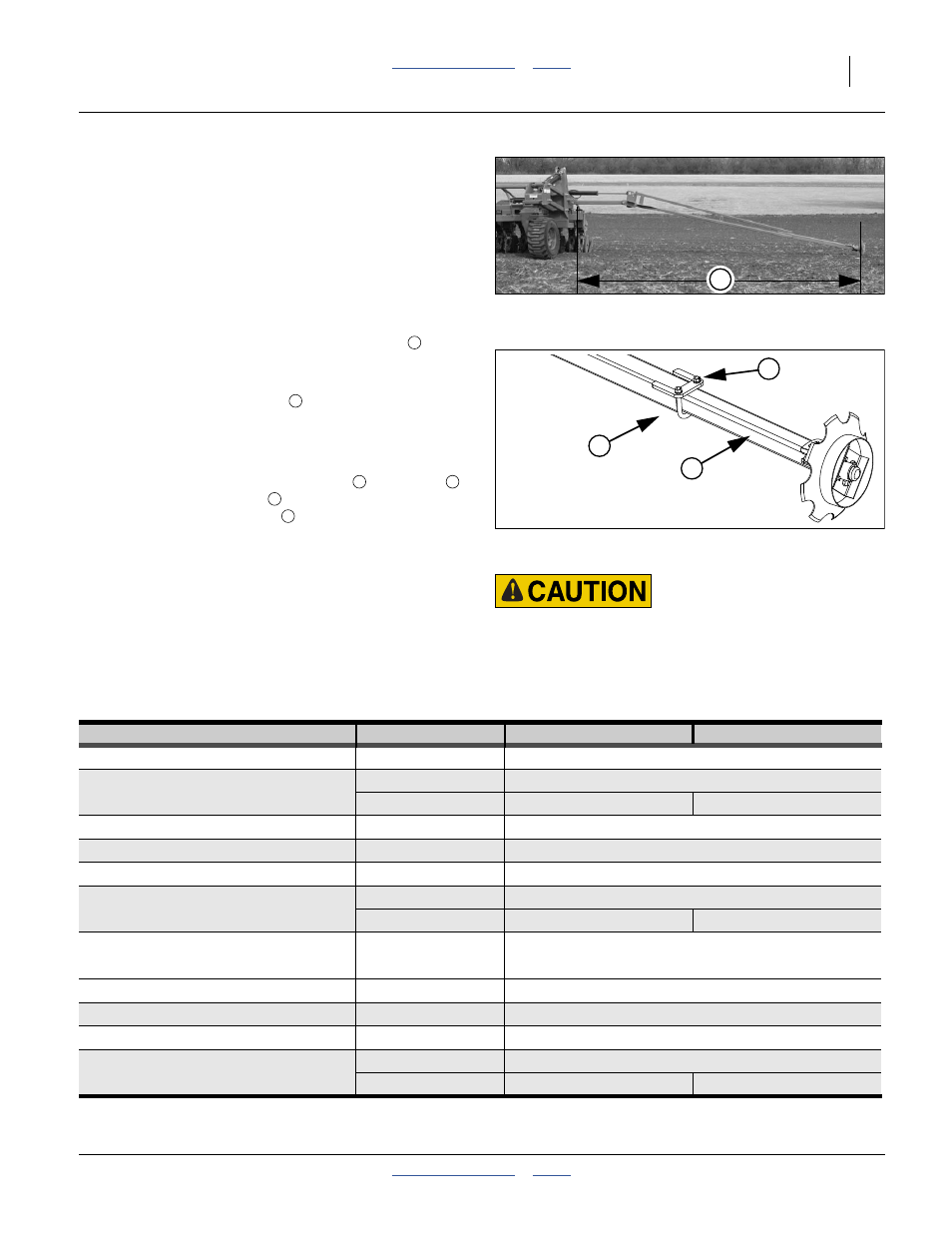

Figure 160
Marker Extension
29301
E
Overhead Sharp Object Hazard:
You may be injured if hit by a folding or unfolding marker.
Markers may fall quickly and unexpectedly if the hydraulics
fail. Never allow anyone near the planter when folding or
unfolding the markers.
Figure 161
Marker Extension Adjustment
26055
1
2
3
E
E
1 2
3
1
Planter Model Spacing Used Left Extension Right Extension
YP3025-1230 30in Single 195.0 in. (495.3 cm)
YP3025-16TR36 36in Twin 158.0 in. (401.3 cm)
*as YP3025-0836 36in Single 182.0 in. (462.3 cm) 166.0 in. (421.6 cm)
YP3025-1820 20in Single 190.0 in. (482.6 cm)
YP3025-2315 15in Single 180.0 in. (457.2 cm)
YP3025-2415 15in Single 187.5 in. (476.3 cm)
YP3025-24TR 30in Twin 191.2 in. (485.6 cm)
*as YP3025-1230 30in Single 215.2 in. (546.6 cm) 199.2 in. (505.9 cm)
10in Single 185.0 in. (469.9 cm)
YP3010HDP-4475 7.5in Single 183.8 in. (466.7 cm)
YP3025-1270 70cm Single 455.0 cm (179.1 in.)
YP3025-2335 35cm Single 420.0 cm (165.4 in.)
YP3025-24TR70 70cm Twin 395.6 cm (155.8 in.)
*as YP3025-1270 70cm Single 506.3 cm (199.3 in.) 465.6 cm (183.3 in.)
* Presumes opposing passes and no hitch offset in use.
YP3010HDP-3610, YP3020P-3610,
YP3025-3610
