An adjuster cam

sets down pressure individually for

each row unit. This is useful for penetrating hard soil and
planting in tire tracks. For best results always adjust trac-
tor tires so they are not ahead of 30in or 70cm rows.

Refer to Figure 76

Use only enough down pressure to open the furrow and
maintain proper soil-firming over seed. Excessive down
force leads to premature wear on row unit components,
uneven seed depth and gauge wheel slippage.

Refer to Figure 75 (shown at cam setting 1),
Figure 76
and Figure 77
To adjust down pressure, use a 1

1

8

in (29mm) open end

wrench or the tool

stored under the walkboard.

1.

Raise the planter. Although this adjustment can be
made with the planter lowered, the springs will be in
tension, causing more effort, and the optional
Row-Pro™ system might be active, and fighting you.
The extra force required might also damage tools.

2.

Install lift cylinder locks.

3.

Put tractor in Park and shut it off.

4.

Position wrench on the fixed nut

near or slightly

forward of vertical.

5.

Pull upper spring link

back.

6.

Move the adjustment cam

to the new setting on

the spring adjust bar

.

Note: Do not set all rows higher than notch 4. Using high

settings across all rows causes uneven planting.
Individual rows may be set higher if running in tire
tracks.

Note: With the optional Row-Pro™ system, do not use

higher cam settings for rows in tire tracks unless
there is actual need. If these rows do not need the
extra force, the cam setting could imbalance the
Row-Pro™ system.

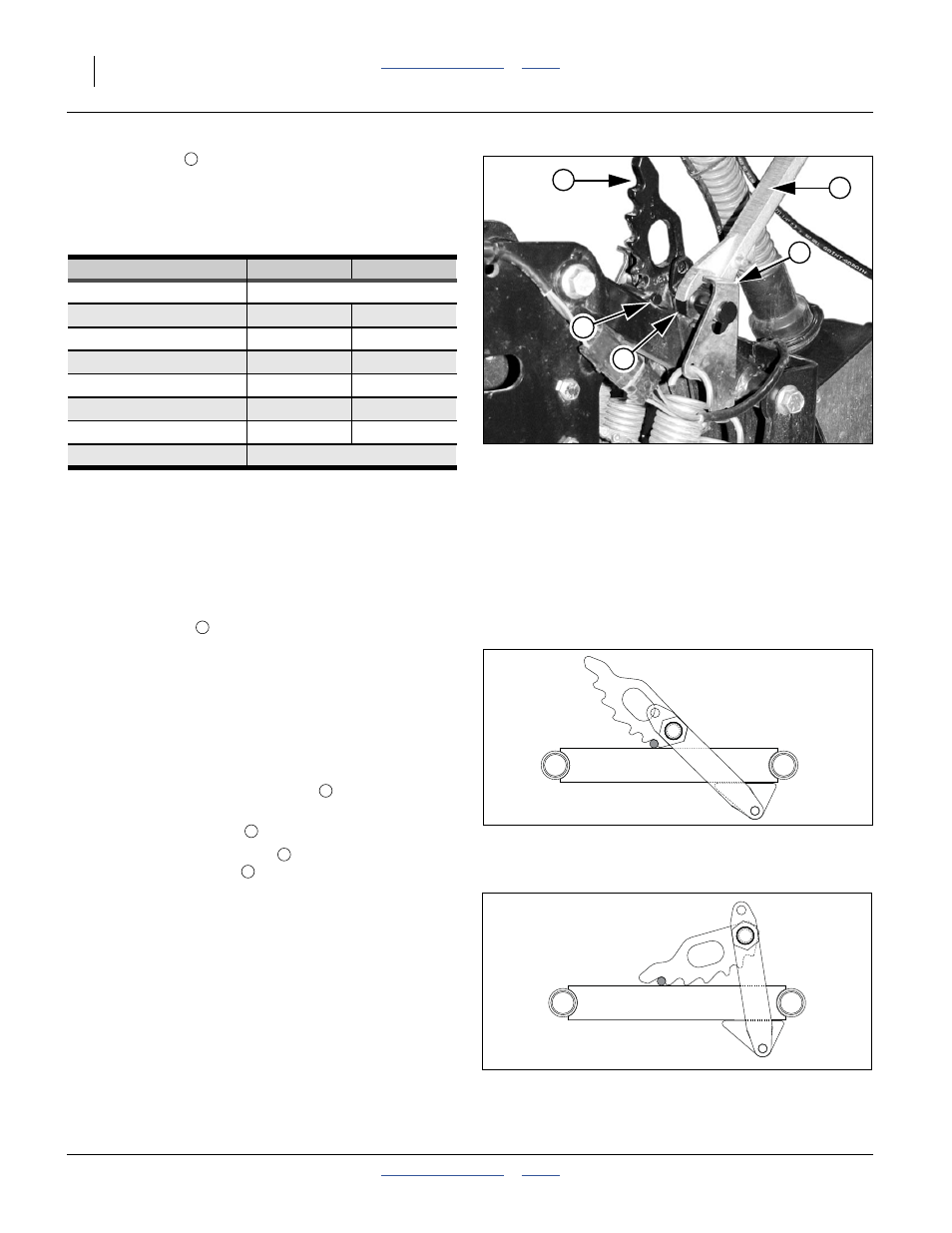

Figure 75

25 Series Row Unit

Spring Adjustment

25268

2

3

5

4

6

2

Cam Notch

Pounds

Kilograms

zero (out of notch)

Lock-Up & Maintenance

one

345

155

two

370

170

three

400

180

four

450

205

five

500

225

six

550

250

tip

Do Not Use

31454

3

Figure 76

Row Unit Minimum Cam (1)

27065

4

5

2

6

Figure 77

Row Unit Maximum Cam (6)

27065
