Fertilizer Systems
The YP3010HDP/20P/25 supports supply and distribu-
tion systems for fertilizer application of one or two liquid
materials:
• one or two independent boom systems are supported
• zero, one or two planter mounted ground-drive pumps
can drive the boom systems
• on-board 400 gallon tanks (2x200 gal./1500 liters
total), relying on a planter-mounted ground-drive
pump and Type 2 manifold.
• customer-provisioned pull-behind cart and cart pump,
relying on Type 3 manifold,

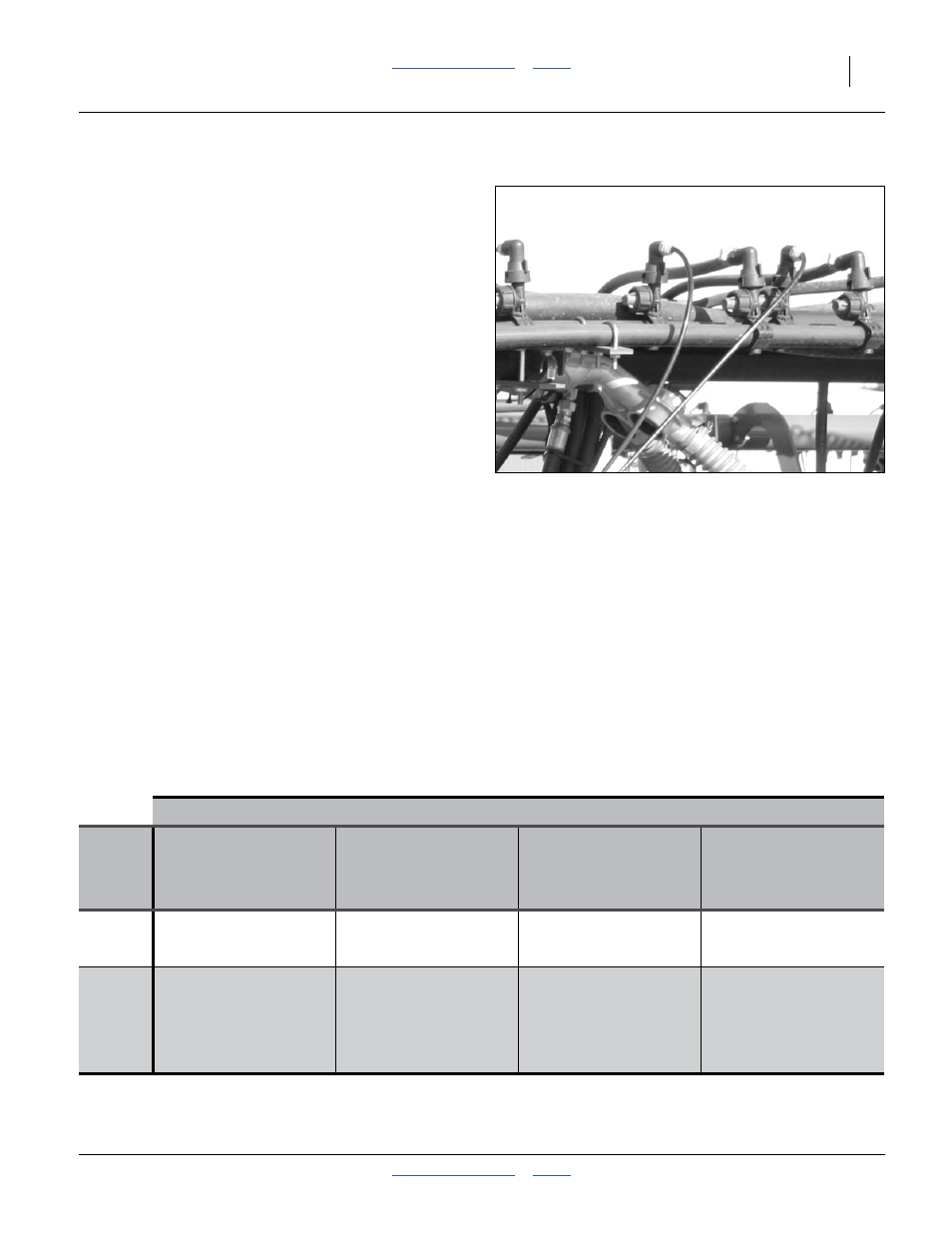

Liquid Fertilizer Systems
Boom (manifold) systems are factory-installed. All booms
have the same number of outlets. Unused outlets are
capped on wider row spacings.
The Type 3 boom is separately plumbed for each of the 3
planter sections, and relies on an off-planter pump and
supply manifold.
The Type 2 boom has a single inlet, and is optimized for
use with a planter-mounted ground-drive pump. The
base Type 2 system is plumbed to the on-board tanks.
The 407-243A kit extends it to the rear hitch, for use with
a passive tank on a trailing cart.
When a trailing tank cart is used, the Trailer Hitch Weld-
ment is also required.
For operations, see the Seed Rate manual.
Liquid System Configurations
Order one each (except where noted) of the parts listed
for your configuration.
Material Supply Systems
Delivery
Systems
On-Board Tanks,
1 On-Board Pump
No Cart
-
On-Board Tanks,
1 On-Board Pump,
Cart with 1 Tank,
1 Cart Pump
No On-Board Tanks,
No On-Board Pump,
Cart with 1 Tank,
1 Cart Pump
No On-Board Tanks,
1 On-Board Pump,
Cart with 2 Tanks,
1 Cart Pump
Single
Boom
407-346A T2 Boom
407-213A Pump
407-244A Tanks
407-345A T3 Boom
401-467A Hitch
407-345A T3 Boom
401-467A Hitch
Twin
Boom
407-346A T2 Boom
407-213A Pump
407-244A Tanks
⎯⎯⎯⎯⎯⎯⎯⎯
407-345A T3 Boom
401-467A Hitch
407-346A T2 Boom
407-213A Pump
407-243A Inlet Kit
⎯⎯⎯⎯⎯⎯⎯⎯
407-345A T3 Boom
401-467A Hitch
26077
