Chapter 2 Installation and Wiring
This unit is equipped with an AC mains fuse internally. If this fuse should blow, it generally indicates a serious
problem with the Recorder. THE FUSE SHOULD NOT BE REPLACED BY AN OPERATOR. The fuse is a
quick acting 5 x 20mm type rated at 2.0 Amps 250 VAC (~).
An optional AC mains plug retention clip is available - contact the factory.
2.3.3 Signal Input Wiring
Signal input connections. Hazardous potentials may exist on signal input terminals
which are floating with respect to case ground. These hazardous potentials may be
on the rear terminal panel of your instrument. Any voltage potential at the signal
source will exist on the instrument’s respective signal input terminal (i.e. power
generator stator winding).

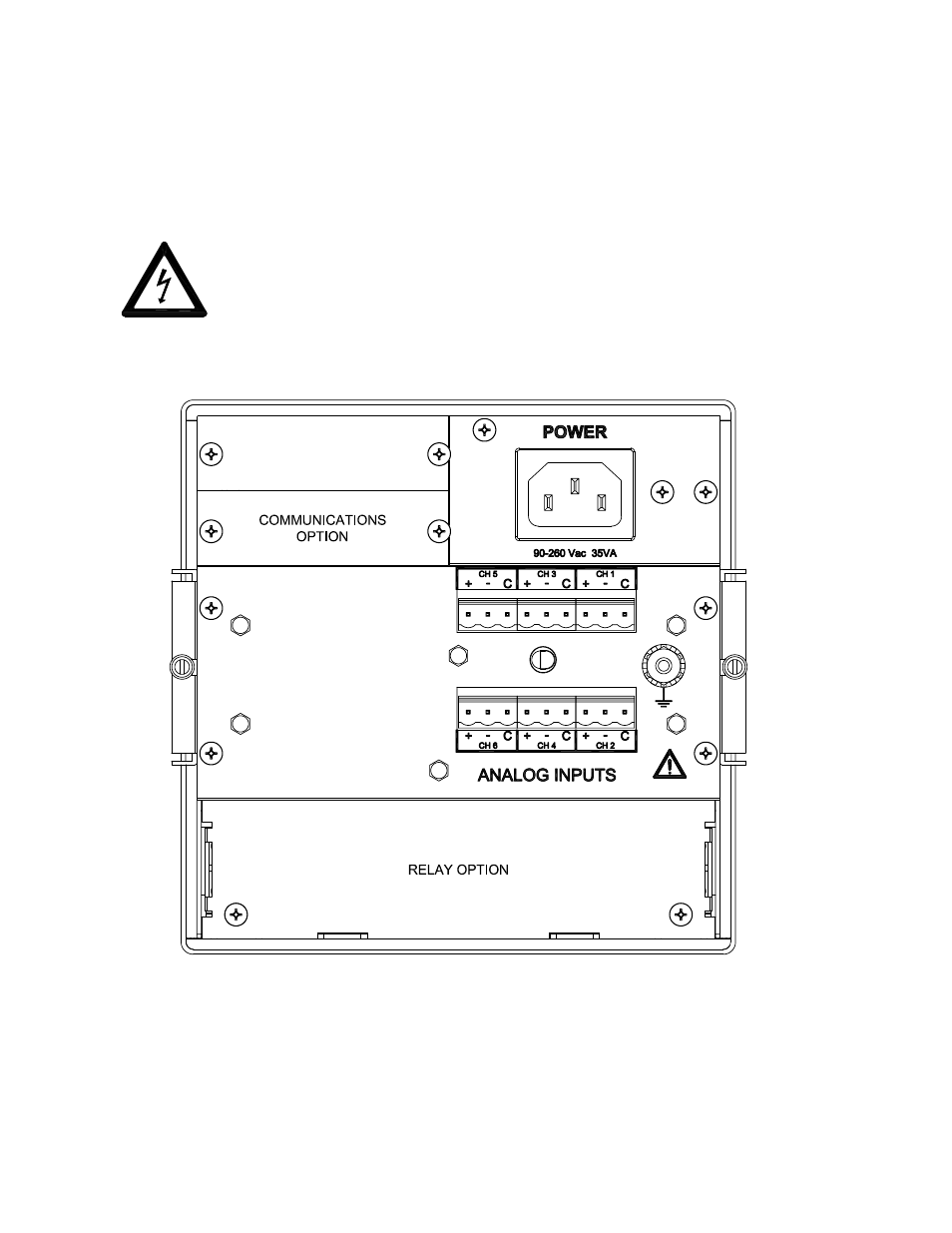

Figure 2-6 DC2000 Rear Panel Connections
