Monarch Instrument MVS Interconnect User Manual
Monarch Instrument Equipment

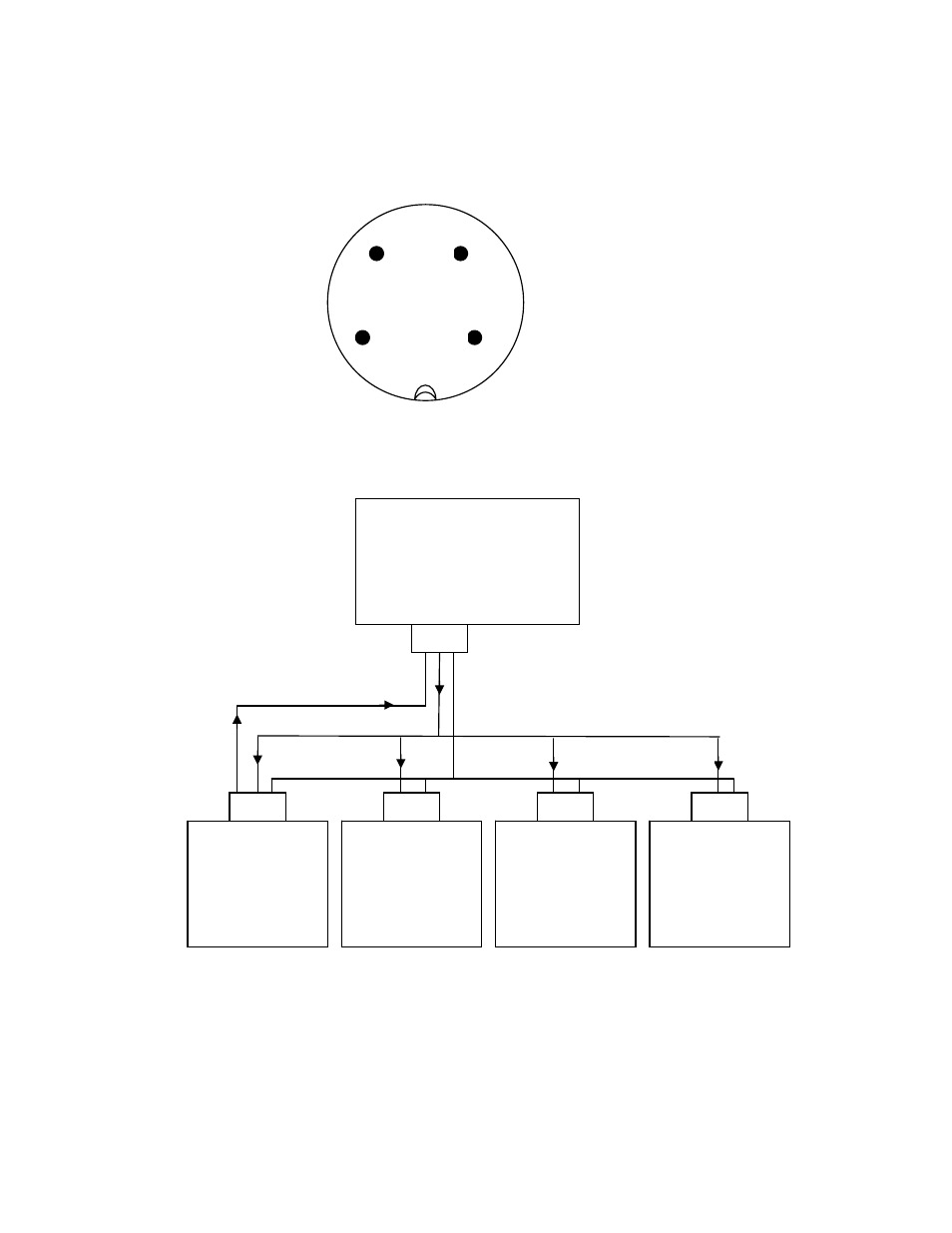

1=Green which is +V output is to power the Audio Interface Box
2=Red which is pulse input
3=White which is the Com or ground
4=Black Not used
1
2
3
4
Strobe and Audio Interface Box output connector rear view
Audio Interface Box
MVS #2
MVS #4
MVS #3
MVS #1
+V Green Pin 1
Pulse Input Red Pin 2
Com White Pin 3
Com White Pin 3
