Appendix B – Configuring a 4-20 mA input to equal 0 to 150 gpm
Page 5 of 7

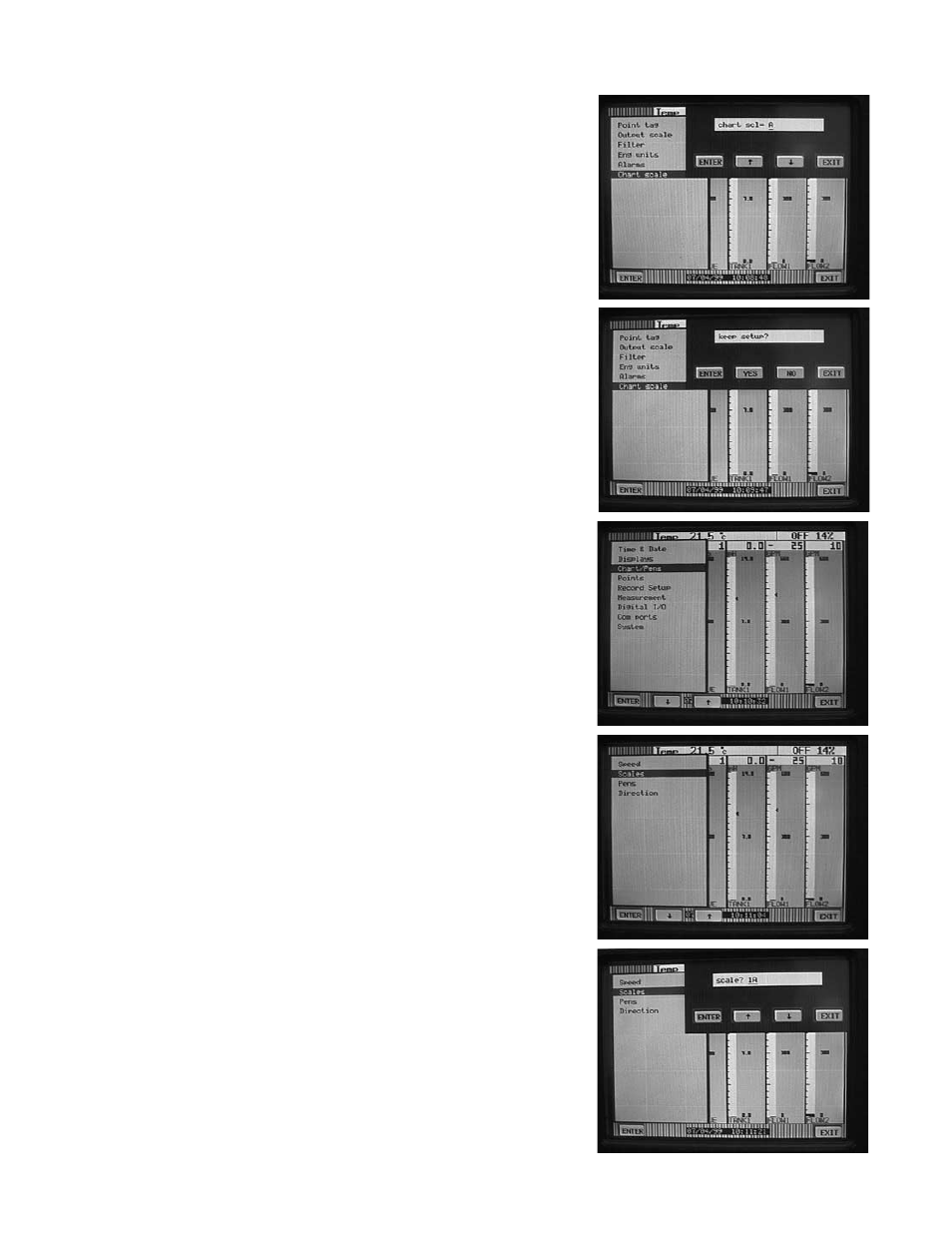

Touch EXIT to complete configuration of this point and you
will be prompted with keep setup? . Touch YES to
permanently save your changes.
You will be back at the main program menu. Using the up/
down arrow keys select
Chart/Pens
and touch
ENTER
.
You will now be prompted with
Scale?
. Using the up/down
arrow keys you can select scales
1A
through
2H
. For this
example select
1A
and touch
ENTER
.
You will now be in the Chart/Pens menu beginning with
Speed
. Using the up/down arrow keys select
Scales
and
touch
Enter.
21.
22
23
24
Touch EXIT twice to get back to the menu beginning with
Point tag . Using the up/down arrow keys select Chart
scale and touch ENTER . Using the up/down arrows you
can select A,B,C,D,E,F,G or H. For this example select
A and touch ENTER .
