Appendix C – Configuring a J type T/C input for a 100 - 750°C range

Page 2 of 5

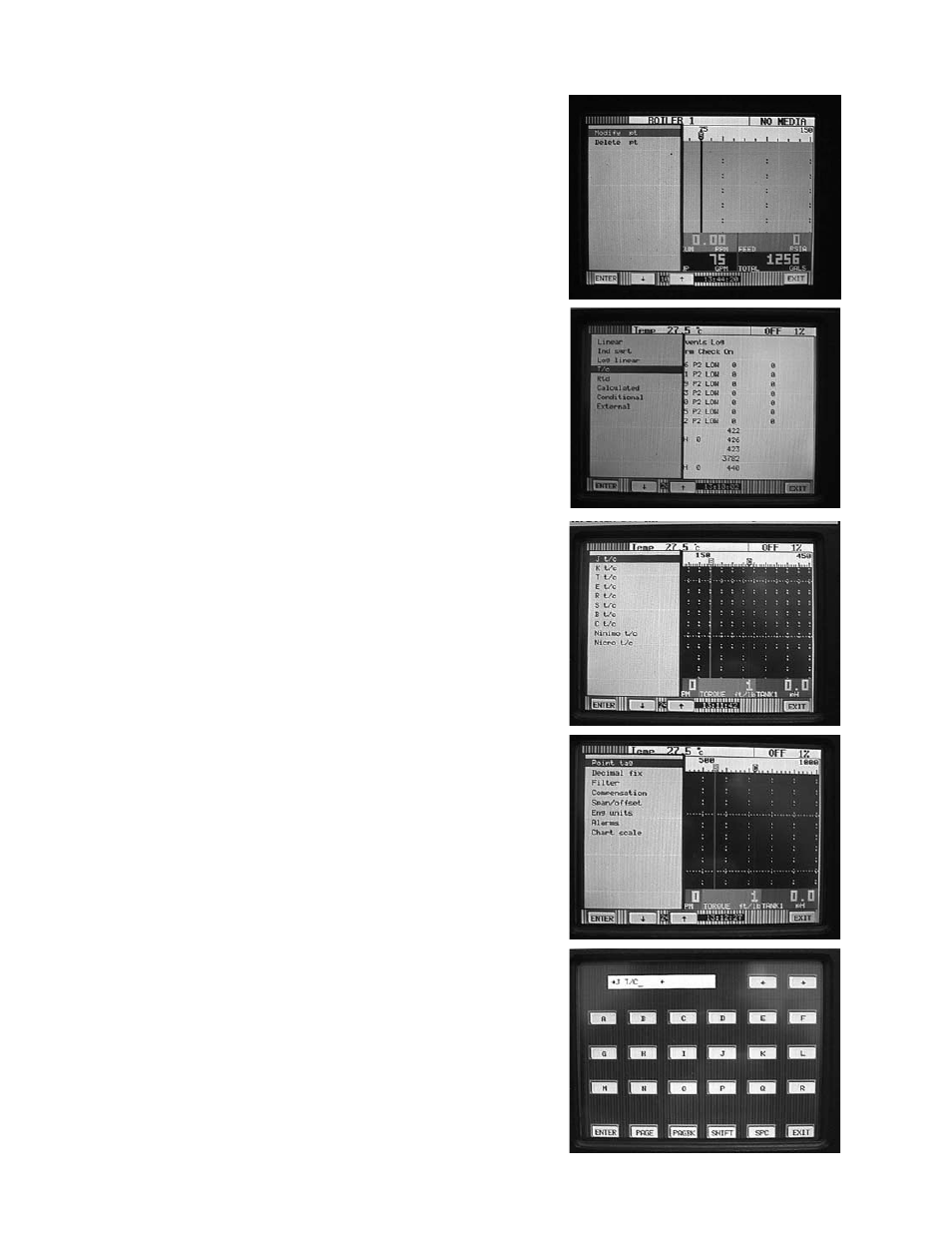

The menu containing types of inputs should now be

displayed. Use the up/down arrow keys to select

T/c

and

then touch

ENTER

An alphanumerickeypad will be displayed. This is where

you enter a word or phrase (up to 10 characters*) that

describes this particular point. There are multiple pages of

letter, numbers and symbols that can be used. Use the

PAGE, PAGEBK

and

SHIFT

keys to access the differenct

characters. For this example enter

J t/c

and touch

ENTER

* Only 8 characters will be displayed on the screen although

all ten will be recorded and can be displayed using the

Companion Software

The menu starting with

Point tag

will appear. Using the up/

down arrow keys select

Point tag

and touch

ENTER

The menu displaying thermocouple types should now

appear. For this example use the up/down arrow keys to

select

J t/c

and then touch

ENTER

If you are configuring the Recorder for the first time, a menu

having

Setup pt

Copy pt

and

Restore pt

will appear. If

you are changing a point that you have already configured,

the menu will have

Modify pt

and

Delete pt

. Depending on

which menu appears, use the up/down arrow keys to select

Setup pt

Modify pt

and then touch

ENTER
