Monarch Instrument DC 2000 User Manual
Page 137
Appendix B – Configuring a 4-20 mA input to equal 0 to 150 gpm
Page 3 of 7

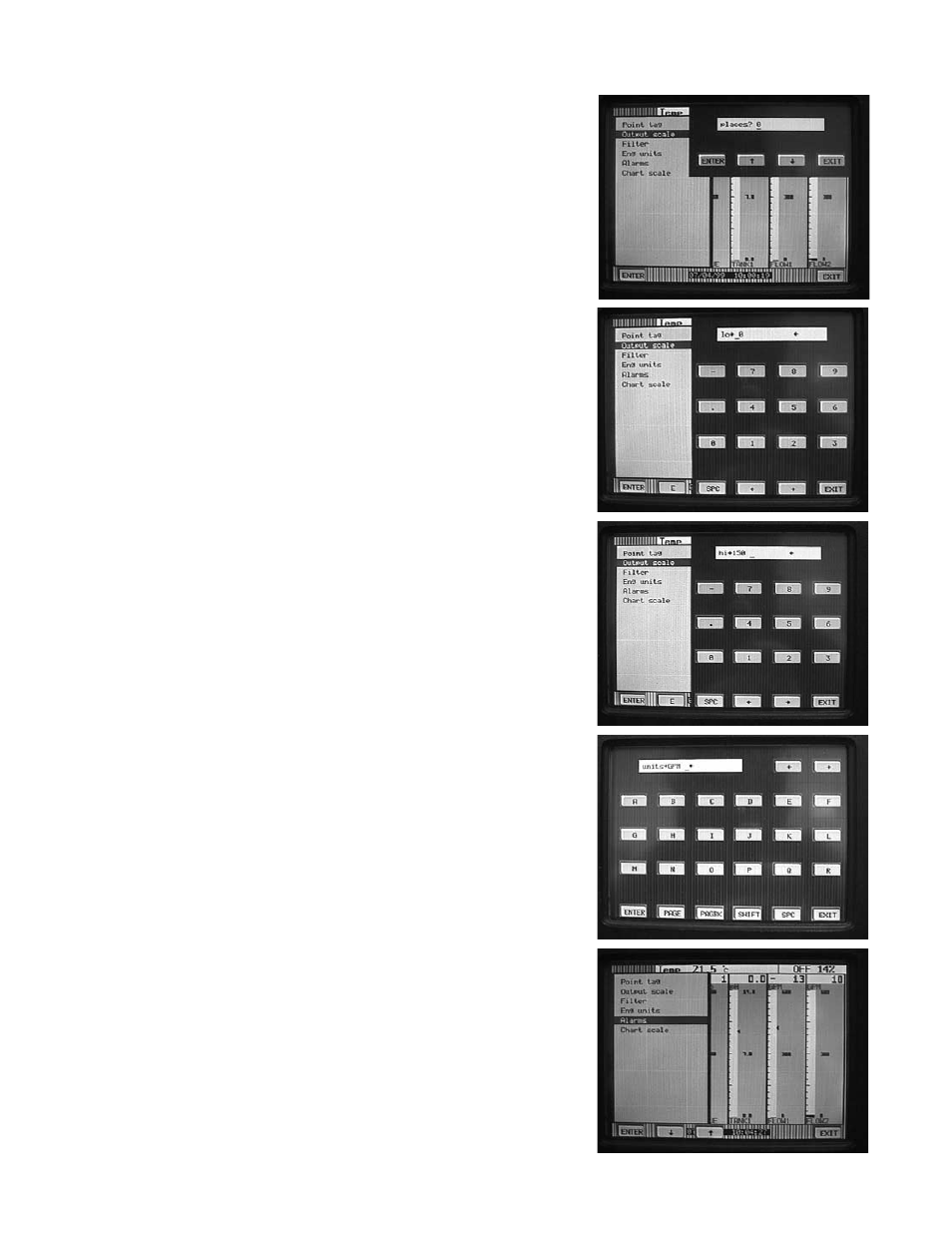

A numerickeypad will now be displayed prompting you with
lo
→
→
→
→ ←
←
←
←
.
This is where you enter the low end of your range
or the equivalent value for 4 mA. For this example
(0 to 150 gpm) select
0
and touch
ENTER
.
You will now be prompted with
hi
→
→
→
→ ←
←
←
←
.
This is where you
enter the high end of your range of the equivalent value for
20 mA. For this example select
150
and touch
ENTER
.
You will now be back at the menu beginning with
Point tag
.
Using the up/down arrow keys select
Alarms
and touch
ENTER
.
Using the up/down arrow keys select
Eng units
and touch
ENTER
. An alpha-numerickeypad will appear prompting
you
units
→
→
→
→ ←
←
←
←
. You can enter up to 5 characters. Using
the
PAGE
,
PAGBK and SHIFT keys, if needed, enter the
desired engineering units. For this application enter GPM
and touch ENTER.
11.
12.
13.
14.
A menu prompting you
places?
will appear. Use the up/
down arrow keys to select the number of decimal places you
wish to be displayed and recorded. For this example select
0
and touch
ENTER.
10.
