Tweco 400 MST Arc Master User Manual
Page 87
400MST
9
ADVANCED TROUBLESHOOTING
9 – 50

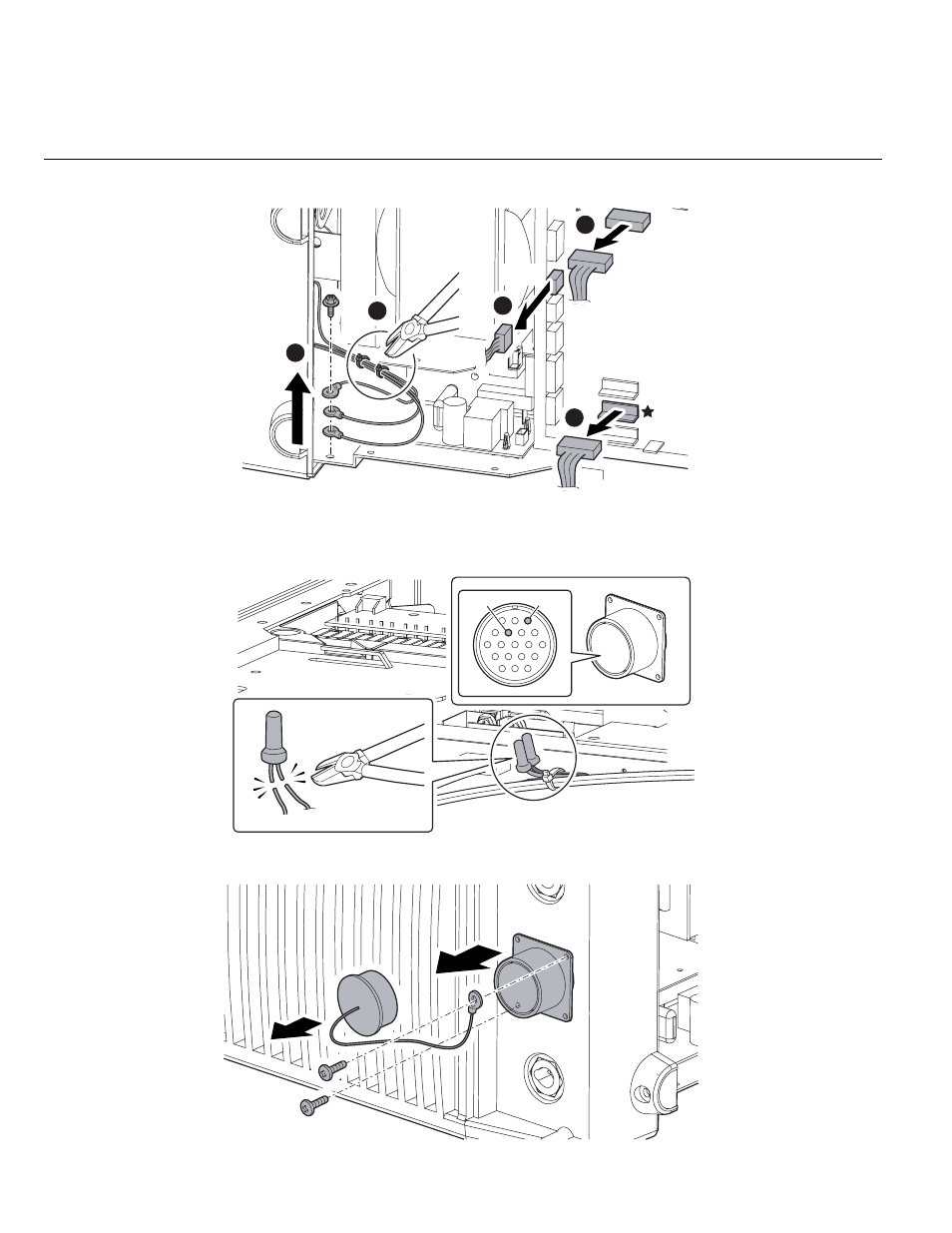

6) Disconnect three connectors. Remove one screw and three ground terminals. Cut off two snap bands.
7) Cut the harnesses of N-pin/L-pin of the 19-pin receptacle (CON2), which are connected with the insu-
lated terminals.
8) Remove two screws. Remove the cap and remove the 19-pin receptacle (CON2).
CN7
CN6
CN5
2
1
1
1
3
L
N
