ADVANCED TROUBLESHOOTING
9 – 42

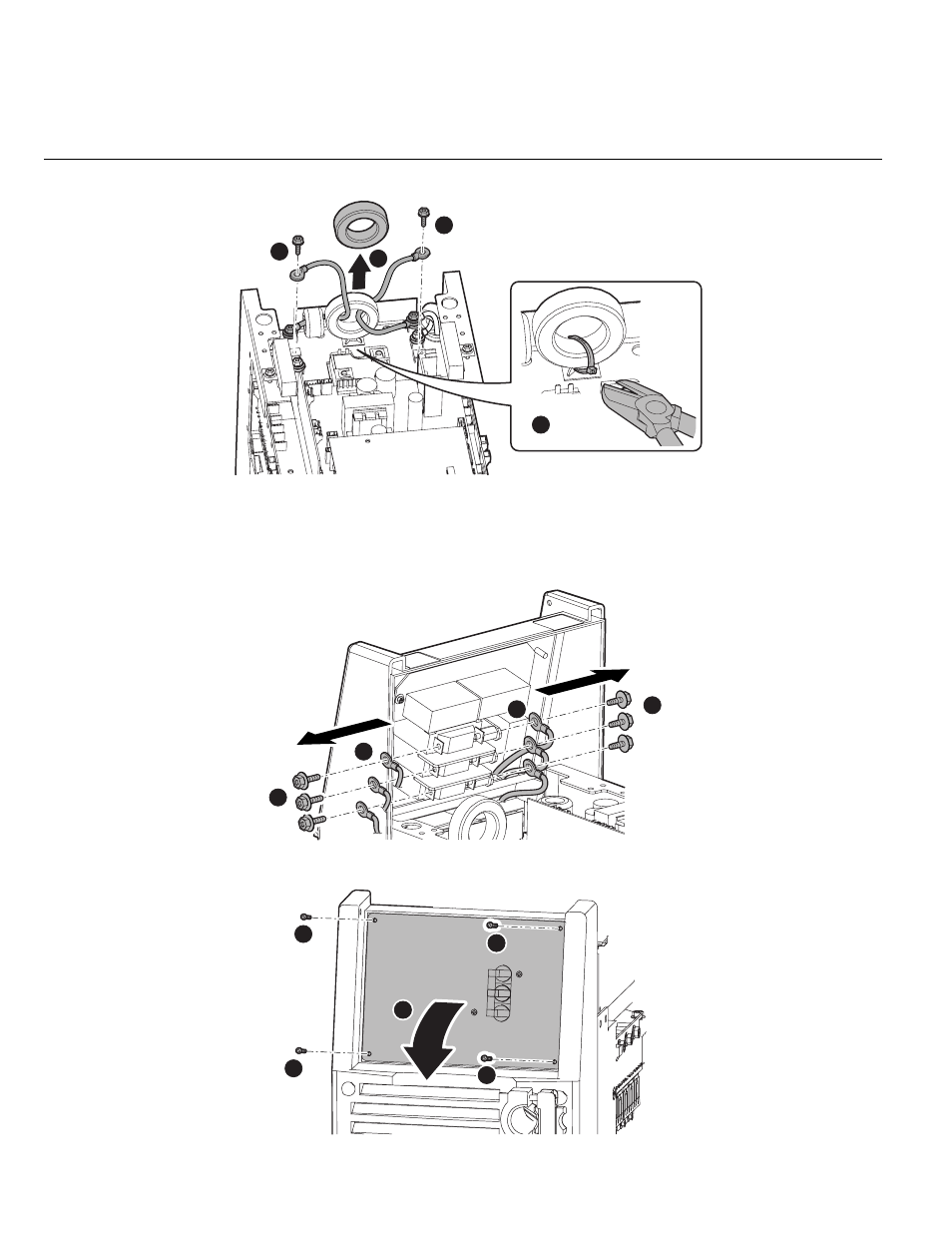

3) Remove two screws and two terminals. Cut off one snap band and remove the reactor (L1).
2.4.27 Molded Case Circuit Breaker (MCB1 and MCB2)
1) Remove the side cover. [Reference page: 9-1]
2) Remove six screws and six terminals.
3) Remove four screws and open the rear panel.
2
3
1
1
1
1
2
2
1
1
1
1
2
