16 inductor (fch1) – Tweco 400 MST Arc Master User Manual
Page 71
400MST
9
ADVANCED TROUBLESHOOTING
9 – 34

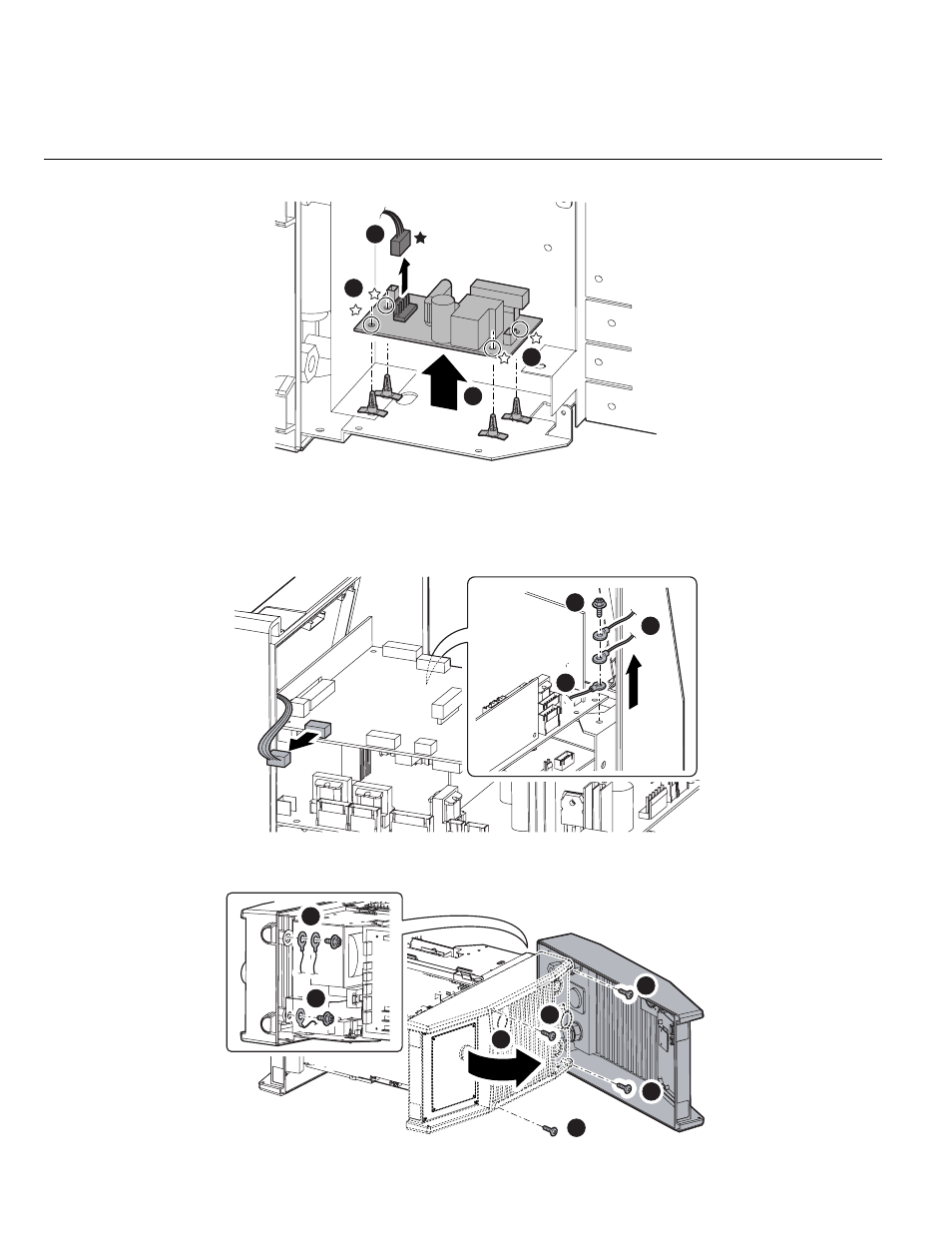

4) Disconnect two connectors. Remove four board supports and remove PCB18 (WK-5499).
2.4.16 Inductor (FCH1)
1) Remove the side cover. [Reference page: 9-1]
2) Disconnect one connector. Remove one screw and three ground terminals.
3) Remove two bolts and three terminals. Remove four screws and open the front cabinet.
3
1
2
2
CN1
1
2
2
CN21
2
2
2
2
1
1
3
