Tweco 400 MST Arc Master User Manual
Page 56
400MST
9

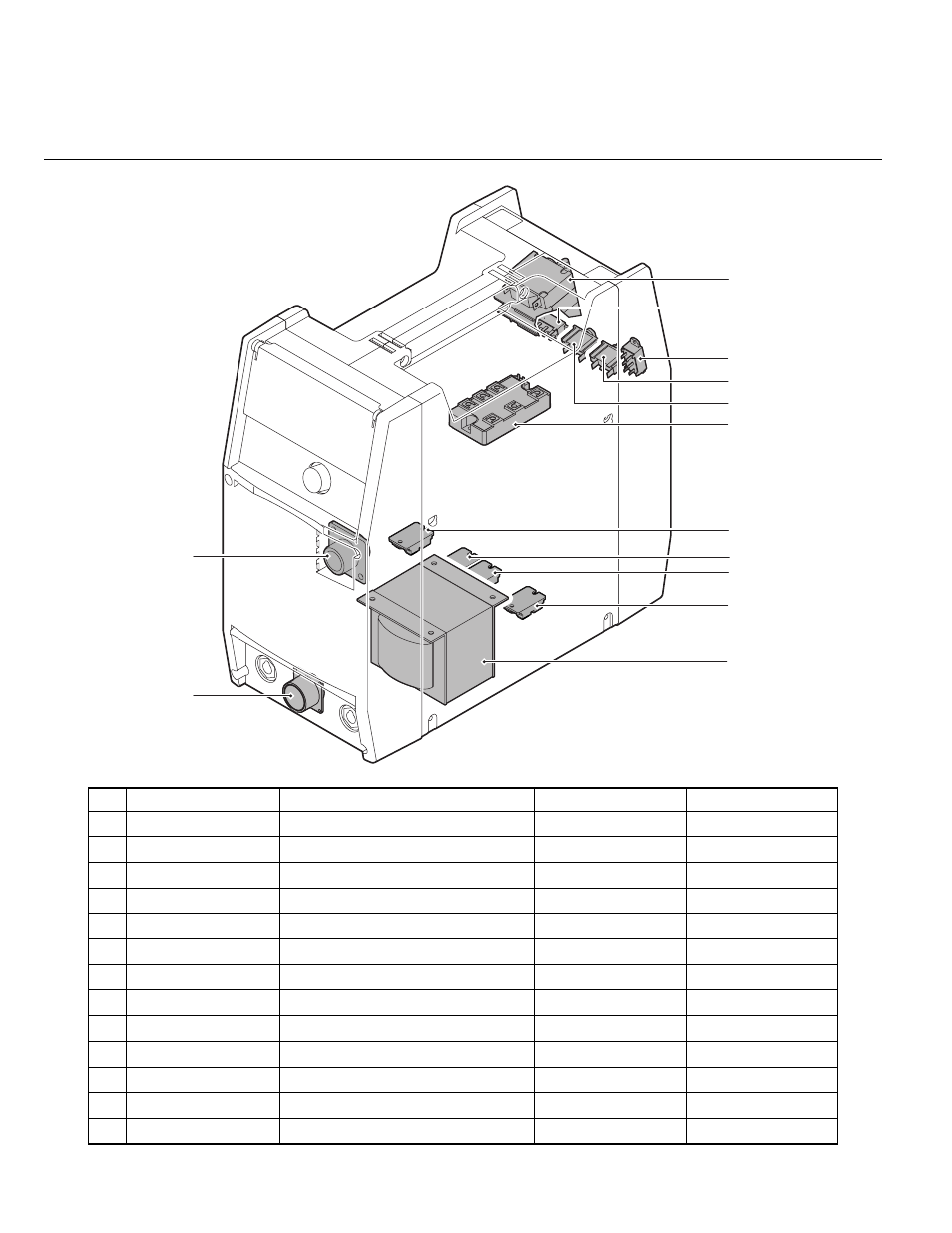

ADVANCED TROUBLESHOOTING
9 – 19
3
1
2
5
6
4
13
10
11
8
9
12
No.
DWG No.
Parts name
Reference page Part No.
1
CON1
14-PIN Receptacle
9-47 W7001302
2
CON2
19-PIN Receptacle
9-48 W7001303
3
D1
Diode
9-39 10-6769
4
D2
Diode
9-40 10-6629
5
D4
Diode
9-40 10-6629
6
D5
Diode
9-40 10-6629
8
MCB1
Circuit Breaker
9-42 W7001310
9
MCB2
Circuit Breaker
9-42 10-2235
10 S1
Switch
9-37 10-6857
11 S2
Switch
9-38 10-5222
12 S3
Switch
9-38 10-5222
13 T1
Transformer
9-44 W7001326
