Tweco 400 MST Arc Master User Manual
Page 72
400MST
9
ADVANCED TROUBLESHOOTING
9 – 35

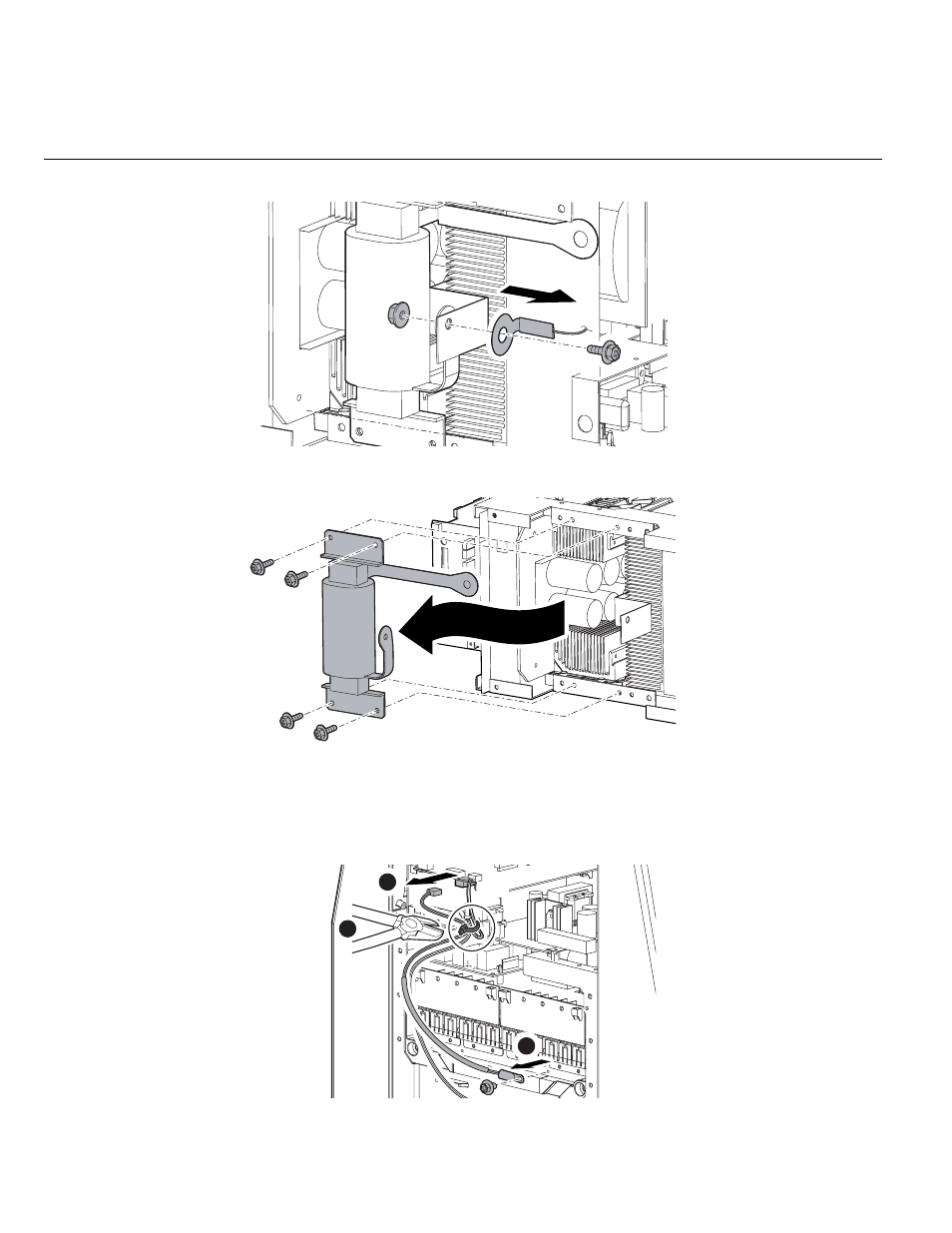

4) Remove one screw, one terminal and one nut.
5) Remove four screws and remove the inductor (FCH1).
2.4.17 Thermistor (TH1)
1) Remove the side cover. [Reference page: 9-1]
2) Cut off one snap band and disconnect one connector. Remove one screw and remove the thermistor (TH1).
When replacing the thermistor with a new one, apply an oil compound (SHINETSU SILICONE G-747
or equivalent) evenly to the base.
1
2
CN8
3
