28 resistor (r2 and r3) – Tweco 400 MST Arc Master User Manual
Page 80
400MST
9
ADVANCED TROUBLESHOOTING
9 – 43
4) Remove four terminals. Remove two nuts and remove the molded case circuit breakers (MCB1 and
MCB2).

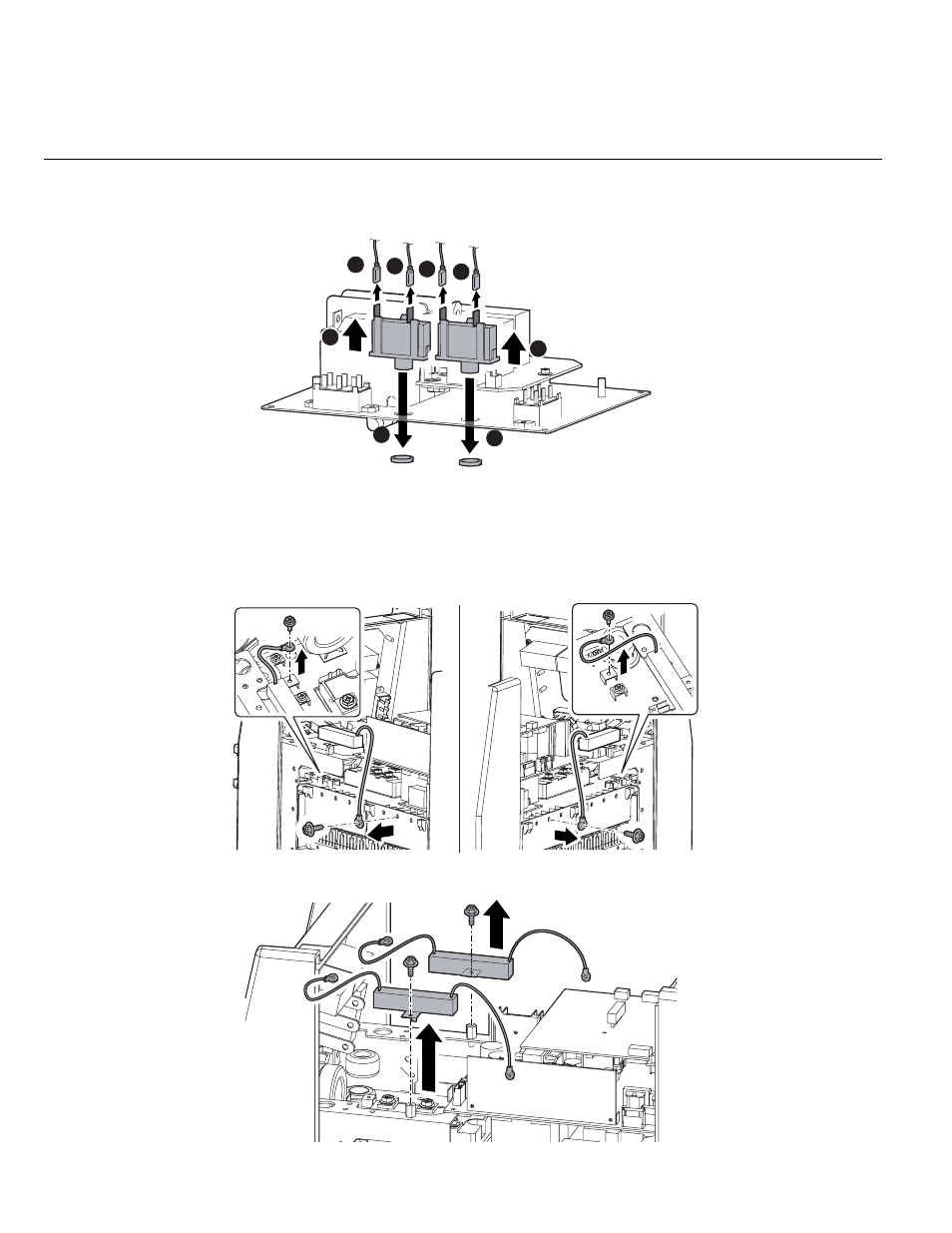

2.4.28 Resistor (R2 and R3)
1) Remove the side cover. [Reference page: 9-1]
2) Remove the switch (S1). [Reference page: 9-37]
3) Remove four screws and four terminals.
4) Remove two screws and the resistors (R2 and R3).
1
1
1
1
2
2
3
3
Blue
purple
orange
brown
