20 switch (s1) – Tweco 400 MST Arc Master User Manual
Page 74
400MST
9
ADVANCED TROUBLESHOOTING
9 – 37

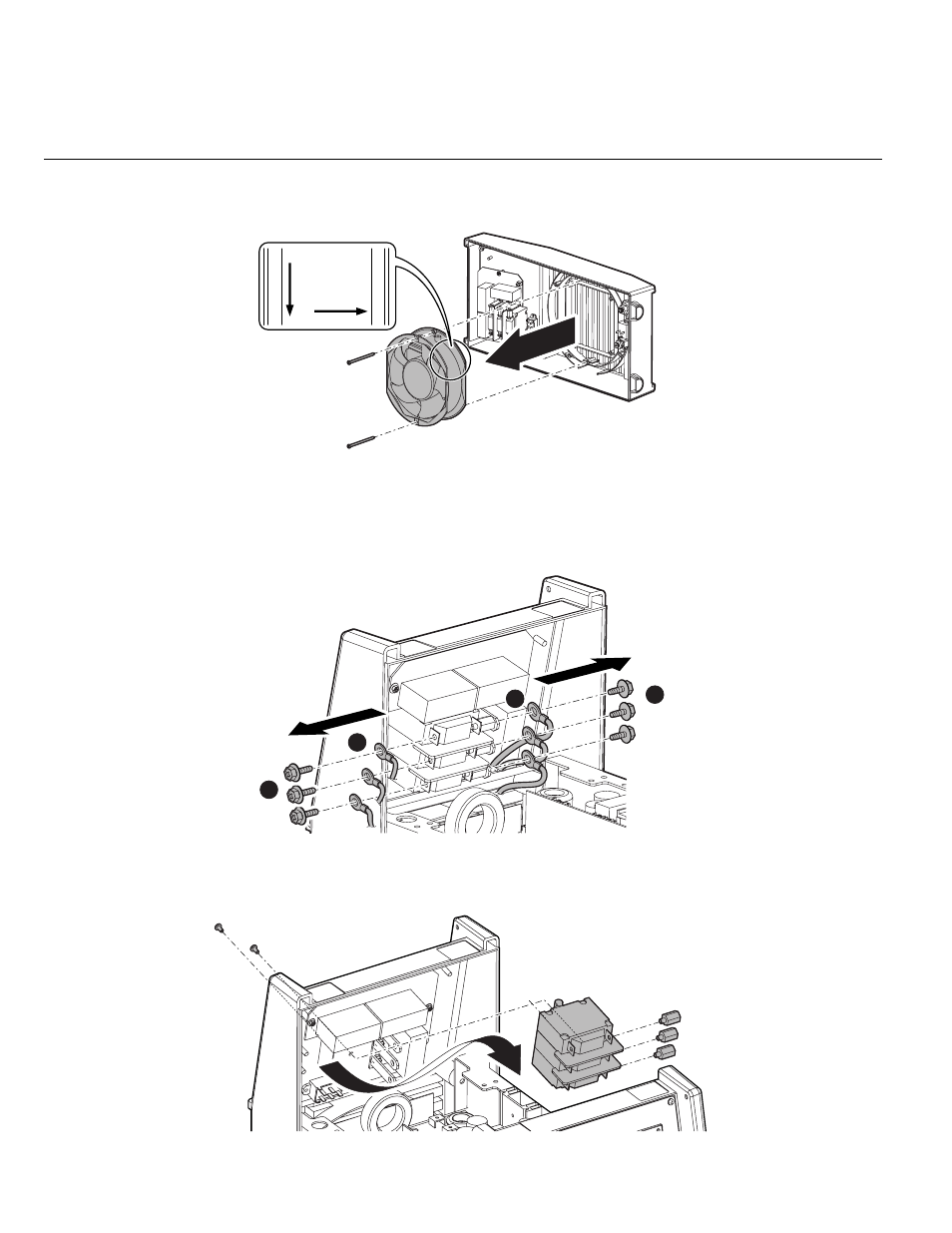

4) Remove two screws and remove the fan (FAN1).
Pay attention to the installation direction of the fan.
2.4.20 Switch (S1)
1) Remove the side cover. [Reference page: 9-1]
2) Remove six screws and six terminals.
3) Remove two screws and remove the switch (S1). Remove three posts.
AIR FLOW
R
O
TAT
IO
N
1
1
2
2
