400MST
9
ADVANCED TROUBLESHOOTING
9 – 3

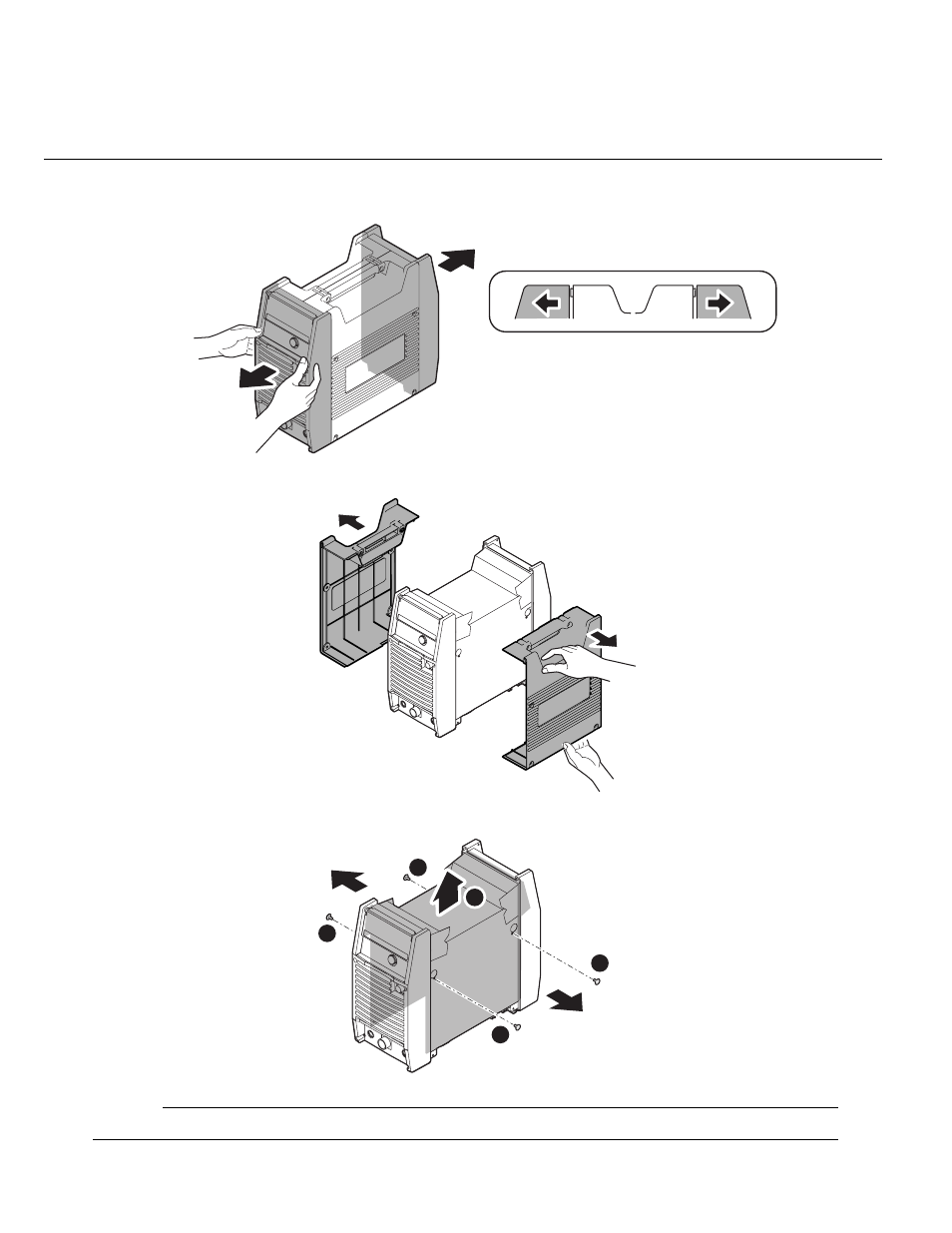

4) Pull the front panel slightly forward and pull the rear panel slightly backward.
The interlocking hooks of the side case covers can now be disengaged from the front and rear panels.
5) Remove the side covers.
6) Remove protection cover sheet by removing the plastic tabs.
NOTE
When you re-assemble the parts, conduct the above process backwards.
1
1
1
1
2
