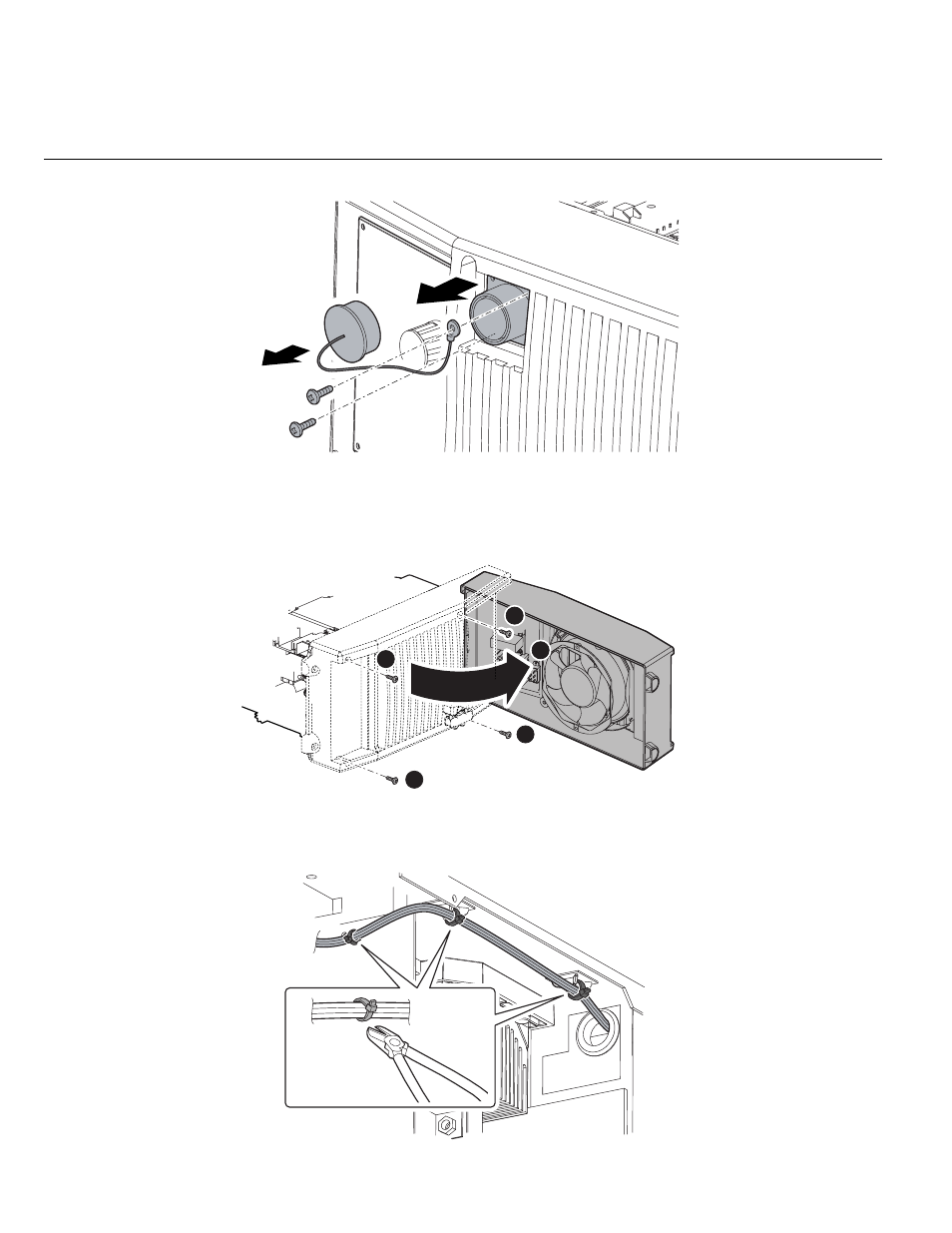

5) Remove two screws. Remove the cap and remove the 14-pin receptacle (CON1).
2.4.31 19-Pin Receptacle (CON2)
1) Remove the side cover. [Reference page: 9-1]
2) Remove four screws and open the rear cabinet.
3) Cut off three snap bands.
When reinstalling the receptacle, secure the harnesses to the holders using snap bands.
2
1
1
1
1
2
