PAK 200 OPERATION
OPERATION 4-2 Manual 0-5057
4.02 Control Console Features
RUN
SET
PLASMA
SHIELD
RUN
SET PLASMA SHIELD
A
CUT
OUT
Art # A-08384
Amperage
Selector
Run / Set Selector
Plasma Gas
Pressure Gauge
Shield Gas
Pressure Gauge
Plasma Gas Pressure
Control Knob
Shield Gas Pressure
Control Knob
GCM
200
A
CUT
OUT

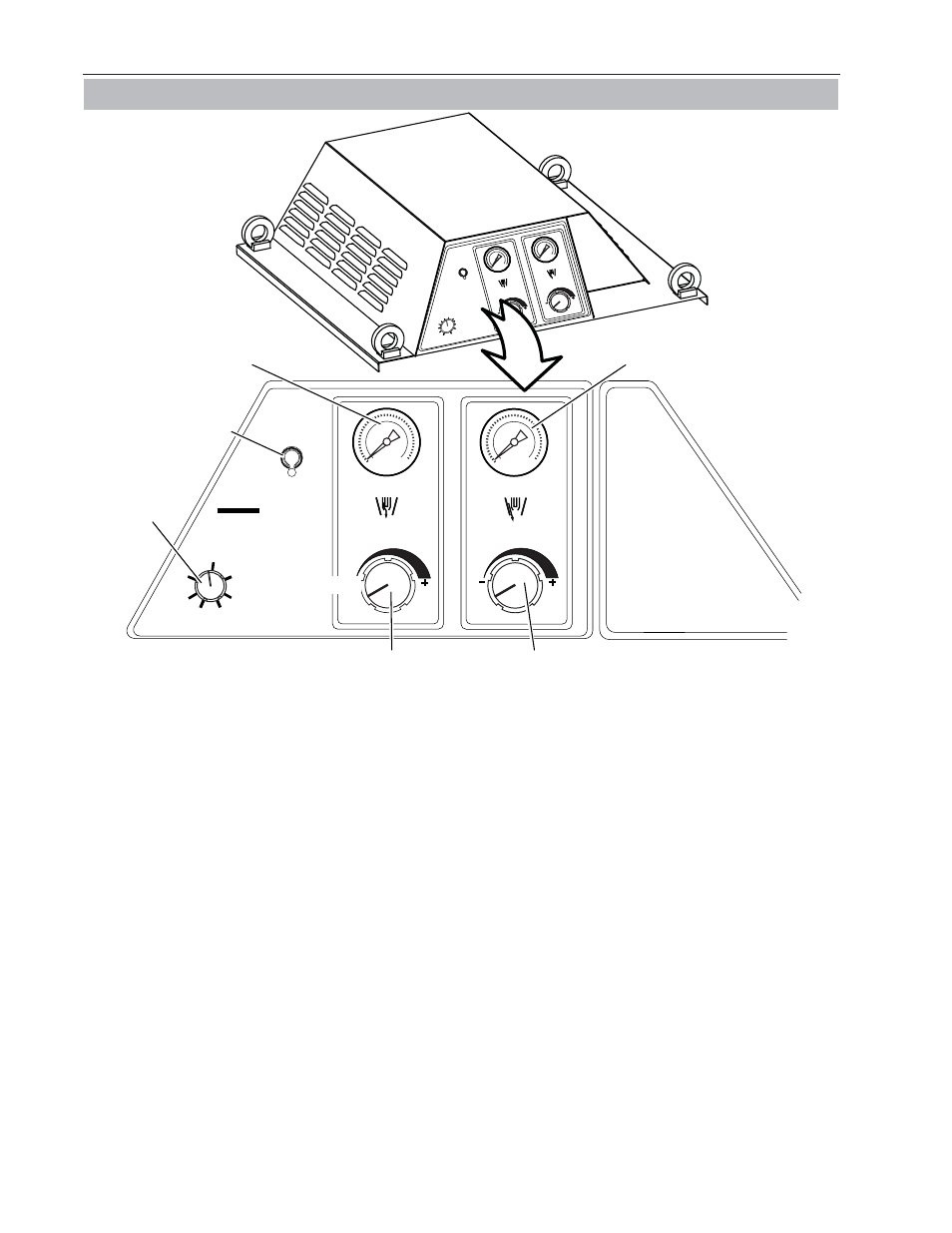

Figure 4-2: Control Console Features
Run / Set Selector: Use SET position to adjust plasma and shield pressures and fl ows. Once these are set, switch to
RUN position for operation.
Plasma and Shield Gas Pressure Control Knobs: Adjust plasma and shield gas pressures. Turn knobs to set
desired levels.
Plasma and Shield Gas Pressure Gauges: Display plasma and shield gas pressures.
Amperage Selector: Continuously adjustable up to 200 Amps.
