Manual 0-5057 3-7 INSTALLATION
INSTALLATION PAK 200
3.06 Connect Work Cable
1. Pass the end of the work cable upward through the leads bracket at the bottom of the power supply rear panel,
then up through the opening in the connections cover support panel.
2. Refer to the illustration. Connect the lead as shown. Tighten securely. Do not overtighten.
WARNING
Ensure that lead attachment hardware is properly sized. Excess length may cause damage if hardware
contacts other parts of the system.
The clear connections cover must remain in place.
PILO
T
WORK
TORCH
Input power cable
Ground Terminal Block
Connections Cover
Support Panel
Art # A-08501
Connections Cover
Connection Panel
Leads Bracket
AC INPUT
Input power cable ground
L1 L2 L3
L1
L2
L3

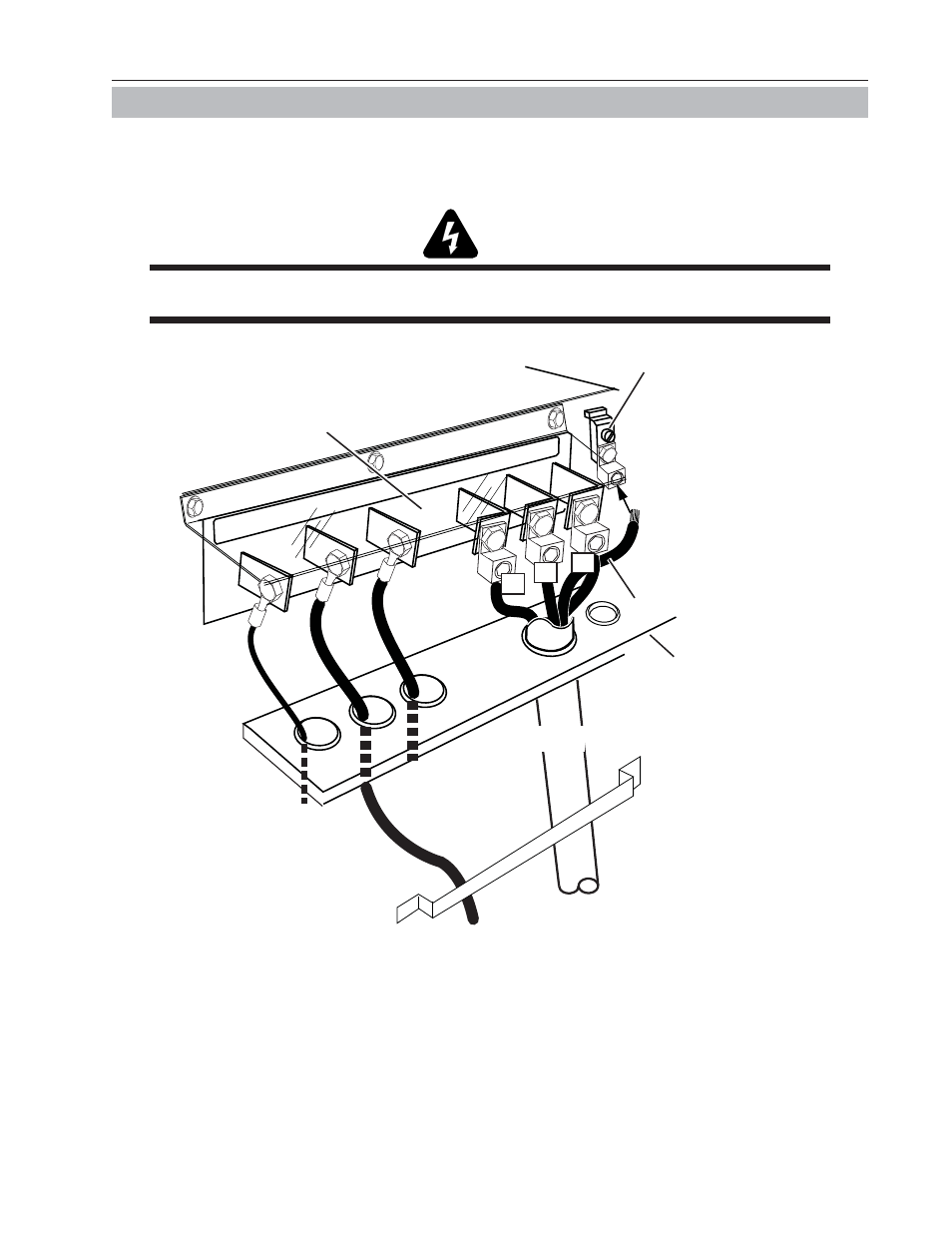

Figure 3-7: Connect Work Cable
