64

▪▪▪▪▪▪▪

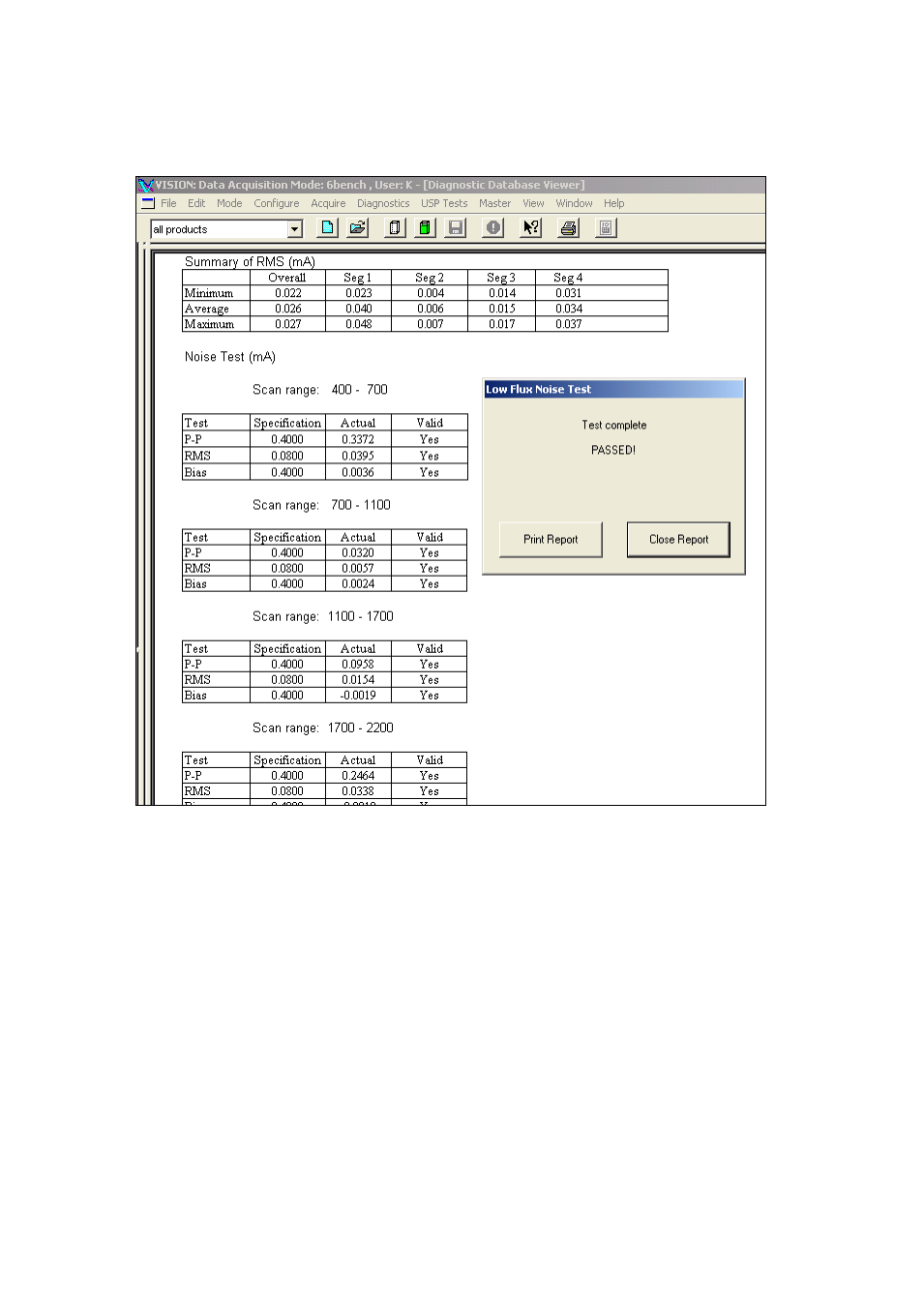

Vision runs the Low Flux Test, which takes about 10 minutes. At the end, the results are displayed. A
typical run is shown:

Click on the tab marked “Summary” to see the summarized results as compared to acceptance
specifications. Vision reports a pass or fail based upon successful test completion.

Results are stored in the Diagnostic Database for later recall. The user may print results, or click
“Close” to complete the test.
