INSTALLATION GUIDE
[email protected] www.DiodeLED.com 2 OF 3
DMX WIRELESS TRANSMITTER / RECEIVER
®
Visit the on-line product page at www.DiodeLED.com for additional product specifications & warranty information.
• DMX WIRELESS TRANSMITTER / RECEIVER Specification Sheet
For full specifications.
Additional Resources
Transmitter / Receiver LED Indicator Guide
Static Color Device is not transmitting/receiving a signal
Blinking Red Device is transmitting signal
Blinking Green Device is receiving signal
Operation
Troubleshooting

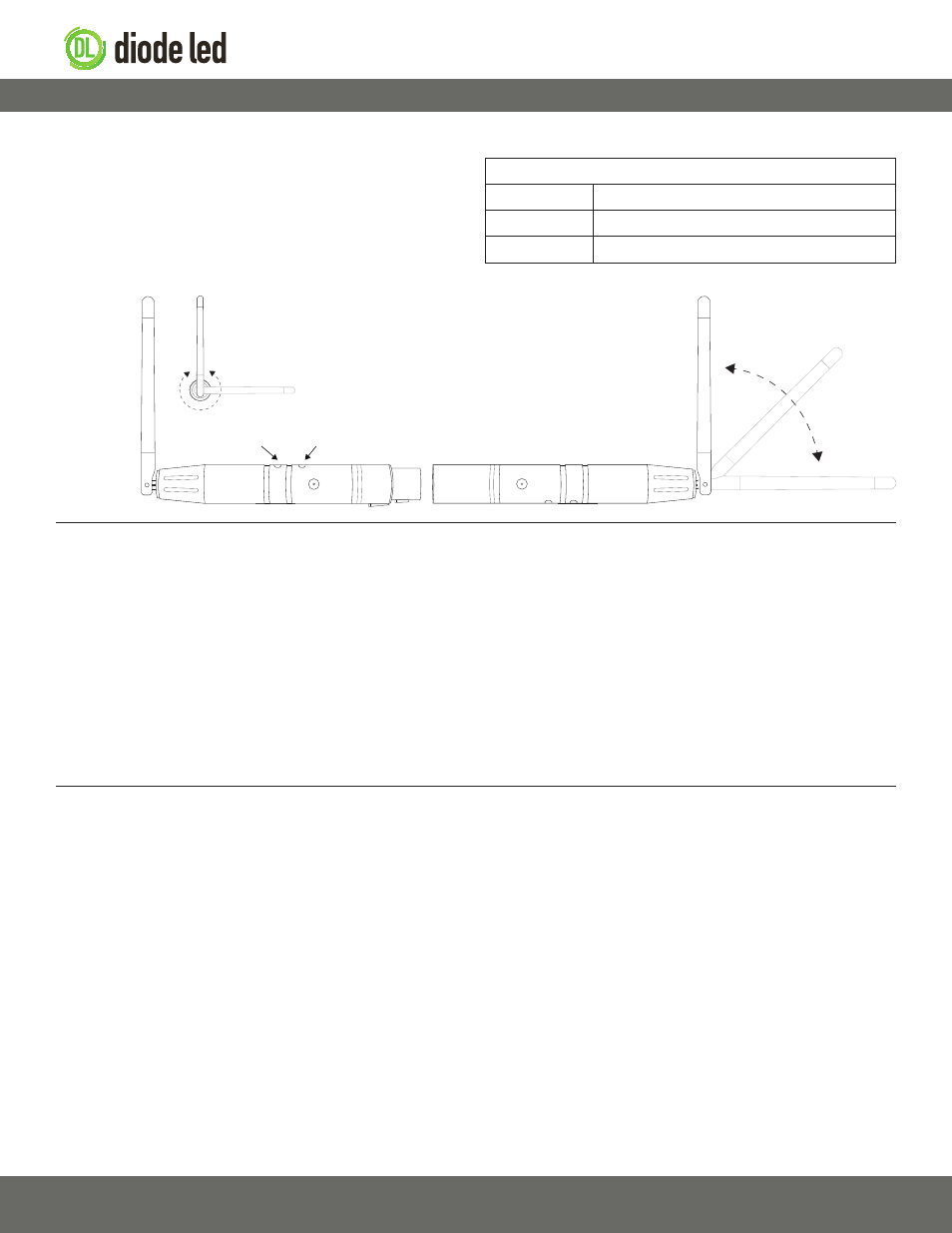

To set the wireless network ID, use a thin screwdriver or stylus and press
the button recessed in the transmitter. Up to 7 separate simultaneous
wireless networks may be set per location. Each ID is individually color-
coded (red, green, yellow, blue, purple, cyan, white). To set the ID:
• Press the button once to display the current network ID color.
• Continue pressing the button to cycle through the different networks.
LED indicator
for wireless ID
Recessed wireless
ID selector
90°
360°
Male Female 5VDC
Input
5VDC
Input
Both male/female devices may be installed as a transmitter and/or receiver.
LED fixture responding incorrectly
Ensure all wiring connections are correct. Reversing the Data + and Data - will cause lights to malfunction or respond incorrectly to the controller.
1. Power connections of all components (drivers, DMX decoders/fixtures, DMX controller).
2. DMX controller data connections - See DMX controller installation guide.
3. DMX decoder PWM output connections – See DMX decoder installation guide.
Transmitter / receiver(s) not pairing.
Ensure wall washers and/or DMX decoders are addressed to the proper ID. See ‘System Diagram’ for addressing wall washer / DMX decoder installations
utilizing the on-board controls of a master wall washer. Installations utilizing a remote DMX controller require specific addressing to match the zone
capabilities of the controller. See the DMX controller installation guide for addressing information.
If still not pairing, see Step 5 of ‘Installation’ to perform a ‘soft reset.’
