3 OF 4
INSTALLATION SHEET

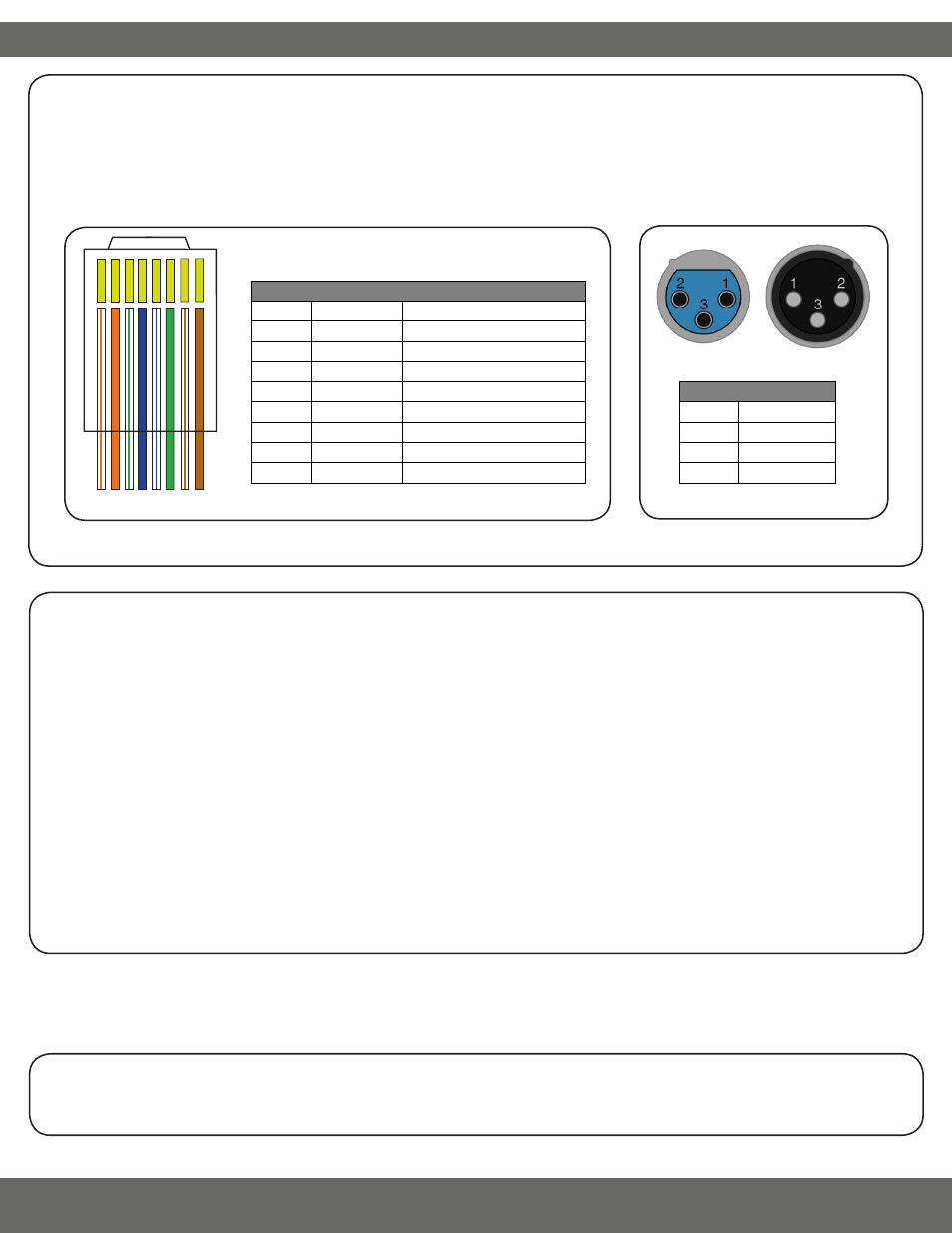

Pinout Connection Guide
The following diagrams/tables indicate the appropriate connections for patching your own CAT5/RJ45, and XLR-3 splice cables. These diagrams
are for general reference and may slightly differ between different cable manufacturers.
Troubleshooting
For thorough troubleshooting of LED strip light and fixtures, see LED fixture installation guides.
LED fixtures not responding to touch
1. Ensure the blue indicator light is on by pressing ‘Power.’ The indicator light will blink rapidly when pressing/holding any key on the touch pad.
2. Ensure the appropriate zone number was pressed prior to controlling the DMX decoder/fixture. For example, if you know the fixture is addressed
to zone 1, press ‘1’ prior to controlling.
3. Ensure the individual zone has not been turned off. Long pressing zones 1-4 will turn the specific zone ON/OFF. Additionally, long pressing R, G, B,
W will increase/decrease individual brightness and short pressing will turn R, G, B, W ON/OFF.
4. Ensure the DMX decoder/fixture is addressed properly. For example, address ‘001’ will respond to zone 1 of the controller. See ‘Setting the DMX
Address’ for additional addressing information.
LED fixture responding incorrectly
Ensure all wiring connections are correct. Reversing the Data + and Data - will cause lights to flicker and not respond to controller.
5. Power connections of all components (drivers, DMX decoders/fixtures, DMX controller).
6. DMX Data connections - See ‘Pinout Connection Guide’ and ‘System Diagram’ for RJ45 hard-wiring connections.
7. DMX decoder PWM output connections – See ‘System Diagram’ for CH 1-4 connections.
WALL MOUNT DMX CONTROLLER
For additional questions and concerns regarding installation or operation of this product, please contact technical support.
Please have all product part numbers on hand for fast and efficient technical assistance.
RJ45 568B Connection Pinout
1 2 3 4 5 6 7 8
RJ45 568B Pinout Table
Pin No. Wire Color Function
1 White/Orange Data +
2 Orange Data -
3 White/Green None
4 Blue None
5 White/Blue None
6 Green None
7 White/Brown May be used as 2nd ground
8 Brown Ground
XLR-3 Pinout Table
Pin No. Function
1 Ground
2 Data -
3 Data +
XLR-3 Connection Pinout
