INSTALLATION SHEET

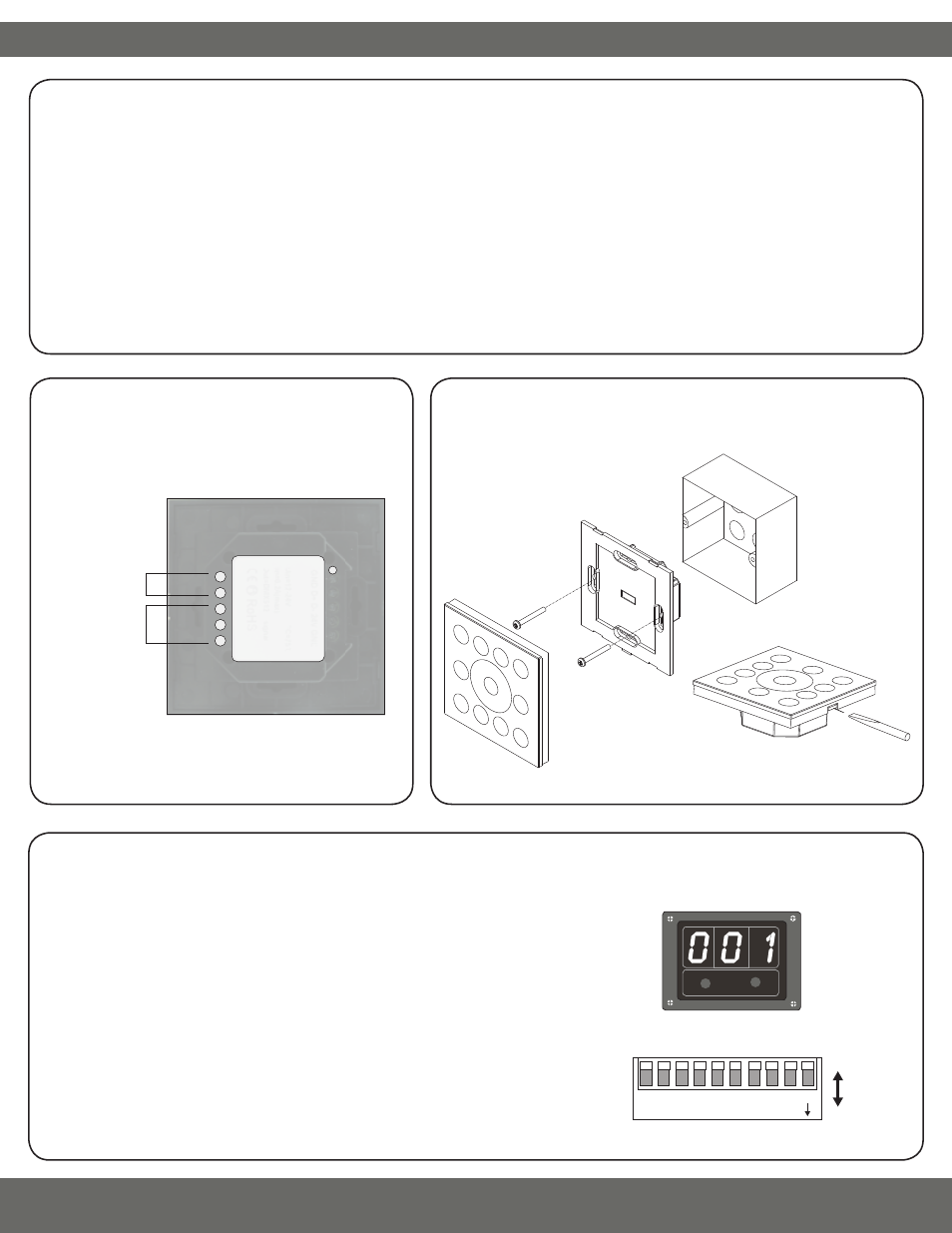

Setting the DMX Address
DMX 4-ZONE WIFI CONTROLLER
Each DMX decoder or DMX fixture needs to be addressed correctly so the controller
can distinguish between each one. To pair a DMX decoder or fixture to a specific
zone of the controller (1-4), set each decoder/fixture to one of the following
addresses:
• Zone 1: Set to address ‘001’ (will be fixed to address 001 – 004)
• Zone 2: Set to address ‘005’ (will be fixed to address 005 – 008)
• Zone 3: Set to address ‘009’ (will be fixed to address 009 – 012)
• Zone 4: Set to address ‘013’ (will be fixed to address 013 – 016)
Each zone of the controller is fixed with 4 DMX addresses to control the 4 channels:
CH1 – Red, CH2 – Green, CH3 – Blue, CH4 – White or X.
1 2 3 4 5 6 7 8 9 10
ON DIP
001 002 004 008 016 032 064 128 256 FUN
ON
OFF
Examples of DMX Addressing Displays
Digital Display
Dip-Switch Display
Install in accordance with the NEC and local regulations.
Mounting Wiring Connections
DO NOT connect directly to 120VAC.
See ‘System Diagram’ for a general system design.
Pop off faceplate with
a flathead screwdriver.
Install with the included DMX controller wall box.
Box dimensions:
2.83 x 1.89 x 2.83 in. (L x W x H)
Installation
1. Turn power OFF at main circuit breaker.
2. Determine an accessible location for a compatible driver to
be installed between the main breaker and DMX controller.
Determine a location to install additional accessories such as
DMX decoders, fixtures, etc. Ensure applicable wire is installed
between all components. When choosing wire, factor in voltage
drop, amp rating, and type to prevent fire or electric shock.
3. Remove the existing wall plate and switch. Pull switch from wall.
4. Identify wires and disconnect from switch.
5. Remove existing switch box from wall and install the included
DMX controller switch box. Additional tools may be required
to fit DMX controller switch box in the wall.
6. Make wiring connections. See ‘Wiring Connections’ and ‘System
Diagram’ for additional information.
7. Replace wiring back into switch box. Mount and align controller.
See ‘Mounting.’
8. Turn power ON at main circuit breaker, and address DMX
decoders/fixtures. See ‘Setting the DMX Address.’
GND
Data +
Data -
Vin (V+)
GND (V-)
To DMX Decoder
or DMX Fixture
From 12-24V Driver
Reset
Switch
