INSTALLATION GUIDE

4 OF 4

K-RANGE 24

24V TUNABLE WHITE LED TAPE LIGHT

®

The following diagrams are provided as example system designs. Installations larger than one spool of tape light may require an alternate

system design. Contact technical support or see the product web page for additional system examples. Always review each component

installation guide for detailed and up-to-date wiring instructions.

For small-scale kelvin-adjustable installations

For small-scale kelvin-adjustable installations

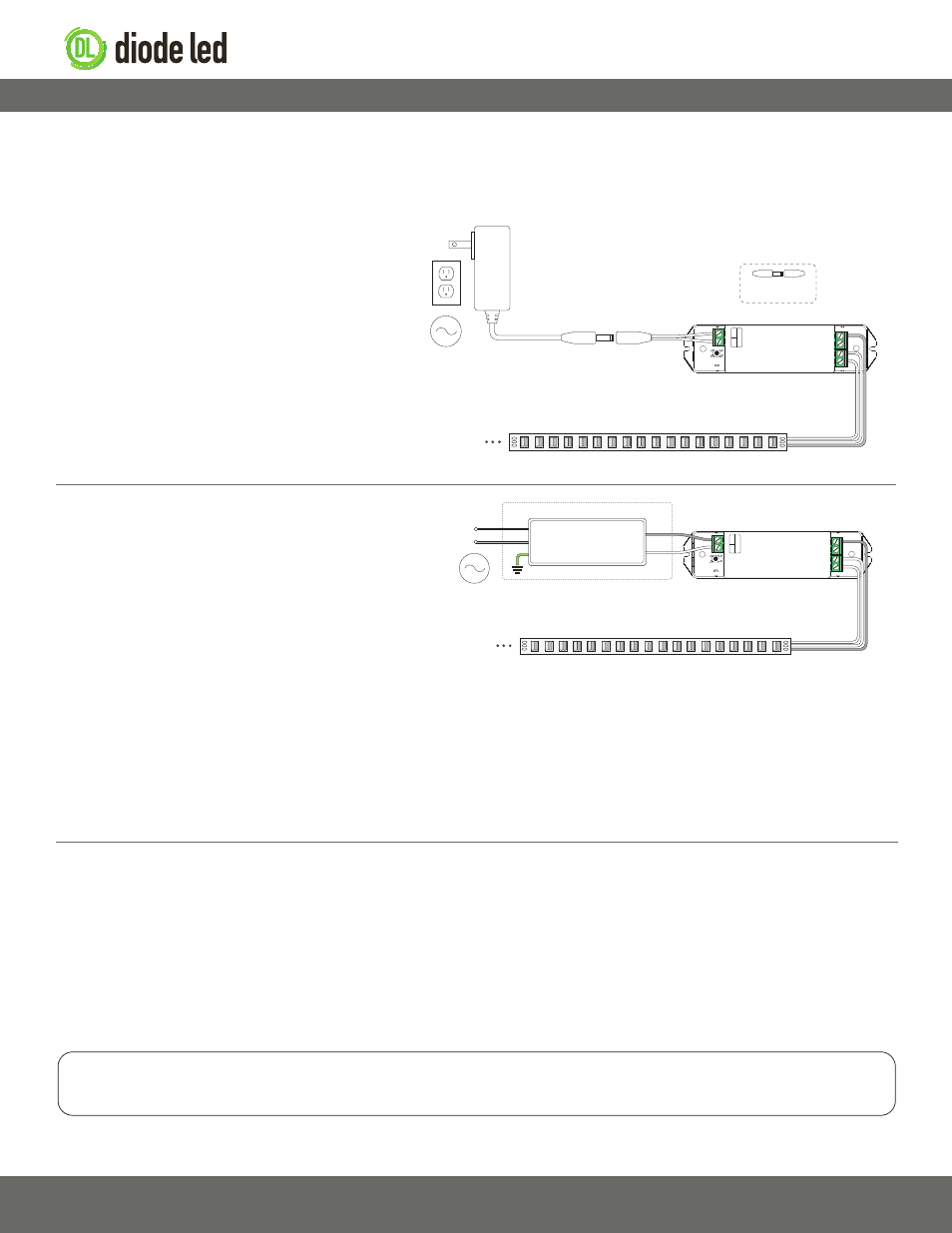

2-Channel Kelvin-Adjustable

Strip Light / Fixture‡‡

Ins

tall applic

able wire ga

uge / type

PW

WW

V+

DC+

DC−

Power

Ad

dress

Setting

N

U

R

K-RANGE 24 Controller****

V+

WW

PW

AC Power

50/60Hz

Class 2 Low Voltage

Plug-In Adapter (Driver)

Insertion points for

DC extension cables

Adapter Splice

Cable - Female§

AC Power

50/60Hz

L
N

Class 2 Low Voltage Driver***

Installed in Junction Box‡

G*

N

L

Input

Output

V+

V-

DC+

DC−

Power

Add
ress

Setting

N

U

R

K-RANGE 24 Controller****

2-Channel K-RANGE

Strip Light / Fixture‡‡

Ins

tall applic

able wire gauge / type

V+

V+

PW

WW

WW

PW

Kelvin-Adjustable Plug-In Adapter System

Kelvin-Adjustable Hard-Wire System

* Driver may not require a fault ground connection. Refer to driver specifications for

additional information.
*** Install a Class 2 constant voltage driver compatible with a low voltage PWM

controller/dimmer switch. Refer to each driver specification sheet for full power

ratings & load deratings.
**** Determine the number of low voltage outputs of the driver when installing

multiple PWM controllers/dimmer switches. No more than one PWM controller/

dimmer switch can be attached to a single output of the driver.

‡ Refer to driver specifications for a compatible junction box.
‡‡ See fixture specifications for maximum series run limits.
§ See in-line accessories specifications for maximum amperage ratings.

IG082514-1.3

System Diagrams

QUESTIONS?

Visit www.DiodeLED.com or contact Customer Support at [email protected]

or 1.877.817.6028 Monday through Friday, 7:00am - 5:00pm PST.

Additional Resources

Visit the online product page at www.DiodeLED.com for additional product specifications & warranty information.
• K-RANGE 24™ 24V TUNABLE WHITE LED TAPE LIGHT Specification Sheet

For full specifications.
• Voltage Drop Charts

Use to specify appropriate wire gauge for installation. Available at the ‘Tools & Resources’ page at www.DiodeLED.com.
