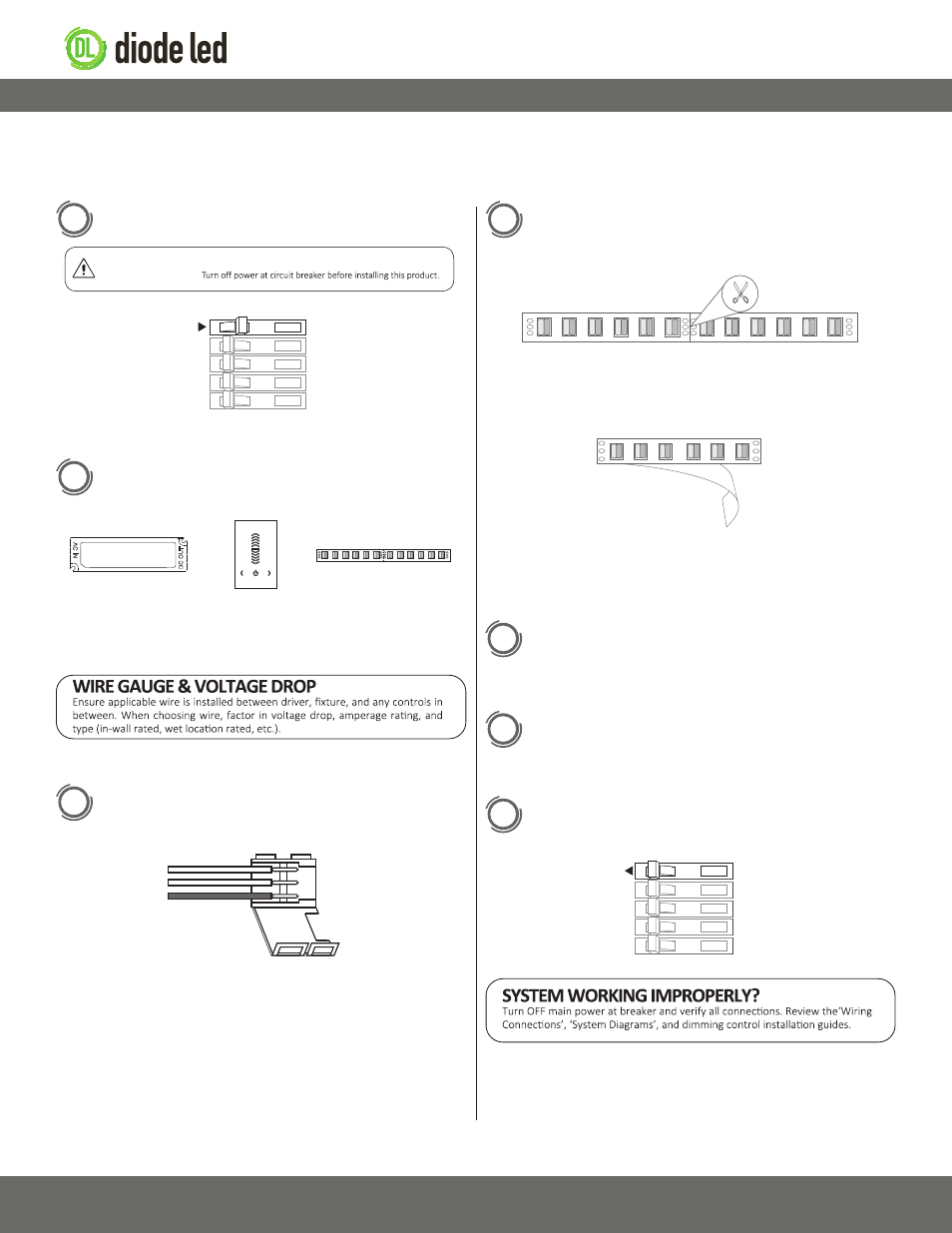

INSTALLATION GUIDE
2 OF 4
K-RANGE 24
™
24V TUNABLE WHITE LED TAPE LIGHT
®
A. Cut the tape at the line indicated with the scissors icon.
B. Determine a finished, smooth surface, away from direct sunlight for
mounting. Clean surface and let dry.
C. Remove adhesive paper from the tape light to expose 3M™ adhesive.
+
+
+
−
−
−
+
−
Cut points not drawn to scale.
+
+
+
−
−
−
+
−
Cut points not drawn to scale.
Prior to installation, verify all components are a compatible system. Configure and pre-test your LED system prior to permanent installation to ensure all
components are operating correctly. Install in accordance with the NEC and local regulations.
Installation
WARNING
Shock Hazard. May result in serious injury or death.
1
Turn OFF High Voltage AC Power at the main breaker.
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
ON
IG082514-1.3
2
Determine Locations to Install 3 Main Components. Refer to
the ‘System Diagrams.’
Attach adjustable kelvin controller and driver. Only use copper
wiring. Reference ‘Wiring Connections’ located further in guide
for visual. Verify a compatible constant voltage driver is installed.
Review the full system. Ensure all polarities are correct and
connections are secured.
Install Additional Components, Verify Connections, and Turn
Main Power ON at Breaker.
Prior to cutting tape light, refer to ‘K-RANGE™ CLICKTIGHT™
Connectors’ on page 3 for connection information.
Mount tape to desired surface.
1) Driver
2) Adjustable
Kelvin Controller
3) Fixture
3
4
D. Adhere tape to surface, working one end to the other to prevent
air pockets and raised sections. Utilize a clean rag between skin and
tape to resist oil transfer from skin to LEDs. Continue following the
remaining installation instructions.
5
6
7
ON
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
ON
+
+
+
−
−
−
+
−
Cut points not drawn to scale.
