INSTALLATION INSTRUCTIONS
9520 and 9525 Instructions 9-24-12.doc 32 of 34
Section 10D: Reference –
Relocating the Compass Circuit Board for vehicles with External Compass Module
(if required)

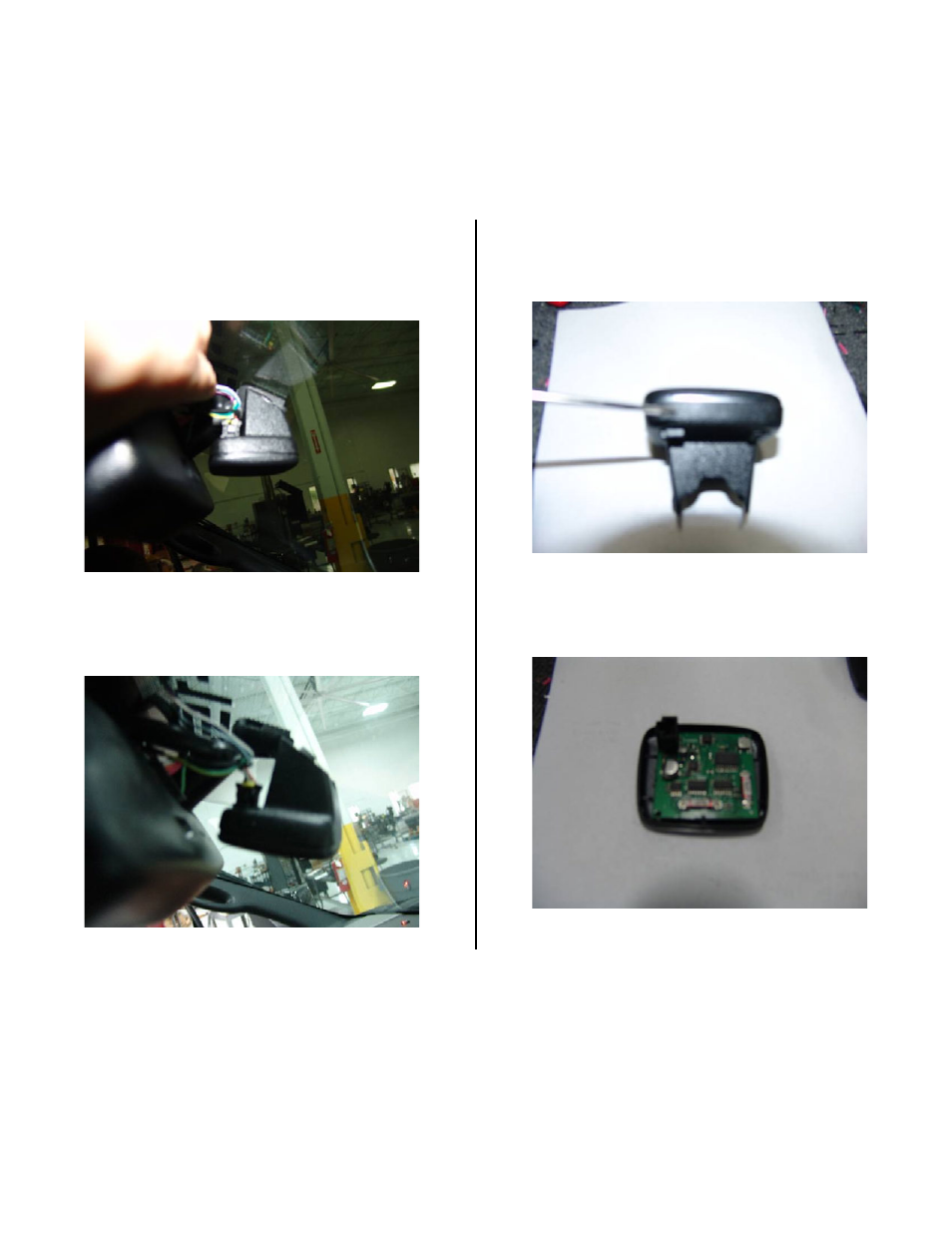

68. Remove the separate compass module from the
existing interior mirror by sliding it downwards
(Figure 49).
Figure 49
69. Unplug connector from the compass module (Figure
50).
Figure 50
70. Pry the compass module apart with a screwdriver
(Figure 51).
Figure 51
71. Remove the circuit board from the compass module
(Figure 52.
Figure 52
