Installation instructions – Brandmotion 1008-9525-V2 User Manual
Page 17
INSTALLATION INSTRUCTIONS
9520 and 9525 Instructions 9-24-12.doc
17 of 34
Section 8: Supplied Mirror Installation

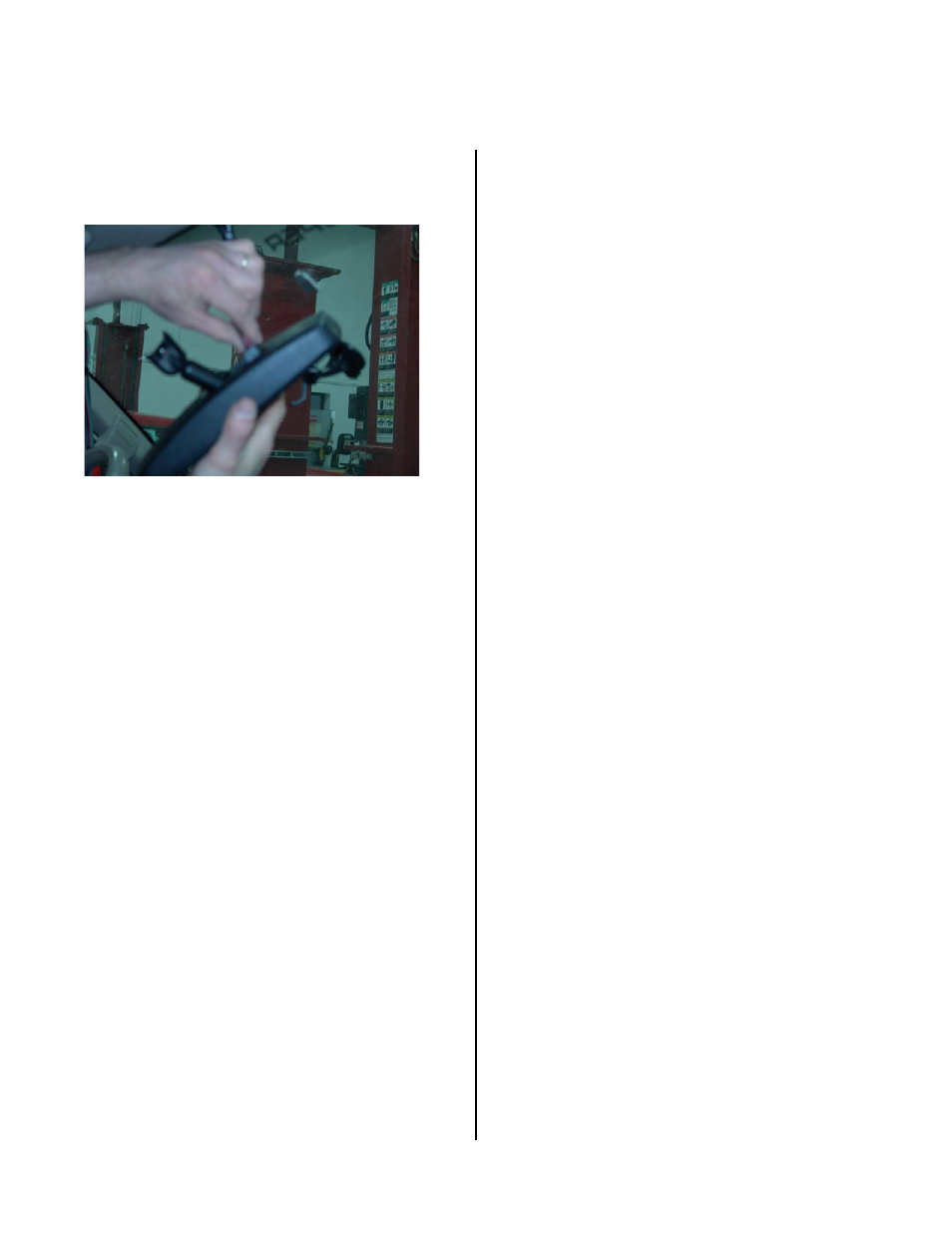

51. Plug the 16-pin connector from the supplied interior
harness into the supplied mirror (Figure 35).
Figure 35
52. Install the supplied mirror on the mounting button
and slide it downwards. Secure by tightening the
T20 Torx screw to 1.8 Nm (16 lb-in.), while not
exceeding 2.2 Nm (19.5 lb-in.).
53. If equipped, reinstall modified Rain Sensor from
Section 3.
