INSTALLATION INSTRUCTIONS
9520 and 9525 Instructions 9-24-12.doc 18 of 34
Section 9: Chassis Harness Installation

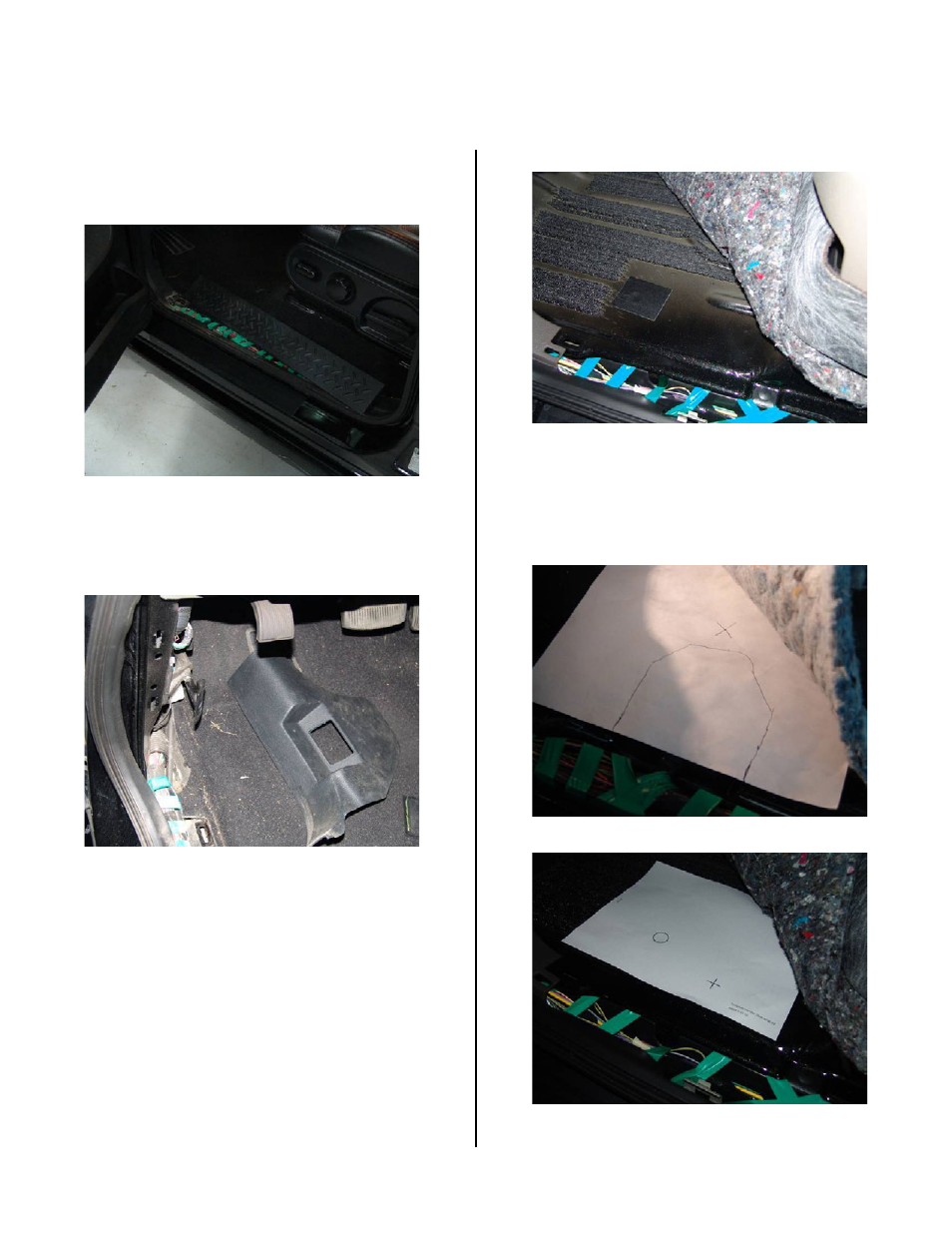

54. Remove the driver side sill plate with a trim tool
(Figure 36).
Figure 36
55. Loosen driver side A-pillar molding with hands and
then remove the driver side lower kick panel (Figure
37).
Figure 37
56. Pull back carpet in front of driver’s seat (Figure 38).
Figure 38
57. Secure Super Duty template number 1008-9100-01
(Figure 39) or secure F150 template number 1008-
9100-02 over opening in front of driver’s seat
(Figure 40).
Figure 39
Figure 40
