INSTALLATION INSTRUCTIONS
9520 and 9525 Instructions 9-24-12.doc 19 of 34
Section 9: Chassis Harness Installation continued
58. Center punch and drill a pilot hole.
59. Drill a 1 inch hole with a hole saw, clean the hole
with a deburring tool (Figure 41).

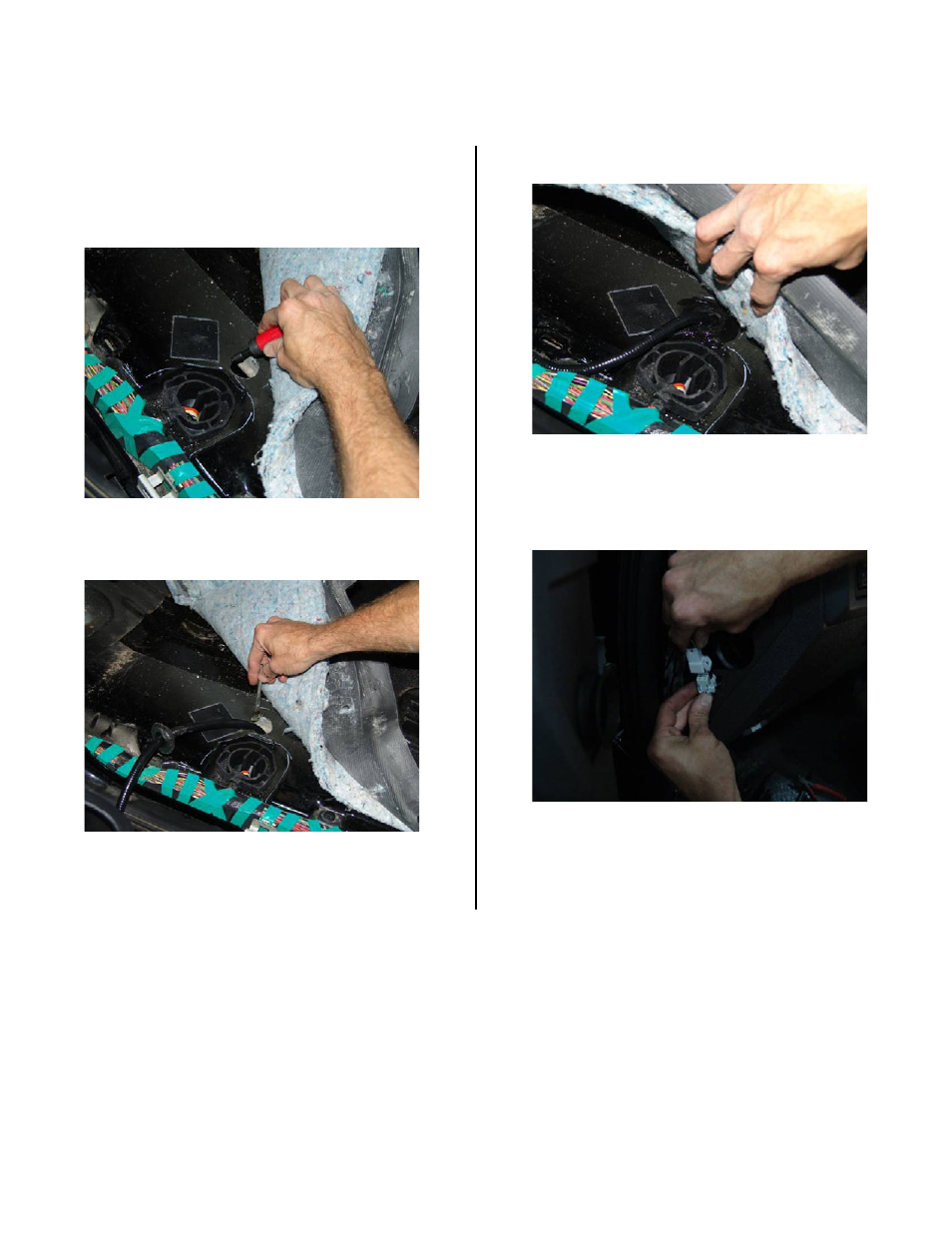

Figure 41
60. Apply supplied Z-tech with a small brush (Figure
42).
Figure 42
61. Route the supplied chassis harness through the
drilled opening and seat the grommet from the
inside of vehicle (Figure 43).
Figure 43
62. Route the supplied chassis harness toward the
supplied interior harness and connect together
(Figure 44).
Figure 44
