INSTALLATION INSTRUCTIONS
9520 and 9525 Instructions 9-24-12.doc 10 of 34
Section 6C: Wiring for vehicles with 16-pin mirror connector
32. On the supplied interior harness, near the black 16
pin connector, locate the seven loose wires. (Figure
24)
33. Isolate the red wire with electrical tape as it will not
be used.

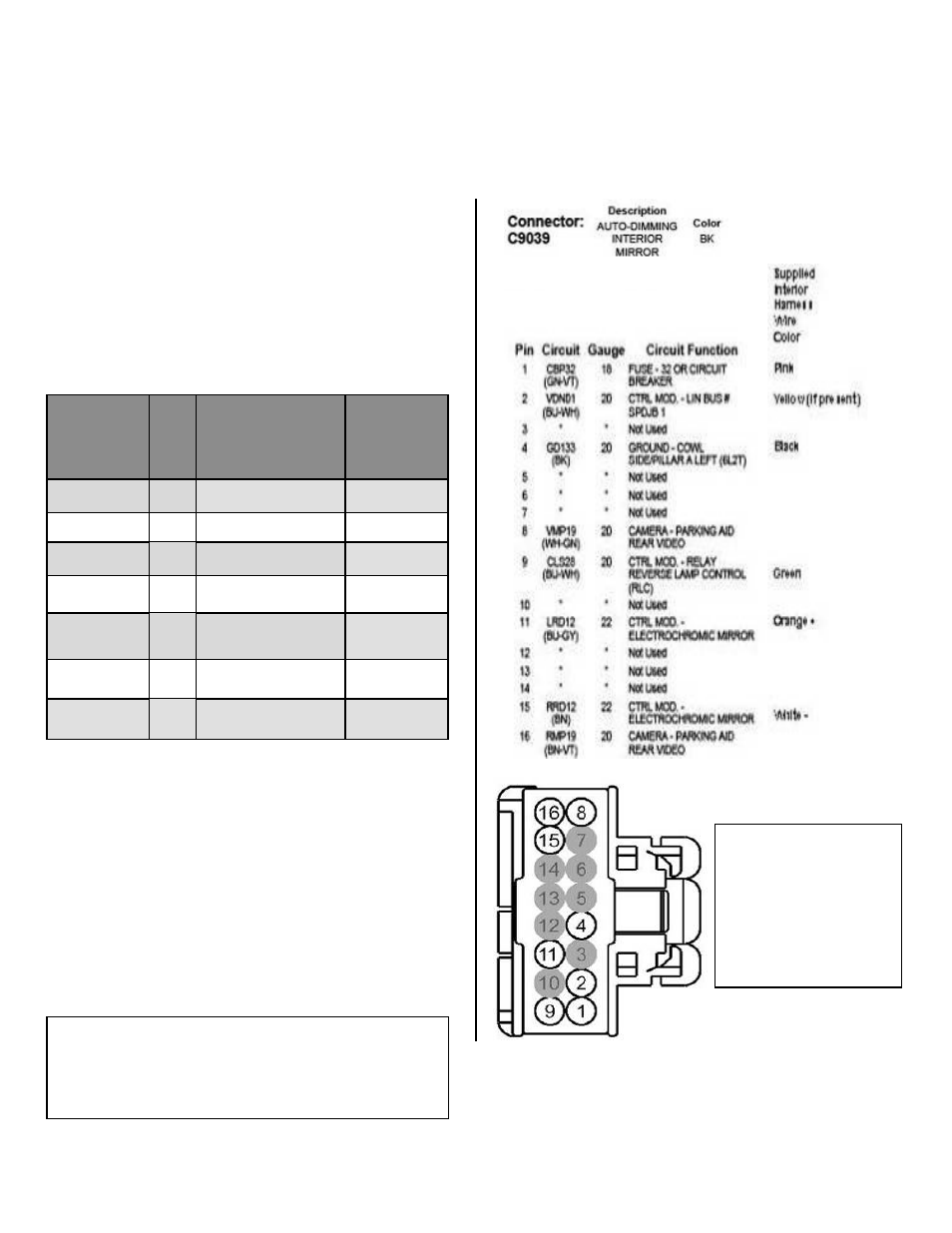

34. Using the Connector C9039 pinout diagram opposite,
splice the remaining six wires to the vehicle mirror
harness wires according to Diagram A2.
Diagram A2
Supplied
Interior
Harness
Wire Color
Po
la
rit
y
Function
Splice to
Wire at
C9039
Location
Pink + Ignition pin 1
Green + Reverse pin 9
Black - Ground pin 4
Yellow
pin 2
(if present)
Red
Not used –
Isolate with
electrical tape
Orange +
Auto Dimming
Mirror
pin 11
White -
Auto Dimming
Mirror
pin 15
35. If you removed the compass circuit board, per
section 6A: On the supplied interior harness, locate
the five loose wires near the white 6-pin connector.
(Figure 25)
36. IMPORTANT: Isolate the red wire with electrical tape
as it will not be used.
37. Using the Connector C9039 pinout diagram opposite,
splice the remaining four pink, green, black, and
yellow wires to the vehicle mirror harness connector
removed in Step 24 according to Diagram A2.
38. If you did not remove the compass circuit board,
isolate the five loose wires with electrical tape, as
they will not be used.
NOTE: Circuit colors
shown may vary
depending on model
and year. Verify pin
locations and check
circuit for proper
function using a digital
volt-ohm meter.
IMPORTANT: If reverse signal does not exist
in pin 9 of 16-pin mirror C9039 connector (see
diagram below), then follow directions in
Section 7 to connect reverse.
