Troubleshooting the Module and Network
8-9
8.3
Viewing and Clearing Events
The module maintains an event queue that reports the history of its
actions. You can view the event queue using an LCD OIM or
VS Utilities software.
To View and Clear Events Using an LCD OIM
Use the procedure shown in figures 8.2 and 8.3 to access the event
queue using the LCD OIM. Note that you must have the RECOMM-
ENET module as the selected device to access the event queue.

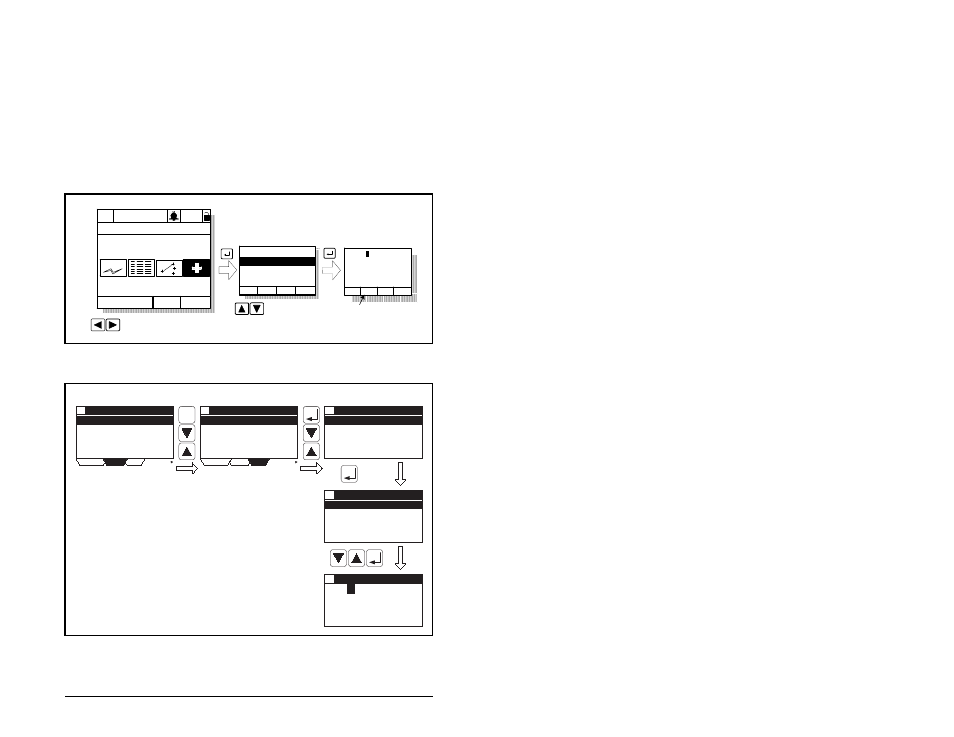

Figure 8.1 – Viewing and Clearing Events Using an LCD OIM on a SP600 or LiquiFlo
2.0 Drive
Figure 8.2 – Viewing and Clearing Events Using an LCD OIM on a GV6000 Drive
Diagnostics:
Device Version
OIM Version
View Event Queue
P5: RECOMM-ENET
Stopped Auto
Main Menu
Diagnostics
EvtQ# : E#xxxxx
Online @ 500kbps
1
Clrqu
Highlight Diagnostics icon
Highlight item
Monitor
Lang
>>
Press F2 key to
clear event queue
SEL
Use the SEL key to select the DIAG tab and then the Up/Down arrow keys
to highlight "Events". Press the ENTER key and then the Up/Down arrow
keys to highlight "View Event Queue". Press the ENTER key to view the
list of events in the event queue. Use the UP/DOWN arrow keys to
highlight the event of interest and then the ENTER key to see details
about that event.
Parameters
Linear List
SEL
PARAM
DIAG
STARTUP
Groups
Changed Params
P5
Diagnostics
Device Select
SEL
PARAM
DIAG
STARTUP
Events
Device Name
Device Version
Device Items
P5
Events
Clear Events
View Event Queue
Clear Event Queue
P5
View Event Queue
E02:Control Enabled
E01:EN Link Up
E03:Type 0 Login
P5
E04:Online @ 500kbps
E05:Normal Startup
Event Queue 1
EN Link Up
EvtQ#
Accum:
P5
4:27:43.590
1
E# 37
