Rockwell Automation RECOMM-ENET EtherNet/IP Communications Module User Manual
Page 29

Configuring the EtherNet/IP Module
4-3
4.2.2 GV6000

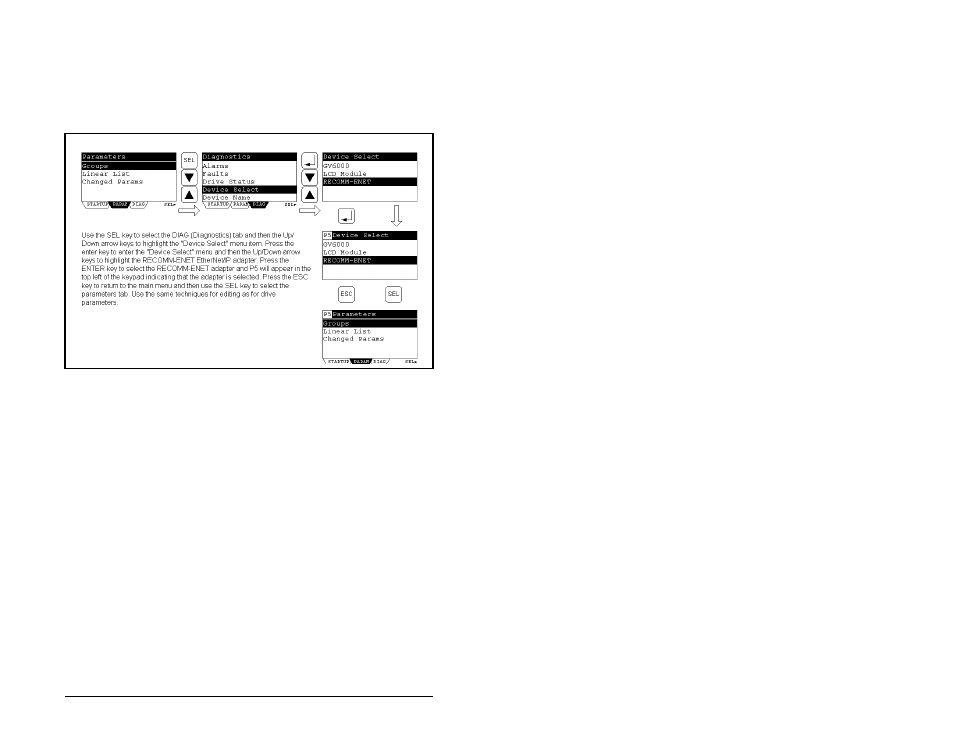

Use the procedure in figure 4.2 to access the parameters on the
EtherNet/IP module using the LCD OIM. If you are unfamiliar with
the operation of the LCD OIM, refer to the Reliance Electric Drive
User Manual for more information.
4.3
Using BOOTP to Set the IP Address,
Subnet Mask, and Gateway Address
By default, the module is configured so that you can set its IP
address, subnet mask, and gateway address by using a BOOTP
utility. You can select from a variety of BOOTP utilities. These
instructions use Rockwell’s BOOTP Server (version 2.1), a stand-
alone program that incorporates the functionality of standard
BOOTP utilities with a graphical interface. It is available from
http://www.reliance.com. Refer to the Readme file and online Help
for detailed directions and information.
Note: If desired, you can disable BOOTP and configure the IP
address, subnet mask, and gateway address by setting parameters.
For details, refer to section 4.4.
To configure the module using BOOTP Server, use the following
procedure:
Step 1.
On the label of the module, locate and note the hardware
address of the module.
Figure 4.2 – Acessing the Module Parameters using the LCD OIM (GV6000)
