Viewing the Module’s Web Pages
9-5
9.2
Process Display Pop-Up Windows
The Process Display pop-up window dynamically shows a host’s
information. To view this window, click the “Process Display” link in
the navigation window.

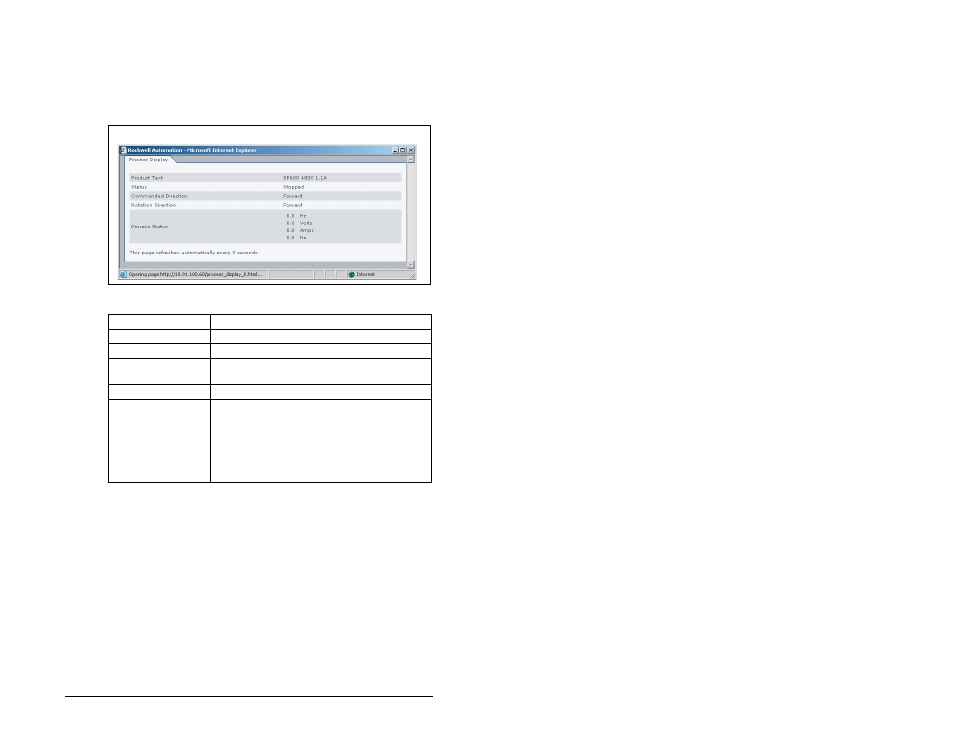

Figure 9.2 – Process Display Pop-up Window
Information
Description
Product Text
Description of Host
Status
Status of Host
Commanded
Direction
Commanded direction of Host
Rotation Direction
Rotation direction of Host
Process Status
Line 1 - desired parameter of host and its
dyanmic value
1
Line 2 - desired parameter of host and its
dyanmic value
2
Line 3 - desired parameter of host and its
dyanmic value
2
1. The parameter whose value is shown on this line is the feedback value
selected using a drive parameter. For details, see the drive User Manual.
2. The parameter whose value is shown on this line can be set using the
OIM. For details, see the drive User Manual.
