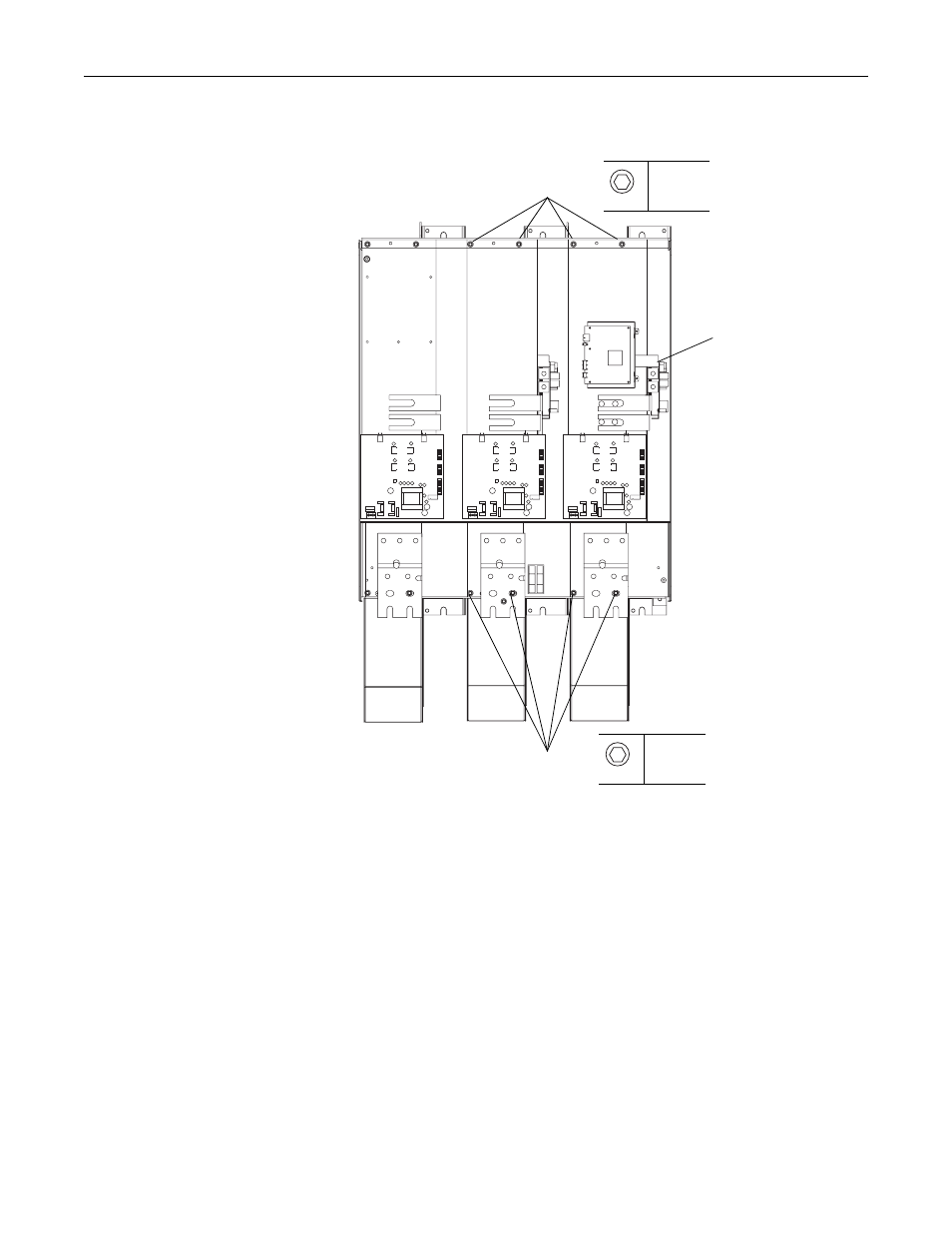

19. Remove the four M10 hexagonal screws that secure each of the V and W

phase modules to the drive frame.

Remove screws

Remove screws

HEX8
20 N•m
(177 lb•in)

HEX8
20 N•m
(177 lb•in)

Rectifier circuit board
(on side of phase module)
