Rockwell Automation 20D PowerFlex 700S and 700H Frame 10...12 Rectifier Module Replacement Kit User Manual
Page 17
17

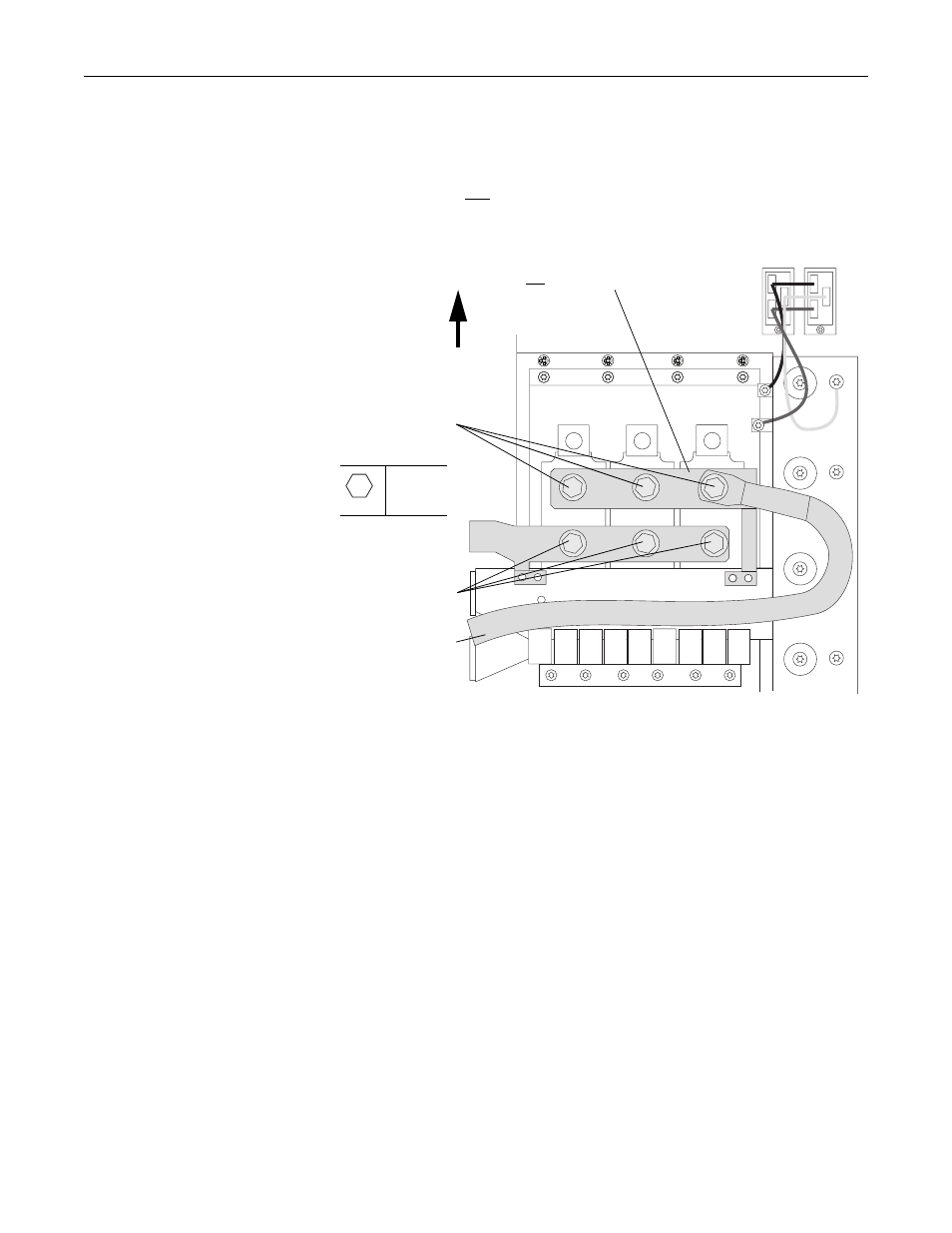

7. Remove the six M10x20 bolts and washers that secure the DC- and DC+
rectifier bus bars and power cable to the SCRs on the rectifier module and
remove the bus bars and power cable.
Important: Do Not reuse the existing DC+ rectifier bus bar.
Remove bolts
17 mm
14 N•m
(124 lb•in)
Remove bolts
Do Not reuse existing DC+ bus bar
Top of Power
Structure
Power cable
