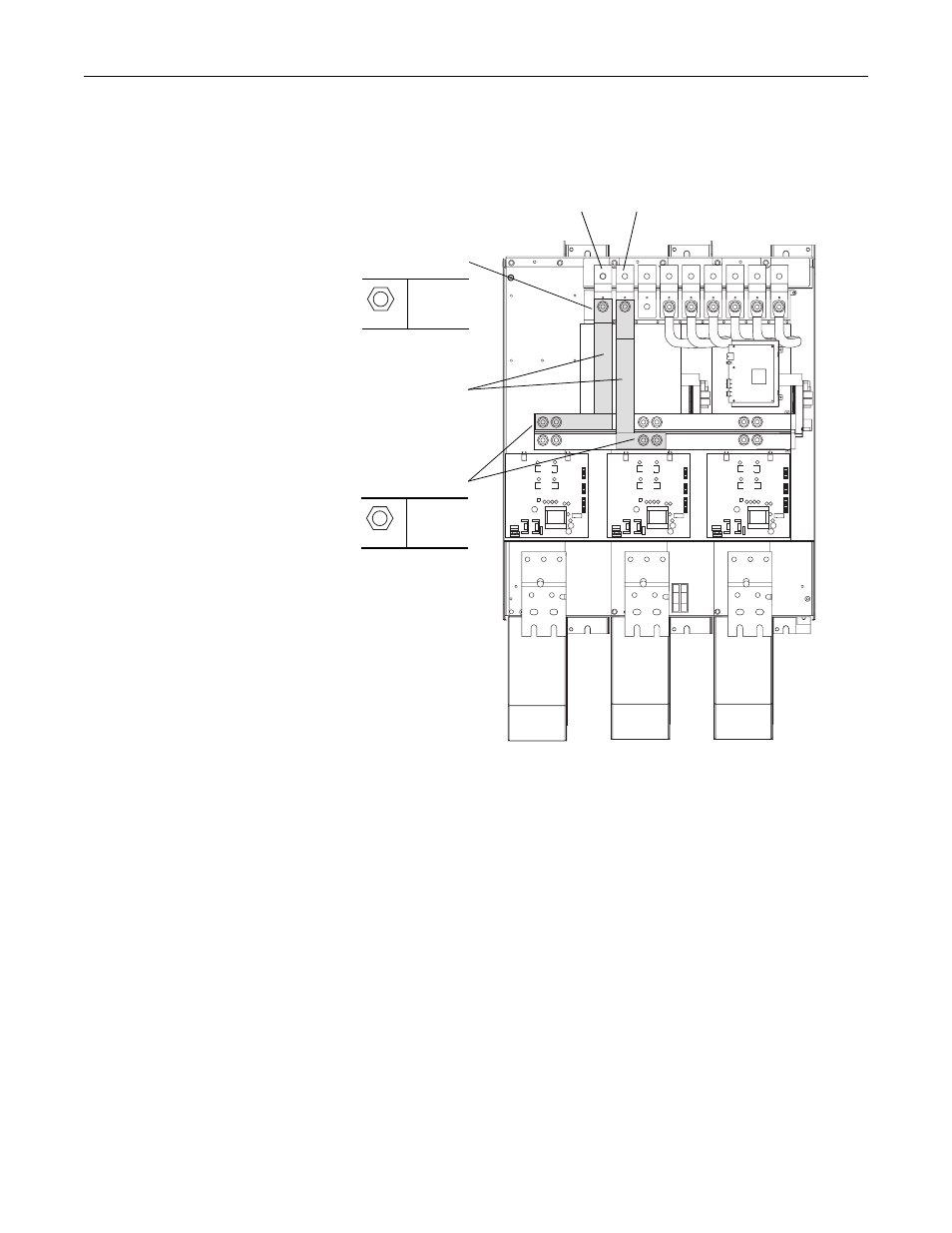

13. For drives with DC bus supply terminals, remove the six M10 nuts and
washers that secure the bus bars that connect the DC– and DC+ terminals to
the horizontal bus bars and remove the bus bars.
17 mm
40 N•m
(354 lb•in)
Remove nuts
17 mm
40 N•m
(354 lb•in)
Remove nuts
DC- DC+
Remove bus bars
Note: Power cables not
shown for clarity only.
