2-23
Starting Up the Drive for Vector Regulation

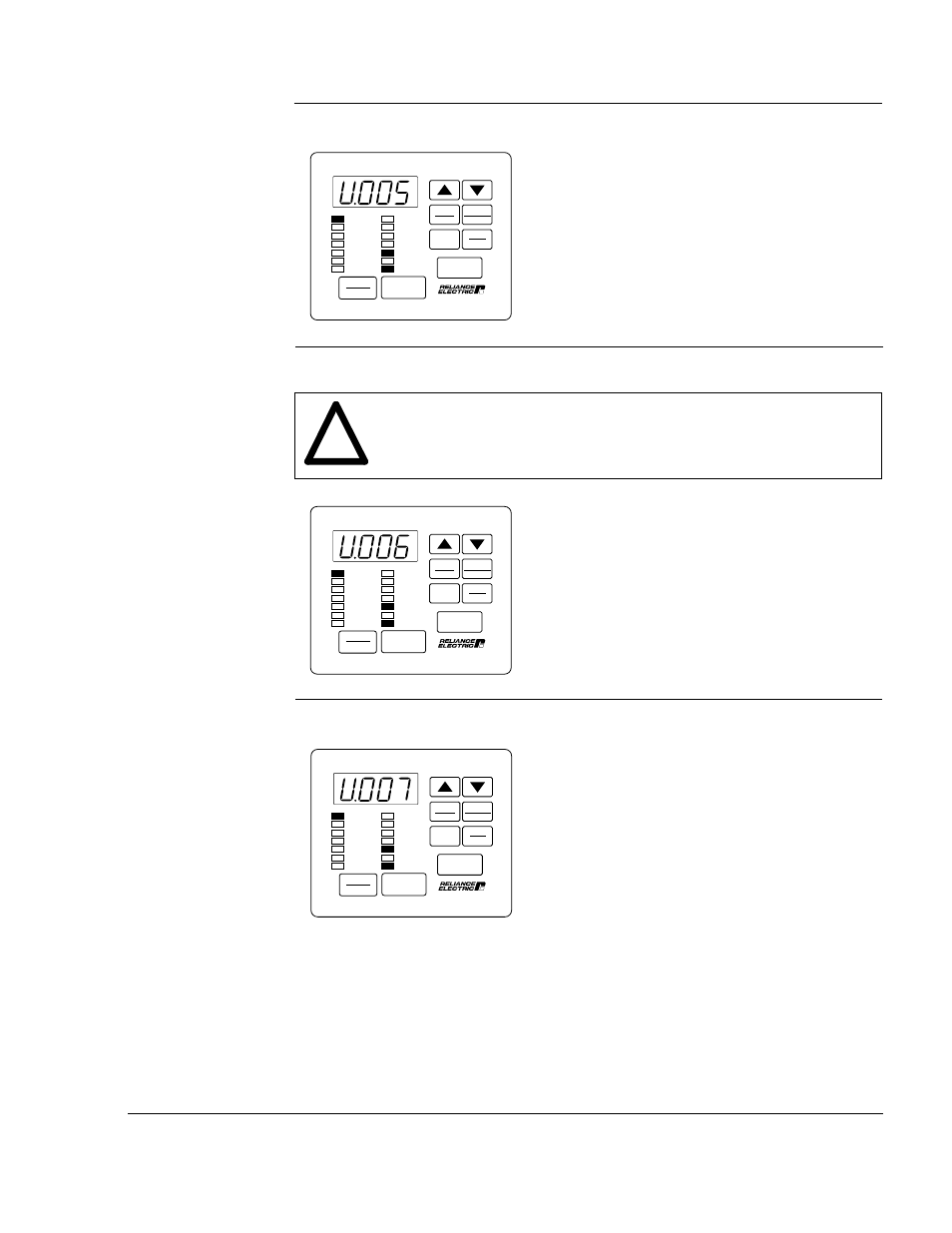

Step 6.26 Press the ENTER key to save the changed value.
After pressing ENTER, the same parameter
is displayed. You can now move to the next
parameter.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.27 Press the £ key to display U.006, Motor Magnetizing Current.
ATTENTION: If this parameter is set incorrectly, overcurrent or
excess heating of the motor could result. Failure to observe this
precaution could result in damage to, or destruction of, the
equipment.
This parameter is the percent of magnetizing
current with respect to motor rated amps.
Note that when the vector regulation
self-tuning procedure is performed (Step 8),
the value of this parameter is automatically
calculated. You do not need to enter a value
now.
!
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
Step 6.28 Press the £ key to display U.007, Motor Nameplate Volts.
This parameter is the Motor Nameplate Volts
and is taken from the motor nameplate.
AUTO
MAN
Forward
Reverse
PROGRAM
RUN
JOG
STOP
RESET
START
ENTER
SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM
