1-8

GV3000/SE 230 VAC Drive, Software Reference Version 6.04

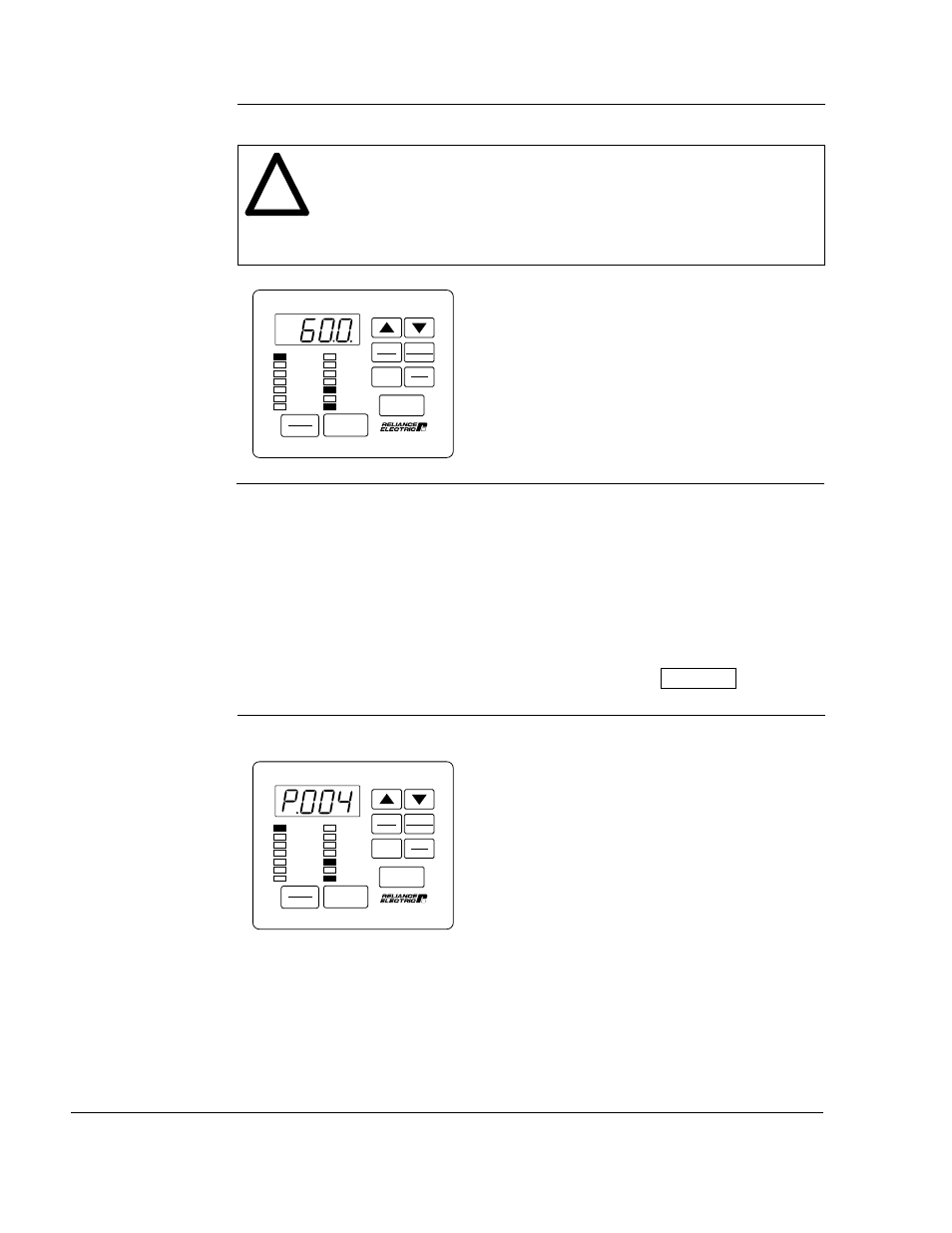

Step 3.15 Press the ENTER key to display the default setting of P.004.

ATTENTION: The user is responsible for ensuring that driven machinery,
all drive-train mechanisms, and application material are capable of
safe operation at the maximum operating speed of the drive. In V/Hz
regulation, overfrequency protection in the drive is provided by means
of H.022. Failure to observe this precaution could result in bodily
injury.

!

AUTO

MAN

Forward
Reverse

PROGRAM

RUN
JOG

STOP

RESET

START

ENTER

SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password

RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM

This shows that the default setting for
Maximum Speed is 60.0 Hz.

Step 3.16 Press the

£

key to increase maximum speed or the

¥

key to decrease

maximum speed.

The adjustment range is:

15.0 Hz to the value set for H.022
(Overfrequency Limit).

The maximum value is 210 Hz.

VALUE ENTERED:

Step 3.17 Press the ENTER key to save the changed value.

AUTO

MAN

Forward
Reverse

PROGRAM

RUN
JOG

STOP

RESET

START

ENTER

SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password

RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM

After pressing ENTER, the same parameter
number is displayed. You can now go to the
next parameter.
