GV3000/SE 230 VAC Drive, Software Reference Version 6.04

5.3

Accessing, Reading, and Clearing the Faults in the Error
Log

The following procedure shows how to access and clear the error log. Note that you
cannot clear a single entry from the error log. The entire log, including all the fault
codes and the day and time stamp of each fault, will be cleared simultaneously
using this procedure.

Table 5.2 - List of Fault Codes (Continued)

Fault

Description

Communication loss
between Regulator/
PC/OIM

Spurious host PC
comm interrupt

Asymmetrical bus
charge

Code

SrL

UAr

UbS

Fault Cause

Serial port communication cable, PC or
OIM communication port setup.

Regulator board failure.

Bad Power Module.

Corrective Action

Check connection cable and
communication port setup.

Replace Regulator board.

Contact Reliance.

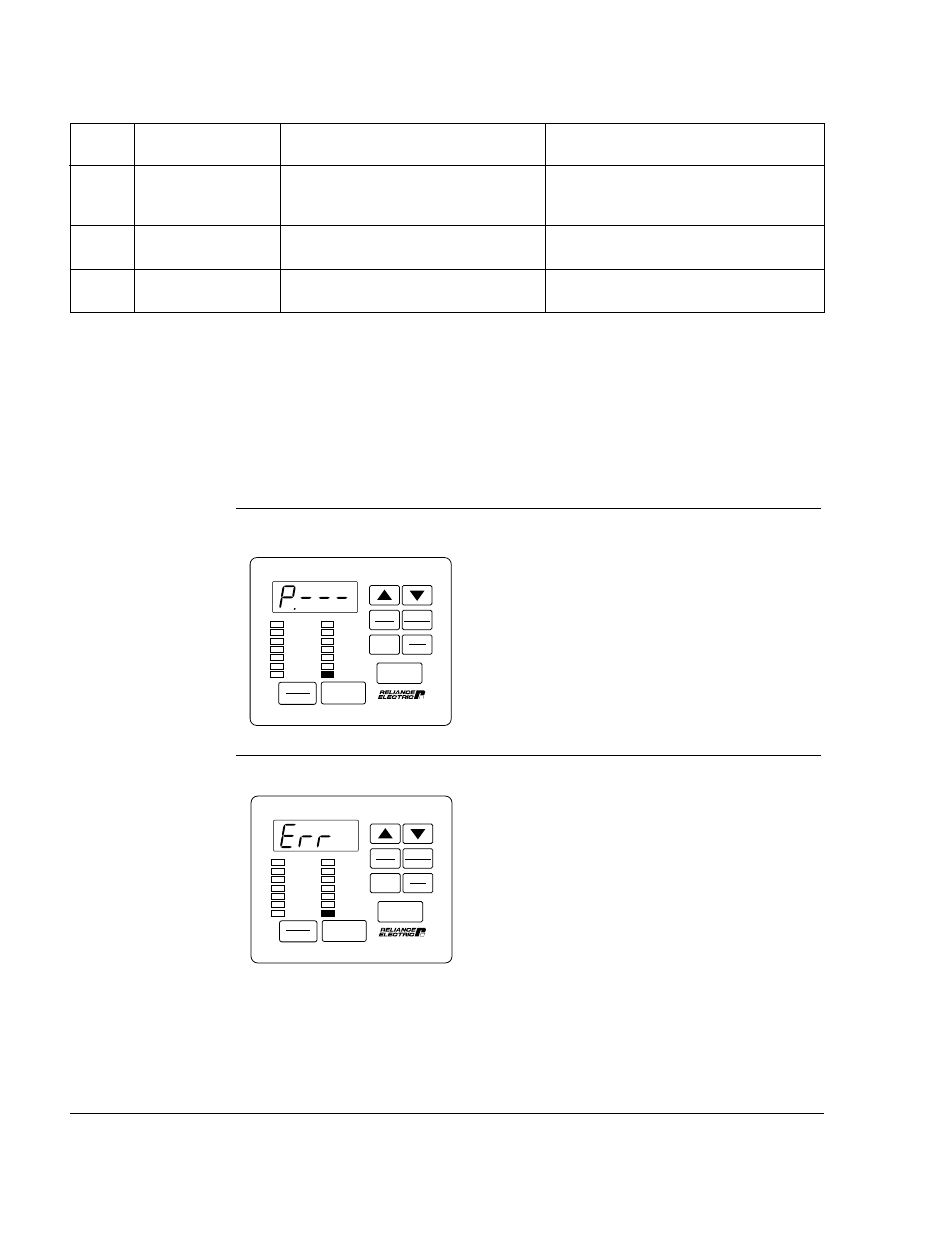

Step 1. Press the PROGRAM key.

The First Menu General parameters are
displayed. The PROGRAM LED will turn on.

AUTO

MAN

Forward
Reverse

PROGRAM

RUN
JOG

STOP

RESET

START

ENTER

SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password

RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM

Step 2. Press the

key until Err is displayed.
