2-16

GV3000/SE 230 VAC Drive, Software Reference Version 6.04

Step 6.5 Press the

key to increase the value.

Important: If you are going to change the value for this parameter, see the

description in Chapter 4.

The adjustment options are:

0 = Speed loop output (default setting)
1 = Terminal strip analog input
2 = Option port (network torque reference

3 = Selected speed reference

VALUE ENTERED:

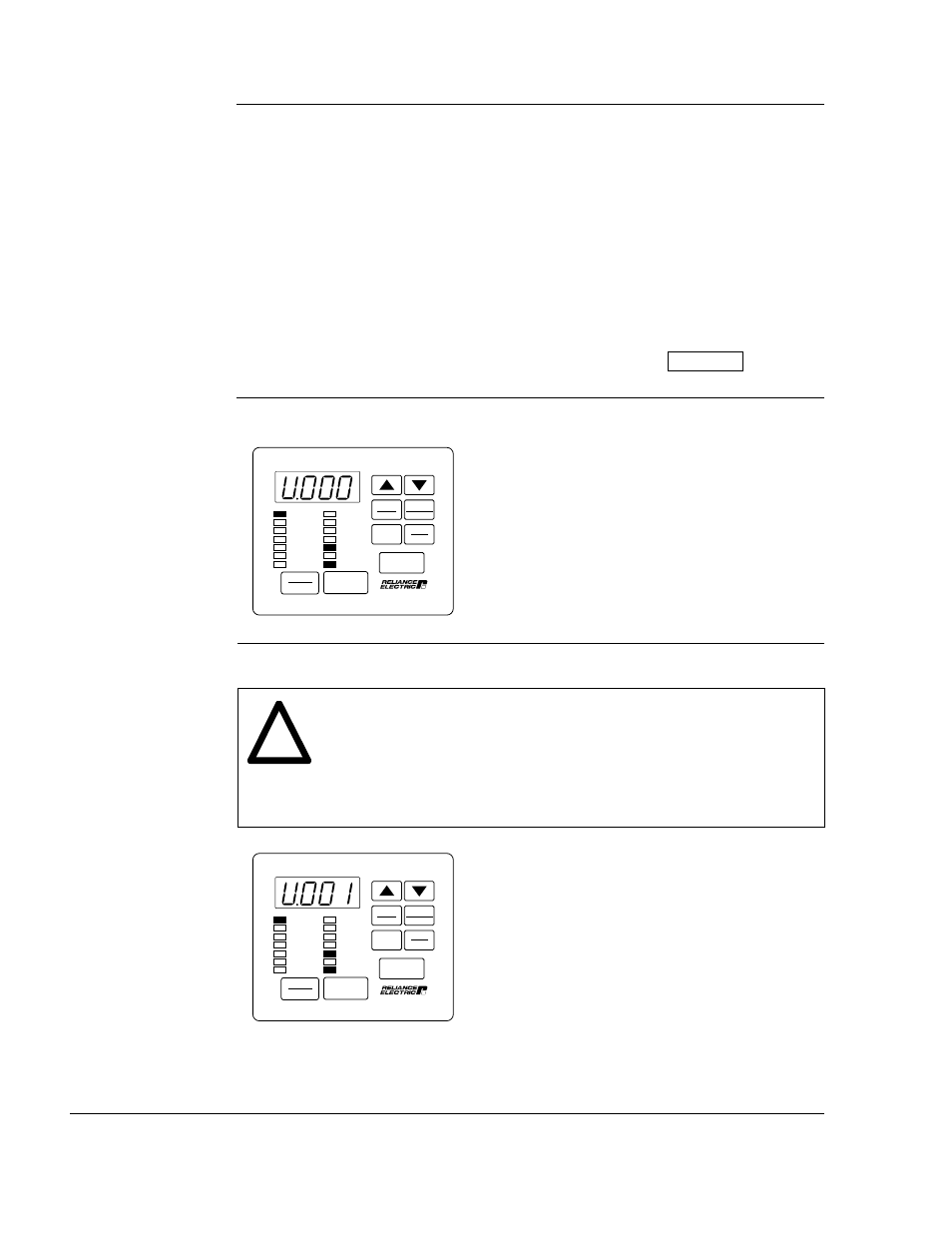

Step 6.6 Press the ENTER key to save the displayed value

After pressing ENTER, the same parameter
number is displayed. You can now go to the
next parameter.

AUTO

MAN

Forward
Reverse

PROGRAM

RUN
JOG

STOP

RESET

START

ENTER

SPEED
VOLTS
AMPS
Hz
Kw
TORQUE
Password

RUNNING
REMOTE
JOG
AUTO
FORWARD
REVERSE
PROGRAM

Step 6.7 Press the

key to display U.001, Encoder PPR.

ATTENTION: The Setting of parameters U.001 (Encoder PPR), U.002
(Motor Poles), U.003 (Motor Nameplate Base Frequency), U.005
(Motor Nameplate RPM), and U.017 (Motor Top Speed) determines
the motor maximum speed. These parameters must be set by a
qualified person who understands the significance of setting them
accurately. Failure to observe this precaution could result in bodily
injury.

This parameter selects the number of pulses
per revolution (PPR) of the encoder or
selects sensorless vector control if an
encoder is not used.

For flux vector control (FVC), when the self-
tuning procedure (Step 8) is performed, the
value of this parameter is automatically set;
however, if the encoder PPR is known, it
should be entered now.
